Product Details:
|
| Deaign: | EN837-3 | Size: | 63mm |
|---|---|---|---|
| Mount: | Wall Mount | Pressure Range: | -10~80 CmH2O Or Customized |
| Case Material: | SUS 304 | Lens Material: | Safety Glass |
| Bellows: | Brass | Movement: | SUS 304 |
| Dial: | Aluminum | Accuracy: | 2.5, 1.6 |
| High Light: | 316 SS u clamp pressure gauge,80 cmH2O u clamp pressure gauge,EN837-3 capsule vacuum gauge |
||

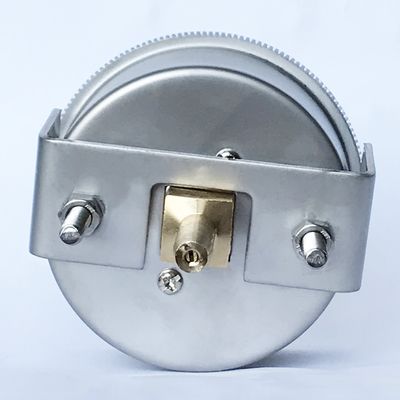

2.5" Low Pressure Gauge -10~80 cmH2O U-Clamp Mount Bellows Manometer 316 SS Case Capsule Pressure Gauge
Description
Low pressure gauges have a very sensitive mechanism consisting of two corrugated discs, each made of brass or stainless steel, that are fused together to create a circular capsule. The slightest changes in pressure cause the capsule to expand or contract; a pinion movement mechanism transfers this motion to the indicator.
Applications
Low pressure gauge for applications in a controlled environment
Ideal for measuring pressure, vacuum in medical, environmental, and laboratory applications for content and filter monitoring
For gaseous, dry and non-aggresive media
Special features
Front zero adjustment
Special connections on request
Scale ranges from 0/10 InWC (25 mbar)
|
Design |
EN 837-3 |
|
Nominal size |
63mm |
|
Accuracy |
± 1.6 of full scale value |
|
Pressure range |
-10~80 cmH2O (customized) |
|
Standard ranges |
2”: 0...25 InWC (60 mbar) to 0...250 InWC (600 mbar) 2½”: 0...10 InWC (25 mbar) to 0...250 InWC (600 mbar) or all other equivalent vacuum or combined pressure and vacuum ranges |
|
Standard scales |
InH2O/mmH2O oz/sq.in/mmH2O oz/sq.in/InH2O PSI |
|
Pressure limitation |
Steady: full scale value |
|
Permissible temperature |
Ambient: -20 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ± 0.5 %/10 K of the span |
|
Process connection |
SUS 316 |
|
Pressure element |
Brass |
|
Movement |
Brass |
|
Dial |
Aluminium, white, black lettering |
|
Pointer |
Aluminium |
|
Case |
Black steel, painted steel |
|
Window |
Safety glass |
|
Zero adjustment |
At the front |
|
Options |
Other process connection |
Dimensions
|
Size |
Dimension in inches |
Weight in LBS |
|||||||
|
a |
b |
b1 |
b2 |
D |
G |
h |
SW |
||
|
2” |
- |
- |
1.10 |
1.89 |
50 |
1/4”NPT |
- |
0.55 |
0.20 |
|
2½” |
0.37 |
1.57 |
1.44 |
2.19 |
63 |
1/4”NPT |
2.00 |
0.55 |
0.44 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
