Product Details:
|
| Deaign: | EN837-3 | Size: | 63mm |
|---|---|---|---|
| Mount: | Radial | Pressure Range: | -30~0 CmHg Or Customized |
| Case Material: | SUS 304 | Lens Material: | Acrylic |
| Bellows: | SUS 316 | Movement: | SUS 304 |
| Dial: | Aluminum | Accuracy: | 2.5, 1.6 |
| High Light: | 0 cmHg Low Pressure Gauge,316 SS Low Pressure Gauge,Radial Mount ss pressure gauge |
||

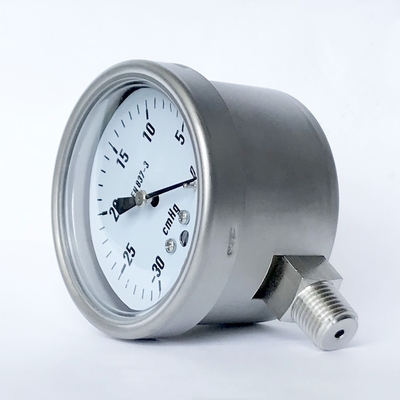

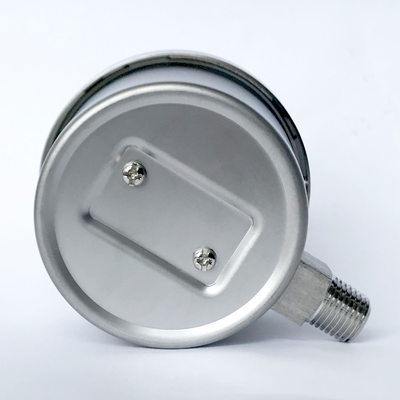

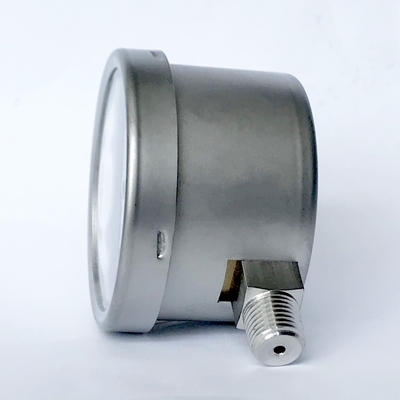

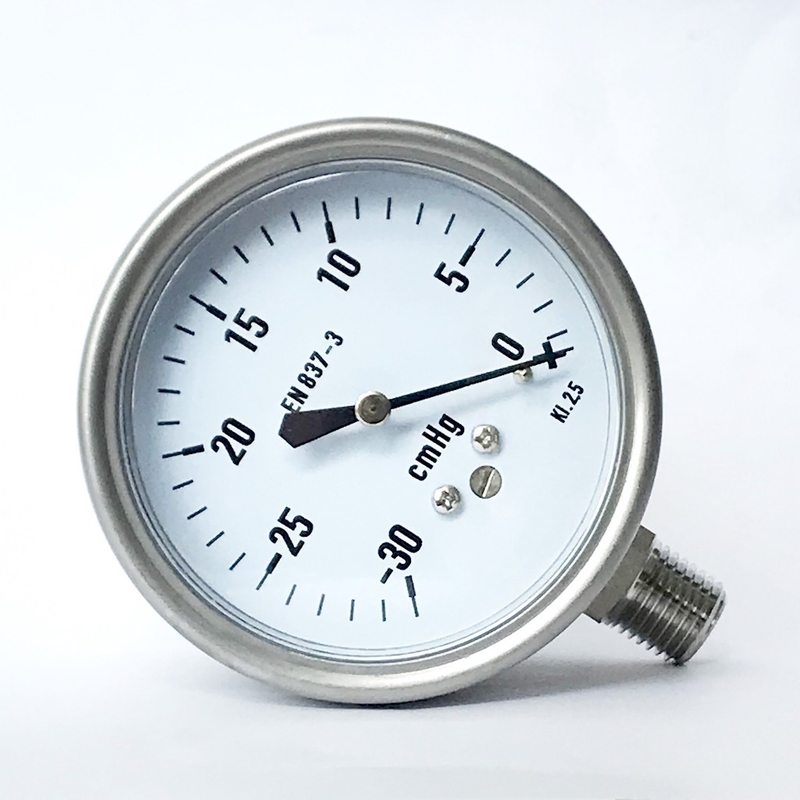

-30 CmHg Capsule Low Pressure Gauge 316 SS Bellows Manometer Radial Mount
Description
The capsule pressure gauge is 10 times overpressure safe as well as full vacuum safe. A special relieve valve is activated in positive or negative overpressure situations, protecting the capsule element.
With a capsule design, you can have a clockwise pointer travel while measuring vacuum (with a Bourdon tube gauge you can only move counterclockwise). In these cases, the dial face must indicate “VACUUM.”
Applications
Low pressure gauge for applications in a controlled environment
Ideal for measuring pressure, vacuum in medical, environmental, and laboratory applications for content and filter monitoring
For gaseous, dry and non-aggresive media
Special features
Front zero adjustment
Special connections on request
Scale ranges from 0/10 InWC (25 mbar)
|
Design |
EN 837-3 |
|
Nominal size |
63mm |
|
Accuracy |
± 1.6 of full scale value |
| Pressure range | -30~0 cmHg (customized) |
| Standard ranges |
2”: 0...25 InWC (60 mbar) to 0...250 InWC (600 mbar) 2½”: 0...10 InWC (25 mbar) to 0...250 InWC (600 mbar) or all other equivalent vacuum or combined pressure and vacuum ranges |
| Standard scales |
InH2O/mmH2O oz/sq.in/mmH2O oz/sq.in/InH2O PSI |
|
Pressure limitation |
Steady: full scale value |
|
Permissible temperature |
Ambient: -20 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ± 0.5 %/10 K of the span |
|
Process connection |
SUS 316 |
|
Pressure element |
SUS 316 |
| Movement | SUS 304 |
| Dial | Aluminium, white, black lettering |
| Pointer | Aluminium |
| Case | Black steel, painted steel |
| Window | Acrylic, glass |
| Zero adjustment | At the front |
| Options |
Other process connection |
Dimensions
| Size | Dimension in inches | Weight in LBS | |||||||
| a | b | b1 | b2 | D | G | h | SW | ||
| 2” | - | - | 1.10 | 1.89 | 50 | 1/4”NPT | - | 0.55 | 0.20 |
| 2½” | 0.37 | 1.57 | 1.44 | 2.19 | 63 | 1/4”NPT | 2.00 | 0.55 | 0.44 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
