Product Details:
|
| Deaign: | EN837-1 | Size: | 40mm |
|---|---|---|---|
| Mount: | Center Back | Pressure Range: | 15 Psi Or Customized |
| Case Material: | SS 304 | Lens Material: | Glass |
| Bourton Tube: | Stainless Steel | Movement: | Stainless Steel |
| Dial: | Aluminum | Liquid: | Glycerine |
| High Light: | 304 ss pressure gauge,40mm ss pressure gauge,15 psi Glycerine Filled Manometer |
||

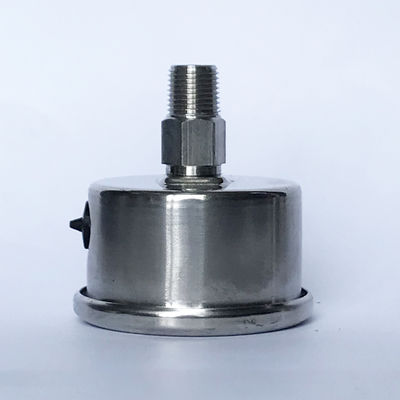

40mm All Stainless Steel Pressure Gauge 15 psi Glycerine Filled Manometer 1/4" NPT
Description
This high-quality Bourdon tube pressure gauge has been designed especially for the process industry. The use of high-quality stainless steel materials and the robust design are geared to applications in the chemical and process engineering industries. Thus the instrument is suitable for liquid and gaseous media, also in aggressive environments.
Applications
For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics
Machine building and general plant construction
Special features
Excellent load cycle stability and shock resistance
Design per EN 837-1
Completely from stainless steel
Scale ranges up to 0 ... 1600 bar
|
Design |
EN 837-1 |
|
Nominal size |
40mm |
|
Accuracy |
1.6, 2.5 |
| Pressure range | 15 psi (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
| Medium temperature |
Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F] Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F] Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F] |
|
Ambiet temperature |
Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F] Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F] Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F] |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Stainless steel, SUS 304, SUS 316 |
|
Pressure element |
Stainless steel, C-type bourdon tube |
| Movement | SS 304 |
| Dial | Aluminium, white, with pointer stop pin Black lettering |
| Pointer | Aluminium |
| Case | SS 304 |
| Ring | Rolling ring, stainless steel |
| Window | Plastic, glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection Surface mounting flange Mounting bracket |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
