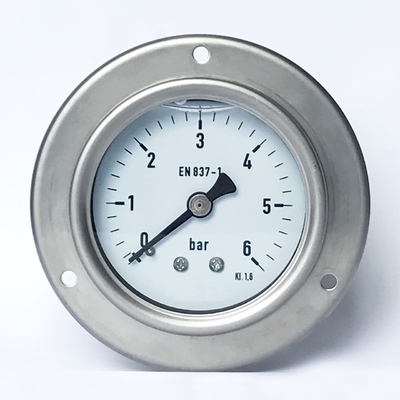

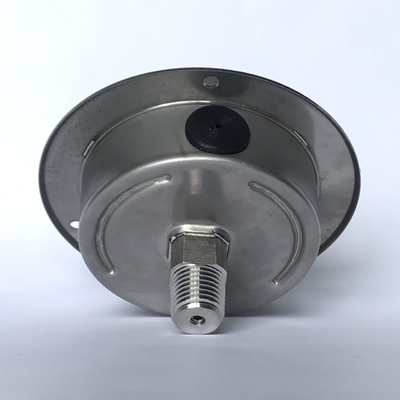

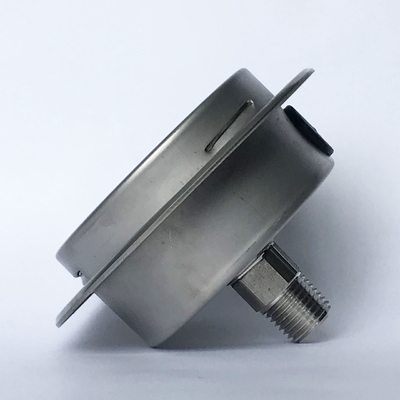

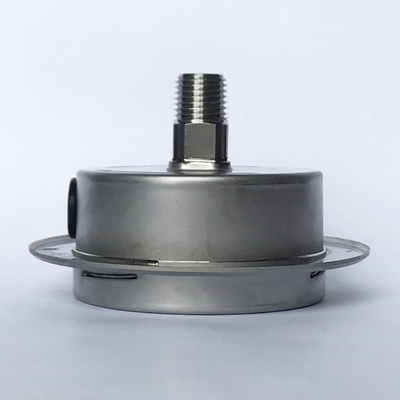

G1/4 SS 304 6 Bar Pressure Gauge 63mm KL 1.6 Silicone Oil Filled Manometer

Certification
China Wesen Technologies (Shanghai) Co., Ltd. certification
China Wesen Technologies (Shanghai) Co., Ltd. certification
I'm Online Chat Now

G1/4 SS 304 6 Bar Pressure Gauge 63mm KL 1.6 Silicone Oil Filled Manometer

G1/4 SS 304 6 Bar Pressure Gauge 63mm KL 1.6 Silicone Oil Filled Manometer
G1/4 SS 304 6 Bar Pressure Gauge 63mm KL 1.6 Silicone Oil Filled Manometer G1/4 SS 304 6 Bar Pressure Gauge 63mm KL 1.6 Silicone Oil Filled Manometer G1/4 SS 304 6 Bar Pressure Gauge 63mm KL 1.6 Silicone Oil Filled Manometer G1/4 SS 304 6 Bar Pressure Gauge 63mm KL 1.6 Silicone Oil Filled Manometer

Large Image :  G1/4 SS 304 6 Bar Pressure Gauge 63mm KL 1.6 Silicone Oil Filled Manometer

Product Details:
Place of Origin: China
Brand Name: WESEN or Customized
Certification: CE, ISO
Model Number: M02.02.063.F
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~4 Weeks
Payment Terms: T/T
Supply Ability: 20000 Pieces per Month

G1/4 SS 304 6 Bar Pressure Gauge 63mm KL 1.6 Silicone Oil Filled Manometer

Description
Deaign: EN837-1 Size: 63mm
Connection: Axial Pressure Range: 6 Bar Or Customized
Case Material: SS 304 Lens Material: PC Glass
Bourton Tube: Stainless Steel Movement: Stainless Steel
Mount: Flange 3 Holes Liquid: Siliicone Oil
High Light:

G1/4 6 bar pressure gauge

,

63mm 6 bar pressure gauge

,

KL 1.6 Silicone oil filled manometer

63mm 2.5" All Stainless Steel Pressure Gauge 6 bar KL. 1.6 Silicone Oil Filled Manometer G1/4"



Description

The model M02 pressure gauges are completely manufactured from stainless steel and are therefore particularly suited for applications in the process industry. They are based upon the proven bourdon tube measuring system. On pressurisation, the expansion of the bourdon tube, proportional to the incident pressure, is transmitted to the movement and indicated.



Applications

For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments

Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics

Machine building and general plant construction



Special features

Excellent load cycle stability and shock resistance

Design per EN 837-1

Completely from stainless steel

Scale ranges up to 0 ... 1600 bar



Specifications

Design

EN 837-1

Nominal size

50mm

Accuracy

1.6, 1.0
Pressure range -14 psi (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value

Medium temperature

Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F]

Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F]

Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F]

Ambiet temperature

Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F]

Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F]

Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F]

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

Stainless steel, SUS 304, SUS 316

Pressure element

SS 316L, C-type bourdon tube
Movement SS 304
Dial Aluminium, colorful, with pointer stop pin
Black lettering
Pointer Aluminium
Case SS 304
Ring Rolling ring, stainless steel
Window PC, glass
Unit

bar, psi, kg/cm2, kPa, MPa

Thread G, BSP, PT, BSPT, NPT
Options Other process connection
Surface mounting flange
Mounting bracket



Ordering information

Model / Dial size / Pressure Range / Process connection / Options



G1/4 SS 304 6 Bar Pressure Gauge 63mm KL 1.6 Silicone Oil Filled Manometer 0
