Product Details:
|
| Deaign: | EN837-1 | Size: | 80mm |
|---|---|---|---|
| Connection: | Radial | Pressure Range: | 160 PSI Or Customized |
| Case Material: | SS 316 | Lens Material: | PC Glass |
| Bourton Tube: | SS 316 | Movement: | SS 304 |
| Mount: | Thread | Liquid: | Siliicone Oil |
| High Light: | Hydraulic All Stainless Steel Pressure Gauge,80mm All Stainless Steel Pressure Gauge,160 PSI KL 1.6 oil filled pressure gauge |
||

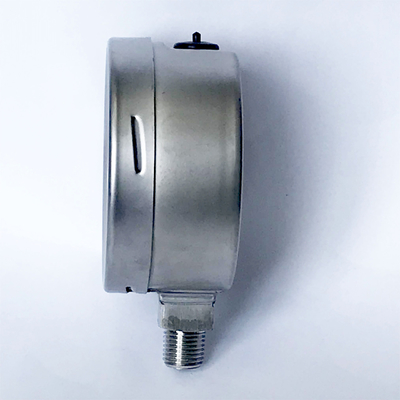

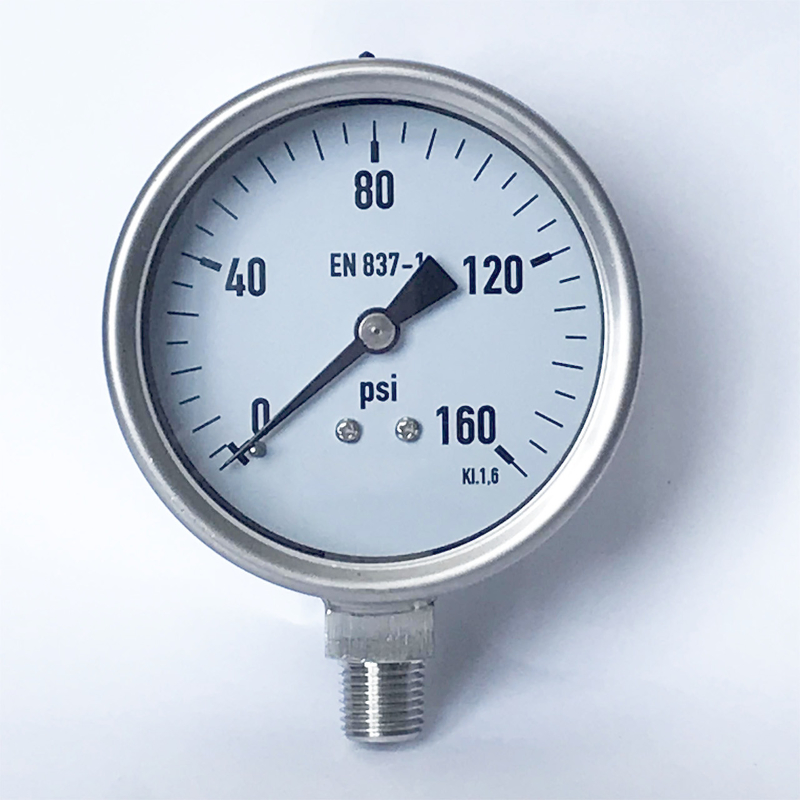

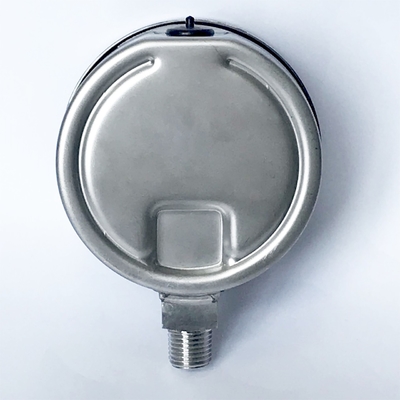

80mm All Stainless Steel Pressure Gauge 160 PSI KL. 1.6 Silicone Oil Filled Manometer for Hydraulic System
Description
M02 series is a premium design pressure gauge with fully stainless steel construction, liquid fillable and with various option used in extreme corrosive & severe environment. M03 series can be incorporate with most accessories such as diaphragm chemical seal, siphon, dampener, etc. to further extend it usages. Commonly, it is applied in process industries, mining, power plants, steel mills, pulp & paper, water & sewage, petrochemical plants, etc..
Applications
For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics
Machine building and general plant construction
Special features
Excellent load cycle stability and shock resistance
Design per EN 837-1
Completely from stainless steel
Scale ranges up to 0 ... 1600 bar
|
Design |
EN 837-1 |
|
Nominal size |
80mm |
|
Accuracy |
1.6, 1.0 |
| Pressure range | 160 psi (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
| Medium temperature |
Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F] Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F] Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F] |
|
Ambiet temperature |
Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F] Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F] Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F] |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Stainless steel, SUS 304, SUS 316 |
|
Pressure element |
SS 316L, C-type bourdon tube |
| Movement | SS 304 |
| Dial | Aluminium, white, with pointer stop pin Black lettering |
| Pointer | Aluminium |
| Case | SS 304 |
| Ring | Bayonet ring, stainless steel |
| Window | PC, glass, safety glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection Surface mounting flange Mounting bracket |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
