40mm 12 bar Manometer Nickel Plated Brass Connection Stainless Steel Case Liquid-filled Pressure Gauge

Certification
China Wesen Technologies (Shanghai) Co., Ltd. certification
China Wesen Technologies (Shanghai) Co., Ltd. certification
I'm Online Chat Now

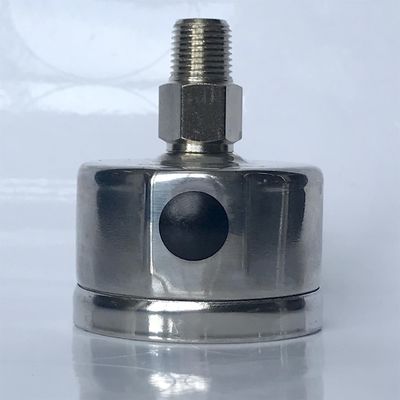

40mm 12 bar Manometer Nickel Plated Brass Connection Stainless Steel Case Liquid-filled Pressure Gauge

40mm 12 bar Manometer Nickel Plated Brass Connection Stainless Steel Case Liquid-filled Pressure Gauge
40mm 12 bar Manometer Nickel Plated Brass Connection Stainless Steel Case Liquid-filled Pressure Gauge 40mm 12 bar Manometer Nickel Plated Brass Connection Stainless Steel Case Liquid-filled Pressure Gauge 40mm 12 bar Manometer Nickel Plated Brass Connection Stainless Steel Case Liquid-filled Pressure Gauge 40mm 12 bar Manometer Nickel Plated Brass Connection Stainless Steel Case Liquid-filled Pressure Gauge

Large Image :  40mm 12 bar Manometer Nickel Plated Brass Connection Stainless Steel Case Liquid-filled Pressure Gauge

Product Details:
Place of Origin: China
Brand Name: WESEN or Customized
Certification: CE, ISO
Model Number: M03.02.040.N
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~4 Weeks
Payment Terms: T/T
Supply Ability: 20000 Pieces per Month

40mm 12 bar Manometer Nickel Plated Brass Connection Stainless Steel Case Liquid-filled Pressure Gauge

Description
Size: 40mm Mount: Bottom, Radial
Pressure Range: 12 Bar Or Customized Case Material: Stainless Steel 304
Lens Material: Tempered Glass, Safety Glass Bourton Tube: SS 316
Movement: SS 304 Dial: Aluminum, Three Scale
Accuracy: 1.6 Liquid: Glycerin

40mm 12 bar Manometer Nickel Plated Brass Connection Stainless Steel Case Liquid-filled Pressure Gauge



Description

Our Industrial Case Pressure Gauge forms part of our carefully selected range of gauges and accessories; a dry fillable multi-purpose gauge, ideally suited for general use across all industrial applications. Features a Stainless Steel case, crimped bezel with plastic window and Brass / Bronze wetted parts. Configurable as either Bottom or Back Entry connection.



Applications

For measuring locations with high dynamic pressure loads and vibrations

For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts

Hydraulics

Compressors, shipbuilding

​​

Special features

Vibration and shock-resistant

Especially robust design

Completely from stainless steel

Scale ranges up to 0 ... 1000 bar



Specifications

Design

EN 837-1

Nominal size

40mm

Accuracy

1.6, 1.0
Pressure range 12 bar (customized)

Pressure limitation

40mm, 50mm, 63mm:

Steady: 3/4 x full scale value  Fluctuating: 2/3 x full scale value  Short time: full scale value

100mm:

Steady: full scale value  Fluctuating: 0.9 x full scale value  Short time: 1.3 x full scale value

Permissible temperature

Ambient: -20 ... +60 °C

Mediium: +60 °C maximum

Ingress protection

IP65

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

Stainless steel, SUS 304, SUS 316

Pressure element

Brass, C-type or helical type
Movement Brass
Dial Aluminium, colorful, without pointer stop pin
Black lettering
Pointer Aluminium
Case Stainless steel
Ring Stainless steel
Window Plastic, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa

Thread G, BSP, PT, BSPT, NPT
Options Other process connection thread
Surface mounting flange
Mounting bracket



Dimensions

40mm 12 bar Manometer Nickel Plated Brass Connection Stainless Steel Case Liquid-filled Pressure Gauge 0

Size Dimensions in mm Weight in kg
a b b2 D1 D2 e f G h SW
50 12 30 55 55 50 5.5 - 1/4" 48 14 0.15
63 13 32 56 68 62 6.5 - 1/4" 54 14 0.21
100 15.5 48 81.5 107 100 8 30 1/2" 87 22 0.80



Ordering information

Model / Dial size / Pressure Range / Process connection / Options



FAQ

Q1. Can I have a sample order for pressure gauge?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?
A: 15 days for Sample preparing, 25 working days for mass production.



Q3. Do you have any MOQ limit for pressure gauge order?
A: Low MOQ, 1pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for pressure gauge?
A: Firstly let us know your requirements or application. Provide Model, Dial size, Pressure range, Process connection, Options.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.



Q6. Is it OK to print my logo on pressure gauge product?
A: Yes. Please inform us formally before our production.



Q7: Do you offer guarantee for the products?
A: Yes, we offer 12 months to our products.



Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.04%.

Secondly, during the guarantee period, we will send new manometers with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
