Product Details:
|
| Size: | 63mm | Mount: | Radial |
|---|---|---|---|
| Pressure Range: | 16 Bar Or Customized | Case Material: | 304 SUS |
| Lens Material: | PC Glass | Bourton Tube: | Brass |
| Movement: | Brass | Accuracy: | 1.6 |
| Liquid: | Silicone Oil, Glycerol | Thread: | 1/4PT, NPT, G, M14*1.5... |

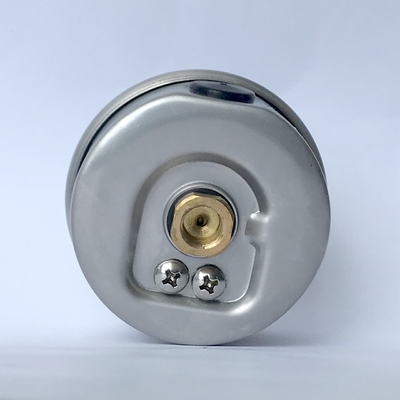

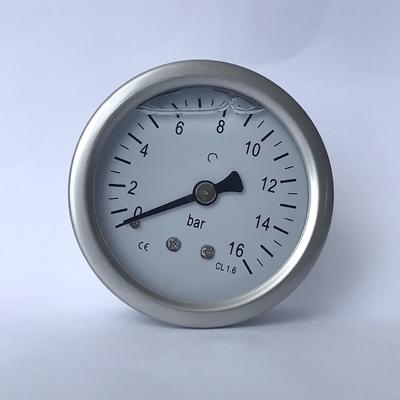

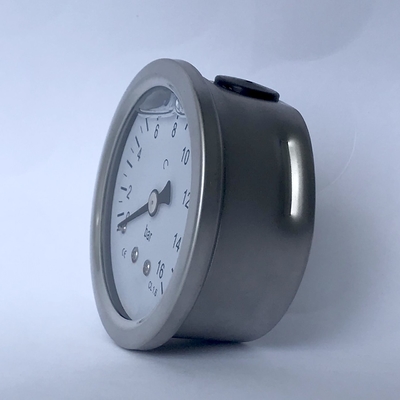

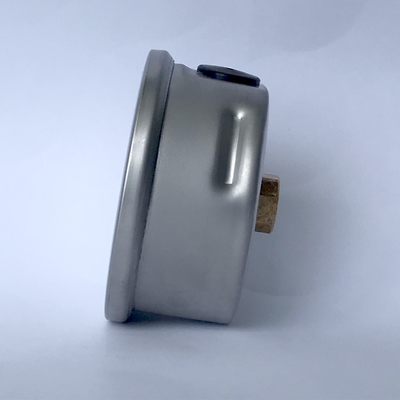

63mm 16 bar Chemical Gas Pressure Manometer Internal Thread Glycerin Liquid Filled Pressure Gauge
Description
Wesen pressure gauges feature a stainless steel case, glass window and a center back mount (CBM) rear connection. With an industry recognized ASME 3/2/3% of span accuracy, Wesen pressure gauges are the industry standard in the commercial gauge line. Available in a variety of sizes, mounting styles and optional configurations, type M03 gauges are suitable for many tough applications including regulators, medical, pneumatic controllers, compressors, valve positioners and pumps.
Applications
For measuring locations with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts
Hydraulics
Compressors, shipbuilding
Special features
Vibration and shock-resistant
Especially robust design
Completely from stainless steel
Scale ranges up to 0 ... 1000 bar
Design | EN 837-1 |
Nominal size | 63mm |
Accuracy | 1.6 |
| Pressure range | 16 bar (customized) |
Pressure limitation | 40mm, 50mm, 63mm: |
| Permissible temperature | Ambient: -20 ... +60 °C |
Ingress protection | IP65 |
Temperature effect | When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
Process connection | Brass |
Pressure element | Brass, C type bourdon tube |
| Movement | Brass |
| Dial | Aluminium, white, with pointer stop pin Black lettering |
| Pointer | Aluminium |
| Case | 304 SS |
| Ring | Rolling type |
| Window | Plastic, glass, safety glass |
| Unit | bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection thread Surface mounting flange Mounting bracket |
Dimensions
| Size | Dimensions in mm | Weight in kg | |||||||||
| a | b | b2 | D1 | D2 | e | f | G | h | SW | ||
| 50 | 12 | 30 | 55 | 55 | 50 | 5.5 | - | 1/4" | 48 | 14 | 0.15 |
| 63 | 13 | 32 | 56 | 68 | 62 | 6.5 | - | 1/4" | 54 | 14 | 0.21 |
| 100 | 15.5 | 48 | 81.5 | 107 | 100 | 8 | 30 | 1/2" | 87 | 22 | 0.80 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
