Product Details:
|
| Size: | 75mm | Mount: | Back |
|---|---|---|---|
| Pressure Range: | 1 MPa Or Customized | Case Material: | 304 SUS |
| Lens Material: | PC Glass | Bourton Tube: | Brass |
| Movement: | Brass | Accuracy: | 1.6 |
| Liquid: | Silicone Oil, Glycerol | Thread: | 1/4PT, NPT, G, M14*1.5... |

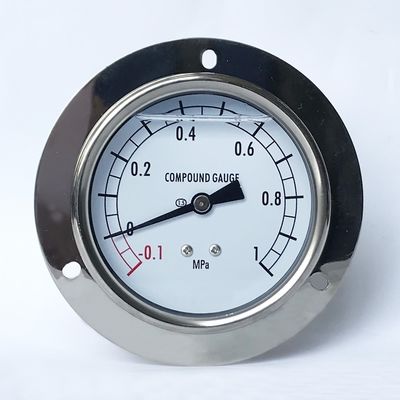

75mm 1 MPa Gas Pressure Manometer with Flange Glycerin Liquid Filled Pressure Gauge
Description
Wesen M03.02.075.F gauges are designed for flange panel mounting. They feature a stainless steel case and low friction Swiss movement to insure a long, reliable service life. The M03 design fits into U.S. size panel cut-outs.
Applications
For measuring locations with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts
Hydraulics
Compressors, shipbuilding
Special features
Vibration and shock-resistant
Especially robust design
Completely from stainless steel
Scale ranges up to 0 ... 1000 bar
|
Design |
EN 837-1 |
|
Nominal size |
75mm |
|
Accuracy |
1.6 |
| Pressure range | 1 MPa (customized) |
|
Pressure limitation |
40mm, 50mm, 63mm: Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value 100mm: Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value |
| Permissible temperature |
Ambient: -20 ... +60 °C Mediium: +60 °C maximum |
|
Ingress protection |
IP65 |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Brass |
|
Pressure element |
Brass, C type bourdon tube |
| Movement | Brass |
| Dial | Aluminium, white, with pointer stop pin Black lettering |
| Pointer | Aluminium |
| Case | 304 SS |
| Ring | Rolling type, with flange |
| Window | Plastic, glass, safety glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection thread Surface mounting flange Mounting bracket |
Dimensions
| Size | Dimensions in mm | Weight in kg | |||||||||
| a | b | b2 | D1 | D2 | e | f | G | h | SW | ||
| 50 | 12 | 30 | 55 | 55 | 50 | 5.5 | - | 1/4" | 48 | 14 | 0.15 |
| 63 | 13 | 32 | 56 | 68 | 62 | 6.5 | - | 1/4" | 54 | 14 | 0.21 |
| 100 | 15.5 | 48 | 81.5 | 107 | 100 | 8 | 30 | 1/2" | 87 | 22 | 0.80 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
