Product Details:
|
| Size: | 100mm | Mount: | Axial |
|---|---|---|---|
| Pressure Range: | 100 MPa Or Customized | Case Material: | 304 SUS |
| Lens Material: | PC Glass | Bourton Tube: | Brass |
| Movement: | Brass | Accuracy: | 1.6 |
| Liquid: | Silicone Oil, Glycerol | Thread: | 1/4PT, NPT, G, M14*1.5... |

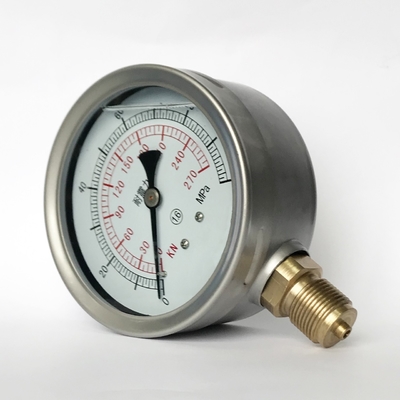

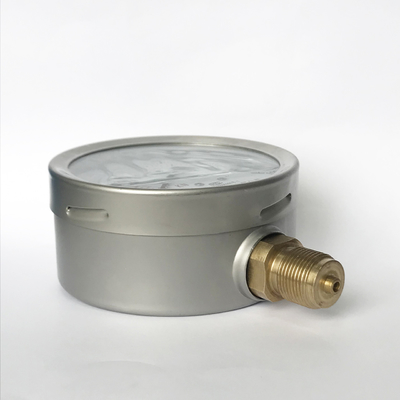

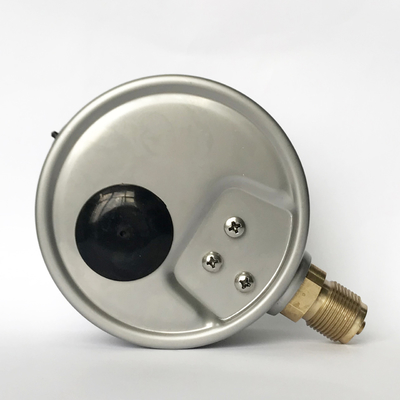

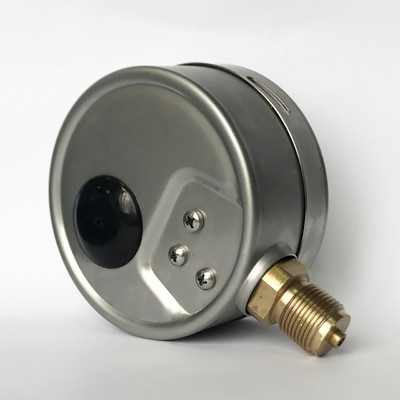

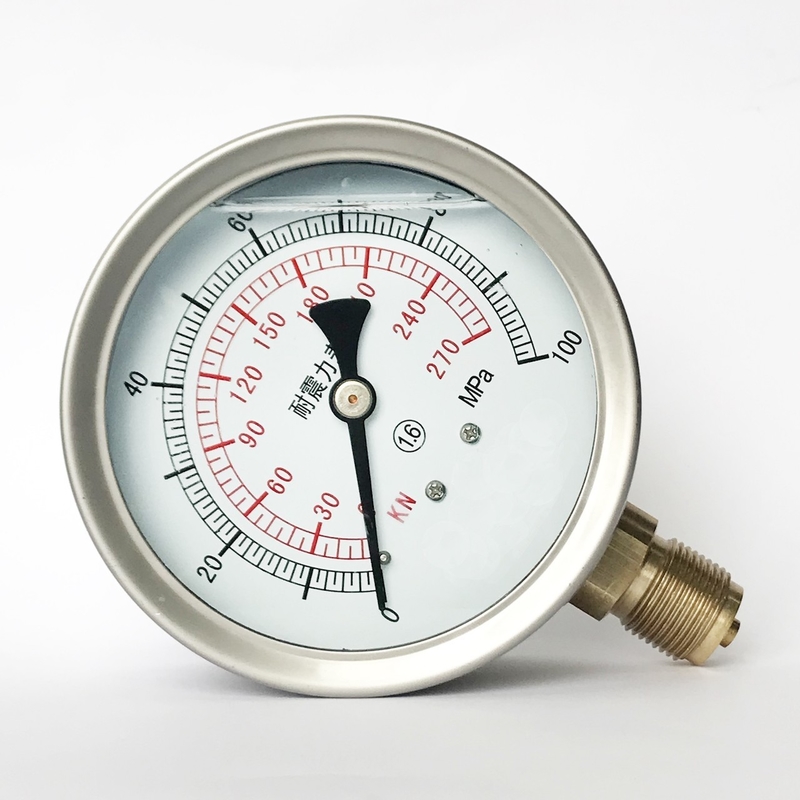

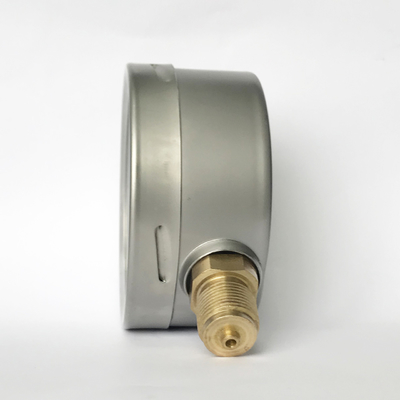

100mm 100 MPa Vibration-proof Manometer Glycerin Liquid Filled Pressure Gauge
Description
The type M03.01.100.N gauge is the ideal choice for OEM and general industrial applications requiring an economical, liquid-filled pressure gauge. The glycerine liquid fill dampens the Bourdon tube and reduces wear of the movement, extending gauge life. Typical applications of the type M03.01.100.N include air compressors, hydraulic presses, pumps, marine engines, as well as other types of industrial hydraulic and pneumatic equipment.
Applications
For measuring locations with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts
Hydraulics
Compressors, shipbuilding
Special features
Vibration and shock-resistant
Especially robust design
Completely from stainless steel
Scale ranges up to 0 ... 1000 bar
|
Design |
EN 837-1 |
|
Nominal size |
100mm |
|
Accuracy |
1.6 |
| Pressure range | 1000 kPa (customized) |
|
Pressure limitation |
40mm, 50mm, 63mm: Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value 100mm: Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value |
| Permissible temperature |
Ambient: -20 ... +60 °C Mediium: +60 °C maximum |
|
Ingress protection |
IP65 |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Brass |
|
Pressure element |
Brass, H-type bourdon tube |
| Movement | Brass |
| Dial | Aluminium, white, with pointer stop pin Black and red lettering |
| Pointer | Aluminium |
| Case | 304 SS |
| Ring | Bayonet type |
| Window | Plastic, glass, safety glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection thread Surface mounting flange Mounting bracket |
Dimensions
| Size | Dimensions in mm | Weight in kg | |||||||||
| a | b | b2 | D1 | D2 | e | f | G | h | SW | ||
| 50 | 12 | 30 | 55 | 55 | 50 | 5.5 | - | 1/4" | 48 | 14 | 0.15 |
| 63 | 13 | 32 | 56 | 68 | 62 | 6.5 | - | 1/4" | 54 | 14 | 0.21 |
| 100 | 15.5 | 48 | 81.5 | 107 | 100 | 8 | 30 | 1/2" | 87 | 22 | 0.80 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
