Product Details:
|
| Size: | 100mm | Mount: | Panel Mounting |
|---|---|---|---|
| Pressure Range: | 7 MPa Or Customized | Case Material: | 304 SUS |
| Lens Material: | PC Glass | Bourton Tube: | Brass |
| Movement: | Brass | Accuracy: | 1.6 |
| Liquid: | Silicone Oil, Glycerol | Thread: | 1/4PT, NPT, G, M14*1.5... |

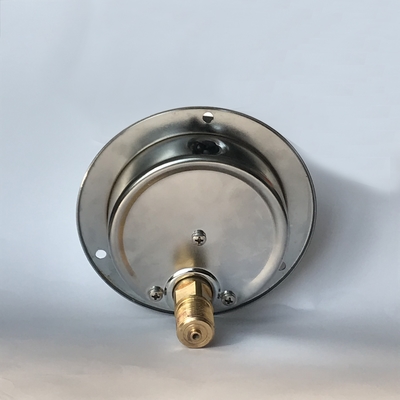

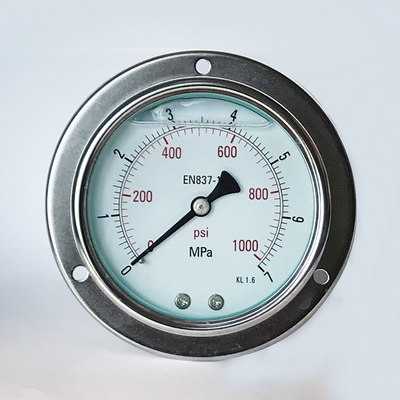

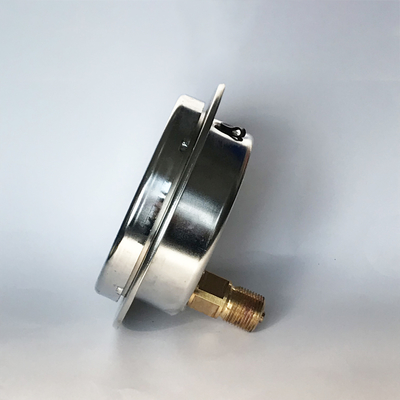

100mm 1000 psi 7 MPa Vibration-proof Panel Mounting Manometer Silicone Oil Liquid Filled Pressure Gauge
Description
Wesen type M03.02.100.F features a 100mm size liquid-filled gauge with a stainless steel case. The glycerine case fill dampens and lubricates the gauge internals, extending the life of the gauge. The M03.02.100.F gauge is ideal for applications with high dynamic pressure pulsations and vibrations.
Applications
For measuring locations with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts
Hydraulics
Compressors, shipbuilding
Special features
Vibration and shock-resistant
Especially robust design
Completely from stainless steel
Scale ranges up to 0 ... 1000 bar
|
Design |
EN 837-1 |
|
Nominal size |
100mm |
|
Accuracy |
1.6 |
| Pressure range | 7 MPa (customized) |
|
Pressure limitation |
40mm, 50mm, 63mm: Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value 100mm: Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value |
| Permissible temperature |
Ambient: -20 ... +60 °C Mediium: +60 °C maximum |
|
Ingress protection |
IP65 |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Brass |
|
Pressure element |
Brass, C-type bourdon tube |
| Movement | Brass |
| Dial | Aluminium, white, with pointer stop pin Black and red lettering dual scale |
| Pointer | Aluminium |
| Case | 304 SS |
| Ring | Rolling type |
| Window | Plastic, glass, safety glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection thread Surface mounting flange Mounting bracket |
Dimensions
| Size | Dimensions in mm | Weight in kg | |||||||||
| a | b | b2 | D1 | D2 | e | f | G | h | SW | ||
| 50 | 12 | 30 | 55 | 55 | 50 | 5.5 | - | 1/4" | 48 | 14 | 0.15 |
| 63 | 13 | 32 | 56 | 68 | 62 | 6.5 | - | 1/4" | 54 | 14 | 0.21 |
| 100 | 15.5 | 48 | 81.5 | 107 | 100 | 8 | 30 | 1/2" | 87 | 22 | 0.80 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
