Product Details:
|
| Size: | 63mm | Mount: | Radial, Bottom |
|---|---|---|---|
| Pressure Range: | 10 Bar Or Customized | Ring: | Bayonet Type |
| Case Material: | SS 316L | Window: | Safety Glass |
| Bourton Tube: | SS 316L | Movement: | SS 304 |
| Liquid: | Glycerin, Silicone Oil | Deaign: | EN837-1 |
| High Light: | CL 1.6 All Stainless Steel Pressure Gauge,10 bar All Stainless Steel Pressure Gauge,Manometer silicone filled pressure gauge |
||

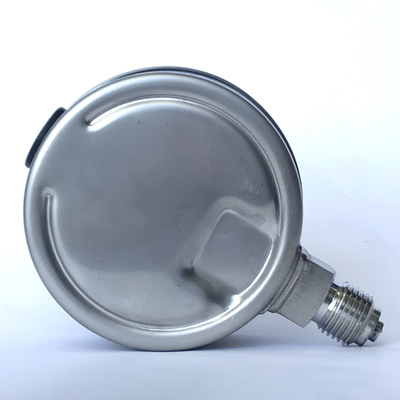

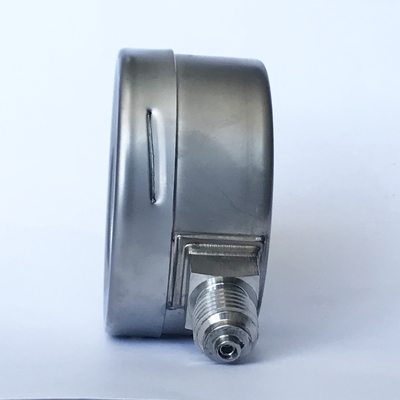

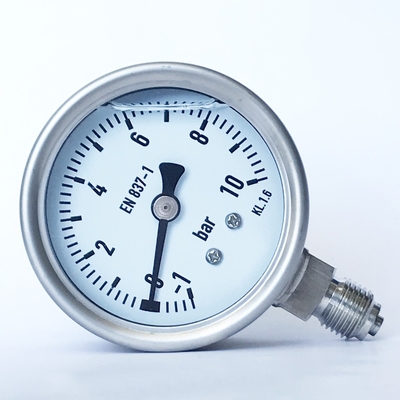

63mm 10 bar CL 1.6 Pneumatic Manometer Bayonet Ring All Stainless Steel Pressure Gauge
Description
All stainless steel gauges provide resistance to corrosive media and environments. They feature 316 SS wetted parts, series 300 SS case and movement, and a welded case-to-socket connection. All stainless steel pressure gauges are field liquid fillable or available filled from the factory. This gauge is designed for static applications and may not be well-suited to high vibration and pulsation applications.
Applications
For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics
Machine building and general plant construction
Special features
Excellent load cycle stability and shock resistance
Design per EN 837-1
Completely from stainless steel
Scale ranges up to 0 ... 1600 bar
|
Design |
EN 837-1 |
|
Nominal size |
63mm |
|
Accuracy |
1.6 |
| Pressure range | 10 bar (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
| Medium temperature |
Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F] Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F] Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F] |
|
Ambiet temperature |
Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F] Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F] Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F] |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Stainless steel, SUS 304, SUS 316 |
|
Pressure element |
SS 316L, H-type bourdon tube |
| Movement | SS 304 |
| Dial | Aluminium, white, with pointer stop pin Black lettering |
| Pointer | Aluminium |
| Case | SS 304 |
| Ring | Bayonet ring, stainless steel |
| Window | PC, glass, safety glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection Surface mounting flange Mounting bracket |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
