Product Details:
|
| Size: | 100mm | Mount: | Flange |
|---|---|---|---|
| Pressure Range: | 2.5 Bar Or Customized | Ring: | Bayonet |
| Case Material: | Stainless Steel 316L | Window: | Shatterproof Glass |
| Bourton Tube: | Stainless Steel 316 | Movement: | Stainless Steel 304 |
| Liquid: | Glycerin, Silicone Oil | Deaign: | EN837-1 |
| High Light: | 2.5 bar All Stainless Steel Pressure Gauge,100mm All Stainless Steel Pressure Gauge,KL 1.0 panel mount pressure gauge |
||

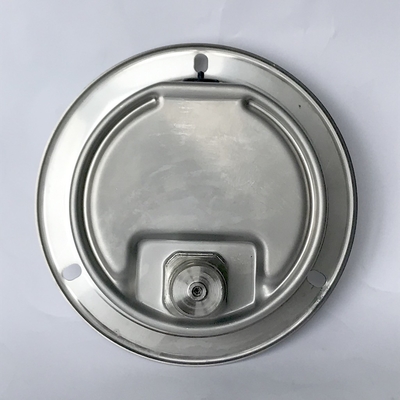

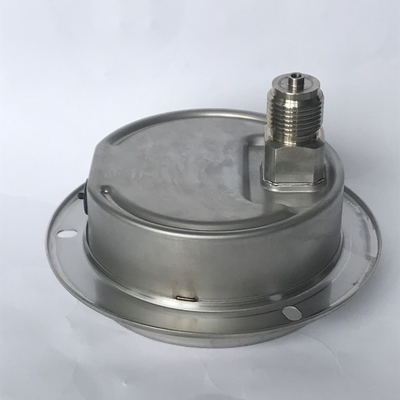

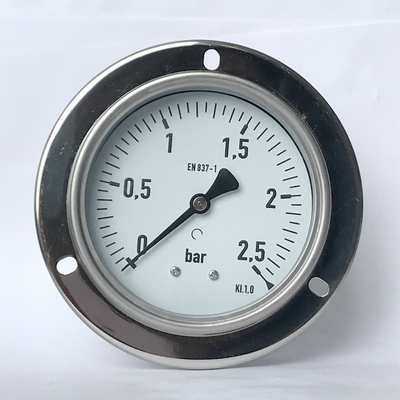

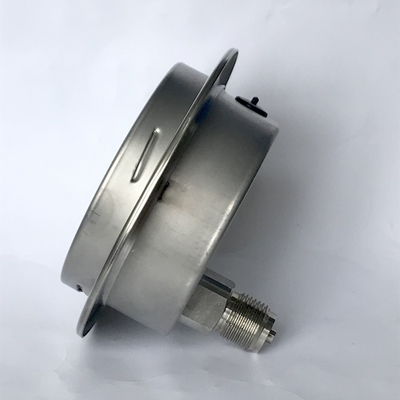

100mm 2.5 bar KL 1.0 Panel Mount Refinery Application All Stainless Steel Pressure Gauge
Description
The type M02F is specifically designed and manufactured to exact panel builder requirements. With exclusive features, it is ideal when used for panel mount gauges in the oil and gas, refinery, petrochemical, and food and beverage industries.
Applications
With liquid-filled case for applications with high dynamic pressure pulsations or vibration
Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics
Processindustry:chemical/petrochemical, power stations, mining, on and off shore, environmental technology, mechanical engineering, machine building and plant construction
Special features
Excellent load cycle stability and shock resistance
Design per EN 837-1
Completely from stainless steel
Scale ranges up to 0 ... 1600 bar
|
Design |
EN 837-1 |
|
Nominal size |
100mm |
|
Accuracy |
1.0 |
| Pressure range | 2.5 bar (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
| Medium temperature |
Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F] Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F] Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F] |
|
Ambiet temperature |
Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F] Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F] Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F] |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Stainless steel, SUS 304, SUS 316 |
|
Pressure element |
SS 316L, H-type bourdon tube |
| Movement | SS 304 |
| Dial | Aluminium, white, with pointer stop pin Black lettering |
| Pointer | Aluminium |
| Case | SS 304 |
| Ring | Necking-down, stainless steel |
| Window | PC, glass, safety glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection Surface mounting flange Mounting bracket |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
