Product Details:
|
| Size: | 100mm | Mount: | Bottom |
|---|---|---|---|
| Pressure Range: | 250 Mbar Or Customized | Case Material: | SS 304 |
| Lens Material: | PC | Bellows: | Brass |
| Movement: | Copper Alloy | Dial: | Aluminum |
| Accuracy: | 1.6 | Deaign: | EN837-3 |
| High Light: | Capsule 100mm pressure gauge,250 mbar 100mm pressure gauge,SS 304 bottom mount pressure gauge |
||

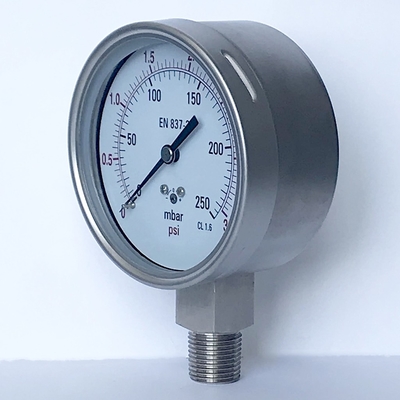

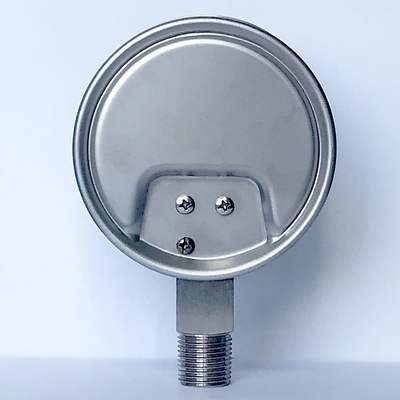

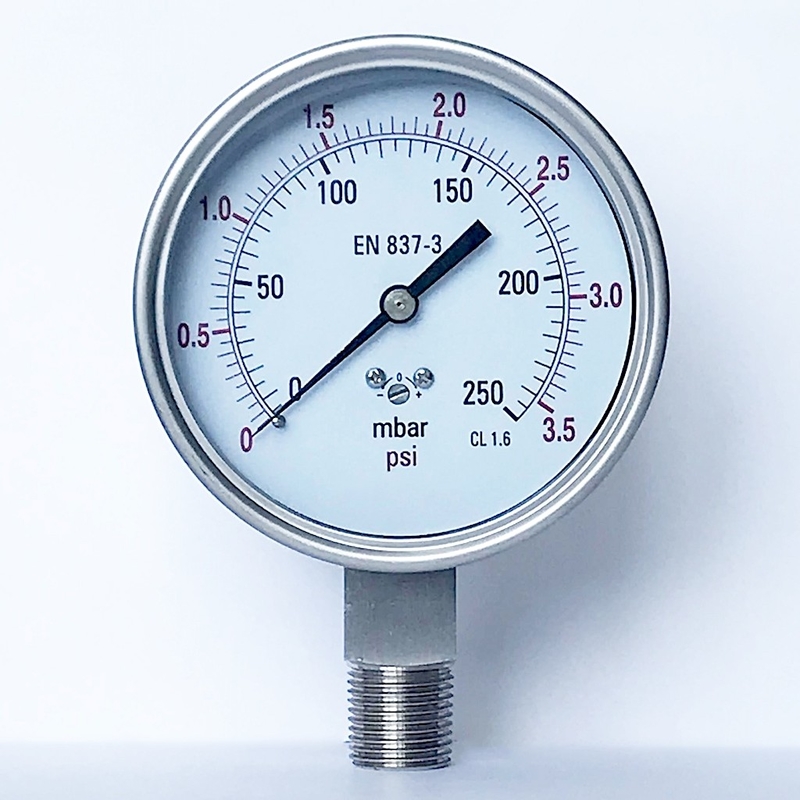

100mm Low Pressure Gauge 250 mbar Bellows Manometer Stainless Steel Capsule Pressure Gauge
Description
WESEN type M08 low pressure gauges feature a copper alloy capsule element that is designed to measure pressure and vacuum of gaseous media from as low as 2.5” H2O to 275” H2O (10 psi). The 4” dial size allows easy reading from a distance. The finely polished nickel-silver pinion gear and shaft of the movement ensure repeat- able accuracy.
Applications
Low pressure gauge for applications in a controlled environment
Low pressure pneumatic systems
Ideal for measuring pressure, vacuum in medical, environmental, and laboratory applications for content and filter monitoring
For gaseous, dry and non-aggresive media
Special features
Front zero adjustment
Special connections on request
Scale ranges from 0/10 InWC (25 mbar)
|
Design |
EN 837-3 |
|
Nominal size |
100mm |
|
Accuracy |
± 1.6 of full scale value |
| Pressure range | 80 mmH2O 80 mmWC (customized) |
| Standard ranges |
2”: 0...25 InWC (60 mbar) to 0...250 InWC (600 mbar) 2½”: 0...10 InWC (25 mbar) to 0...250 InWC (600 mbar) or all other equivalent vacuum or combined pressure and vacuum ranges |
| Standard scales |
InH2O/mmH2O oz/sq.in/mmH2O oz/sq.in/InH2O PSI |
|
Pressure limitation |
Steady: full scale value |
|
Permissible temperature |
Ambient: -20 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ± 0.5 %/10 K of the span |
|
Process connection |
SS |
|
Pressure element |
SS |
| Movement | SS |
| Dial | Aluminium, white, black lettering |
| Pointer | Aluminium |
| Case | Black steel, painted steel |
| Window | Acrylic, glass |
| Zero adjustment | At the front |
| Options |
Other process connection |
Dimensions
| Size | Dimension in inches | Weight in LBS | |||||||
| a | b | b1 | b2 | D | G | h | SW | ||
| 2” | - | - | 1.10 | 1.89 | 50 | 1/4”NPT | - | 0.55 | 0.20 |
| 2½” | 0.37 | 1.57 | 1.44 | 2.19 | 63 | 1/4”NPT | 2.00 | 0.55 | 0.44 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
