| Size: | 63mm | Mount: | Bottom, Lower |
|---|---|---|---|
| Pressure Range: | 100 Mbar Or Customized | Case Material: | 304 SUS |
| Lens Material: | ABS | Bellows: | 316 SUS |
| Movement: | 304 SUS | Dial: | Aluminum |
| Zero Adjustment: | Yes | Deaign: | EN837-3 |
| High Light: | 304 SUS Capsule Pressure Gauge,100 mbar Capsule Pressure Gauge,63mm low pressure gauge |
||

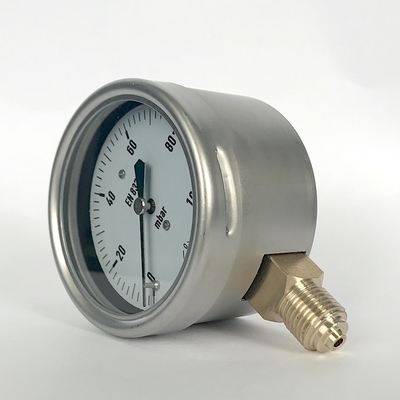

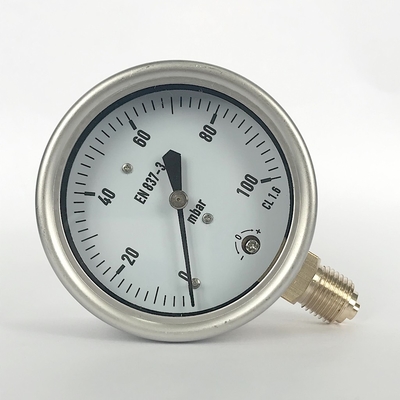

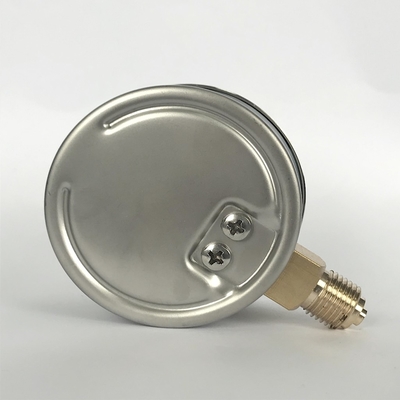

63mm Low Pressure Gauge 100 mbar Stainless Steel Case Capsule Pressure Gauge
Description
WESEN always manufactures high quality pressure gauges. The type M07 low pressure gauges offer the corrosion resistance of 316 SS wetted parts and is able to measure pressure and vacuum of gaseous media from as low as 1” H2O to 275” H2O (10 psi). The finely polished nickel-silver pinion gear and shaft of the movement ensure repeatable accuracy.
Applications
Low pressure gauge for applications in a controlled environment
Low pressure pneumatic systems
Ideal for measuring pressure, vacuum in medical, environmental, and laboratory applications for content and filter monitoring
For gaseous, dry and non-aggresive media
Special features
Front zero adjustment
Special connections on request
Scale ranges from 0/10 InWC (25 mbar)
|
Design |
EN 837-3 |
|
Nominal size |
63mm |
|
Accuracy |
± 1.6 of full scale value |
| Pressure range | 100 mbar (customized) |
| Standard ranges |
2”: 0...25 InWC (60 mbar) to 0...250 InWC (600 mbar) 2½”: 0...10 InWC (25 mbar) to 0...250 InWC (600 mbar) or all other equivalent vacuum or combined pressure and vacuum ranges |
| Standard scales |
InH2O/mmH2O oz/sq.in/mmH2O oz/sq.in/InH2O PSI |
|
Pressure limitation |
Steady: full scale value |
|
Permissible temperature |
Ambient: -20 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ± 0.5 %/10 K of the span |
|
Process connection |
Brass |
|
Pressure element |
Brass |
| Movement | Brass |
| Dial | Aluminium, white, black lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Window | Acrylic, glass |
| Zero adjustment | At the front |
| Options |
Other process connection |
Dimensions
| Size | Dimension in inches | Weight in LBS | |||||||
| a | b | b1 | b2 | D | G | h | SW | ||
| 2” | - | - | 1.10 | 1.89 | 50 | 1/4”NPT | - | 0.55 | 0.20 |
| 2½” | 0.37 | 1.57 | 1.44 | 2.19 | 63 | 1/4”NPT | 2.00 | 0.55 | 0.44 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
