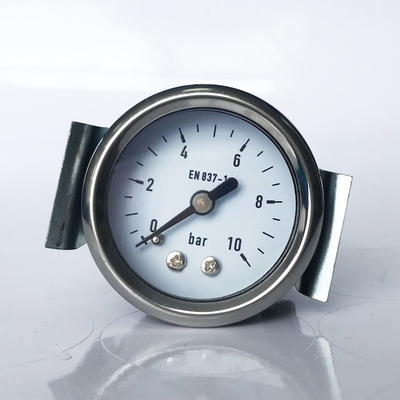

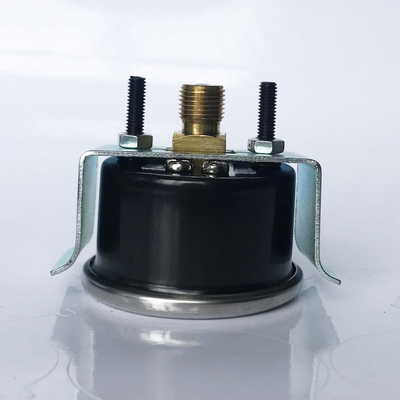

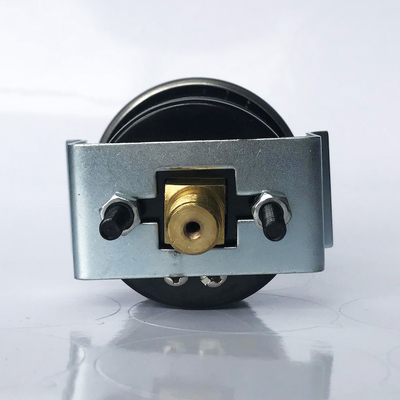

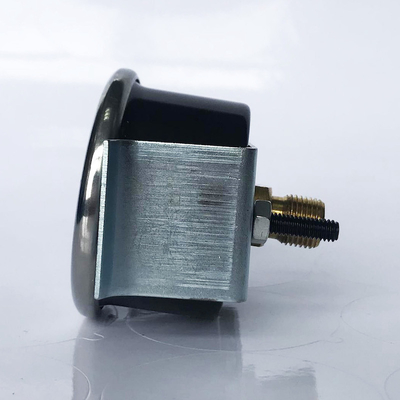

40mm Black Steel Case 10 Bar Panel Mount Brass Wetted Parts Utility Pressure Gauge

Description
Size: 40mm Mount: Bottom
Pressure Range: 10 Bar Or Customized Case Material: Black Steel
Lens Material: Acrylic Bourton Tube: Phosphor Bronze
Movement: Copper Alloy Dial: White Background
Accuracy: 2.5 Deaign: EN837-1

40mm Black Steel Case 10 Bar Panel Mount Brass Wetted Parts Utility Pressure Gauge



Description

M04 pressure gauge combines an aesthetic panel mount design with reliability and performance. Easily customizable, this model is an ideal solution for pressure measurement.



Applications

For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.

Pneumatics

Heating and air-conditioning technology

Medical engineering



Special features

Reliable and cost-effective

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Scale ranges up to 0 ... 400 bar



Specifications

Design

EN 837-1

Nominal size

40mm

Accuracy

2.5
Pressure range 10 bar (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +60 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

Brass

Pressure element

Brass, C-type or helical type

Bourdon tube

Movement Brass
Dial Aluminium, white, with pointer stop pin
Black/red lettering
Pointer Aluminium
Case Black steel, painted steel
Window Plastic, glass
Options

Other process connection
Surface mounting flange
Mounting bracket



Dimensions

Model M01.01, lower mount (radial)

40mm Black Steel Case 10 Bar Panel Mount Brass Wetted Parts Utility Pressure Gauge 0



Dial Size Dimensions in mm Weight in kg
a b D G h SW
40 9.5 26 39 G1/4 36 14 0.08
50 10 27.5 49 G1/4 45 14 0.10
63 9.5 27.5 62 G1/4 53.5 14 0.13
80 11.5 30 79 G1/2 72 22 0.18
100 11.5 30.5 99 G1/2 83.5 22 0.21
160 15.5 42 160 G1/2 115.5 22 0.85



Model M01.02, back mount (axial)

40mm Black Steel Case 10 Bar Panel Mount Brass Wetted Parts Utility Pressure Gauge 1



Dial Size Dimensions in mm Weight in kg
b1 b2 D G SW
40 26 42 39 G1/8 14 0.06
50 29.5 47.5 49 G1/4 14 0.07
63 29 47 62 G1/4 14 0.08
80 32 49 79 G1/4 14 0.11
100 31 49 99 G1/4 14 0.26



Ordering information

Model / Dial size / Pressure Range / Process connection / Options



40mm Black Steel Case 10 Bar Panel Mount Brass Wetted Parts Utility Pressure Gauge 2
