Product Details:
|
| Size: | 100mm | Mount: | Lower Back |
|---|---|---|---|
| Pressure Range: | 16 Bar Or Customized | Case Material: | Black Steel |
| Window: | Glass | Bourton Tube: | Copper Alloy |
| Movement: | Copper Alloy | Dial: | Black Lettering Printed On White Plate |
| Accuracy: | 1.0 | Color: | Blue |

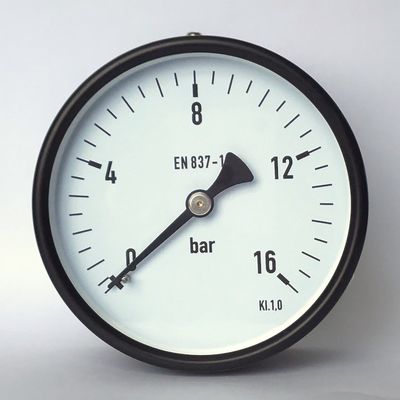

100mm Painted Steel Case 16 bar KL 1.0 Lower Back Mounting Utility Pressure Gauge
Description
Our Industrial HVAC Gauge forms part of our carefully selected range of gauges and accessories; ideally suited for all HVAC applications. Features a Black enameled steel case, 30mm rear safety blow-out disc, Stainless Steel removable bezel, polycarbonate window (glass on 1/2" Bottom Entry) and Brass / Bronze wetted parts. Configurable as either Bottom or Back Entry connection.
Suitable for gases, excluding oxygen or acetylene, up to a maximum of 25 Bar and the the measurement of fluid liquids that are NOT: high viscous, high temperature (over 60°C), likely to crystallize / solidify or that are corrosive to copper or tin alloys.
Applications
For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.
Pneumatics
Heating and air-conditioning technology
Medical engineering
Special features
Reliable and cost-effective
Design per EN 837-1
Nominal size 40, 50, 63, 80, 100 and 160
Scale ranges up to 0 ... 400 bar
|
Design |
EN 837-1 |
|
Nominal size |
100mm |
|
Accuracy |
1.0 |
| Pressure range | 16 bar (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
|
Permissible temperature |
Ambient: -20 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Brass |
|
Pressure element |
Brass, C-type or helical type
Bourdon tube |
| Movement | Brass |
| Dial | Aluminium, white, with pointer stop pin Black/red lettering |
| Pointer | Aluminium |
| Case | Painted steel, black |
| Window | Glass |
| Options |
Other process connection |
Dimensions
Model M01.01, lower mount (radial)
| Dial Size | Dimensions in mm | Weight in kg | |||||
| a | b | D | G | h | SW | ||
| 40 | 9.5 | 26 | 39 | G1/4 | 36 | 14 | 0.08 |
| 50 | 10 | 27.5 | 49 | G1/4 | 45 | 14 | 0.10 |
| 63 | 9.5 | 27.5 | 62 | G1/4 | 53.5 | 14 | 0.13 |
| 80 | 11.5 | 30 | 79 | G1/2 | 72 | 22 | 0.18 |
| 100 | 11.5 | 30.5 | 99 | G1/2 | 83.5 | 22 | 0.21 |
| 160 | 15.5 | 42 | 160 | G1/2 | 115.5 | 22 | 0.85 |
Model M01.02, back mount (axial)
| Dial Size | Dimensions in mm | Weight in kg | ||||
| b1 | b2 | D | G | SW | ||
| 40 | 26 | 42 | 39 | G1/8 | 14 | 0.06 |
| 50 | 29.5 | 47.5 | 49 | G1/4 | 14 | 0.07 |
| 63 | 29 | 47 | 62 | G1/4 | 14 | 0.08 |
| 80 | 32 | 49 | 79 | G1/4 | 14 | 0.11 |
| 100 | 31 | 49 | 99 | G1/4 | 14 | 0.26 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
