Product Details:
|
| Deaign: | EN837-1 | Size: | 40mm |
|---|---|---|---|
| Mount: | Radial | Pressure Range: | 30 ATM, Customized |
| Case Material: | Plastic | Lens Material: | Acrylic |
| Bourton Tube: | Brass | Movement: | Brass |
| Dial: | Plastic, Luminous | Color: | Black |
| High Light: | Plastic Case Medical Pressure Gauge,30 ATM Medical Pressure Gauge,Luminous Dial Plate radial pressure gauge |
||

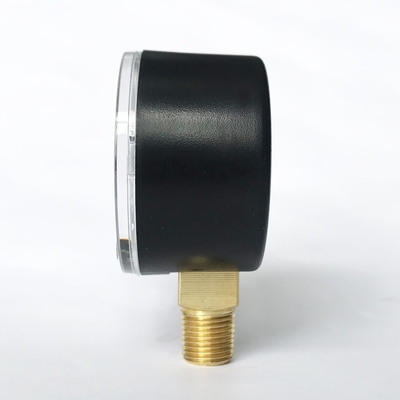

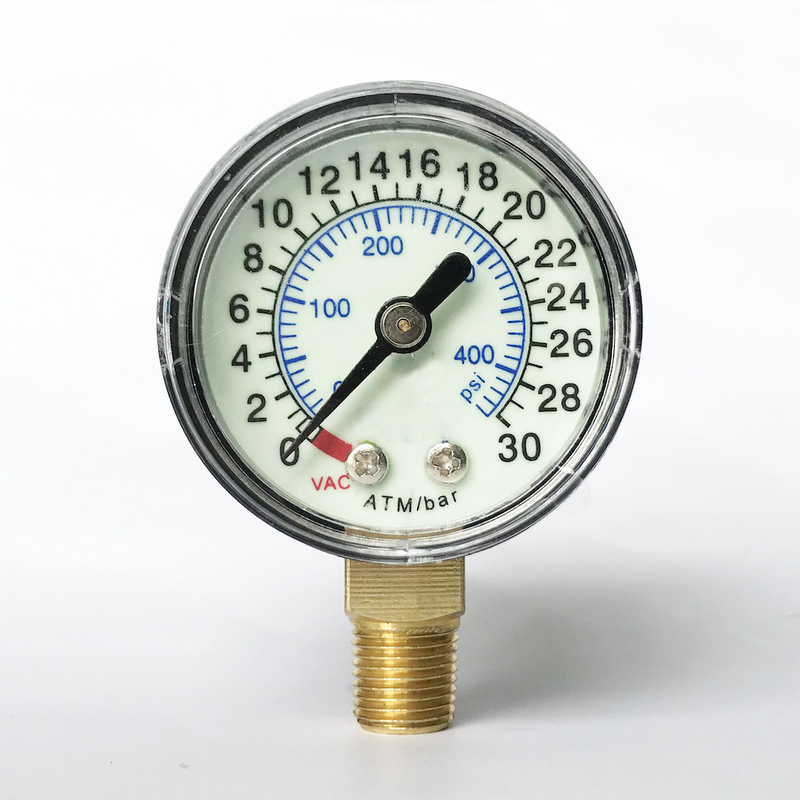

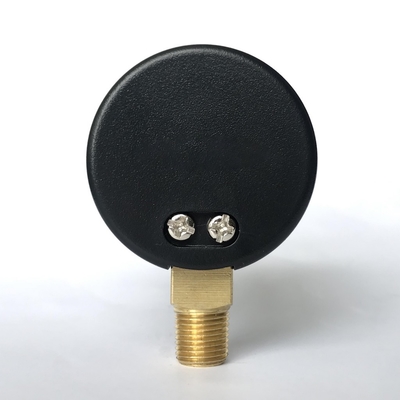

40mm Medical Pressure Gauge 30 ATM Radial Direction Mounting Luminous Dial Plate
Description
The C-shaped tube is used for the lower measurement ranges up to about 60 bar (900 psi, or 6000 kPa). For higher measuring ranges spiral or helical Bourdon tubes are used. A Bourdon tube is usually flattened on one or both sides. This allows the tube to lose some of its rigidity which makes it easier to uncoil when pressurized.
Applications
Medical Inflation Device
Inflation Device Kits
Balloon Inflation Device
Inflation Syringe
Inflate and deflate dilation balloon
Manual balloon catheter pump
Special features
Constructed from hygienic materials
|
Design |
EN 837-1 |
|
Nominal size |
40mm |
|
Accuracy |
2.5 |
| Pressure range | 30 ATM |
|
Pressure limitation |
Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value |
| Permissible temperature |
Ambient: -20 ... +60 °C Mediium: +60 °C maximum |
|
Ingress protection |
IP65 |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Brass, copper alloy |
|
Pressure element |
Brass |
| Movement | Brass |
| Dial | ABS, colorful, without pointer stop pin, customized |
| Pointer | Aluminum |
| Case | Plastic |
| Window | Plastic |
| Unit |
ATM |
| Thread | G, BSP, PT, BSPT, NPT, other connections |
| Options | Customized logo |
Popular medical pressure gauge
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
