Product Details:
|
| Dial Size: | 63mm | Mount: | Radial Direction |
|---|---|---|---|
| Pressure Range: | 50 Bar Customized | Case Material: | Stainless Steel 304 |
| Lens Material: | Tempered Glass, Safety Glass | Pressure Element: | Stainless Steel 316, 304 |
| Movement: | Stainless Steel 304 | Dial: | Aluminum, White |
| Color: | Metallic | Deaign: | EN837-1 |
| High Light: | ss316 50 bar pressure gauge,63mm Dial 50 bar pressure gauge,Metallic Electric Contact Manometer |
||

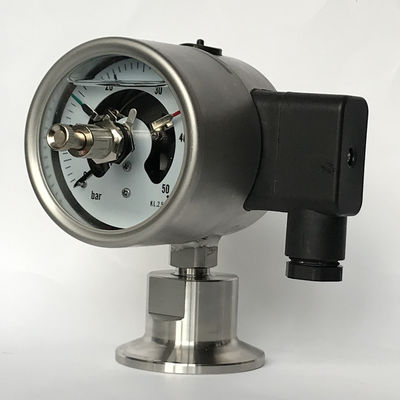

63mm Dial 50 bar Stainless Steel Diaphragm Seal Pressure Gauge Electric Contact Manometer
Description
Filling the casing with glycerine may also help to dampen the pendulum motion of the pointer.
The frequent back and forth movement of the pointer will have an adverse effect on the wear of the rack and pinion. Backlash will occur at the gear teeth, thereby reducing the accuracy of the pressure gauge. Sometimes a hairspring is used, which is mounted on the shaft of the pointer, in order to ensure the necessary tension on the pinion so that the gears engage well in each other.
Applications
Hygienic pressure measurement in sanitary applications for the pharmaceutical, biotechnology, food and beverage industries
Mechanical pressure display on pipelines, fermenters, bioreactors and vessels
Pressure/vacuum monitoring during cleaning, sterilisation, pressure testing
For gases, compressed air, vapour; liquid, pasty, powdery and crystallising media
Special features
Safety via mechanical pressure transmission
Case and wetted parts in hygienic design
Suitable for SIP and CIP, autoclavable version available
Easy zero point setting
High overload safety
|
Design |
EN 837-1 |
|
Nominal size |
63mm |
|
Accuracy |
2.5 |
| Pressure range (bar) |
0...1.6, 0...2.5, 0...4, 0...6, 0...10, 0...16, -1...+0.6, -1...+1.5, -1...+3, -1...+5, -1...+9, -1...+15 |
|
Pressure limitation |
Steady: Full scale value Fluctuating: Scale range <4 bar: Full scale value Scale range ≥4 bar: 2/3 x full scale value |
| Overload safety |
2x full scale value, max. 40 bar or max. pressure rating (PN) of the process connection 5x full scale value, max. 40 bar or max. pressure rating (PN) of the process connection |
| Vacuum resistance |
Without Vacuum resistance to -1 bar Depending on the scale range, vacuum resistance is provided or available on request |
| Permissible temperature |
Ambient: -20 ... +60 °C Mediium: -20 ... +150 °C CIP and SIP: 150 °C continuously for wetted parts Autoclavable version, max. 134 °C, ≤ 20 minutes |
|
Ingress protection |
IP54 |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.5 %/10 K of full scale value |
|
Process connection |
Stainless steel, SUS 304, SUS 316 |
|
Pressure element |
Diaphragm element, welded to the process connection |
| Movement | SUS 304 |
| Dial | Aluminium, white, with pointer stop pin |
| Pointer | Aluminium |
| Case | Stainless steel |
| Ring | Stainless steel |
| Window | Plastic, glass, safety glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Options | Other process connection thread Surface mounting flange Mounting bracket |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
