Product Details:
|
| Dial Size: | 63mm | Mount: | Radial Direction |
|---|---|---|---|
| Pressure Range: | 100 Bar Customized | Case Material: | SS 304 |
| Lens Material: | Tempered Glass | Pressure Element: | Stainless Steel 316 |
| Movement: | Stainless Steel 304 | Dial: | Aluminum, White |
| Color: | Metallic | Deaign: | EN837-1 |
| High Light: | SS 304 Diaphragm Seal Pressure Gauge,100 bar Diaphragm Seal Pressure Gauge,Electric Contact Manometer |
||

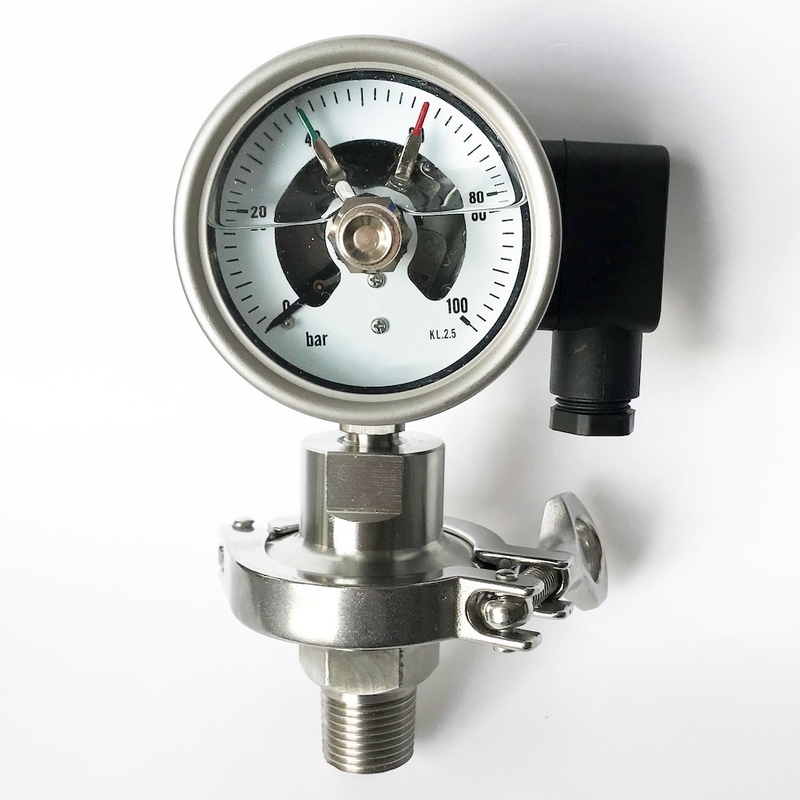

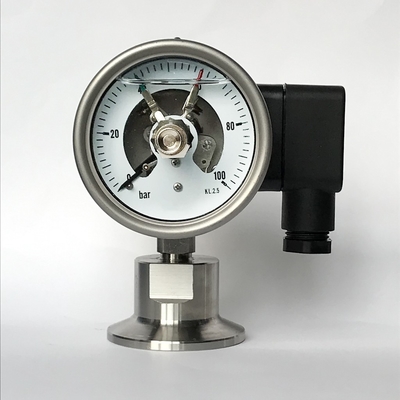

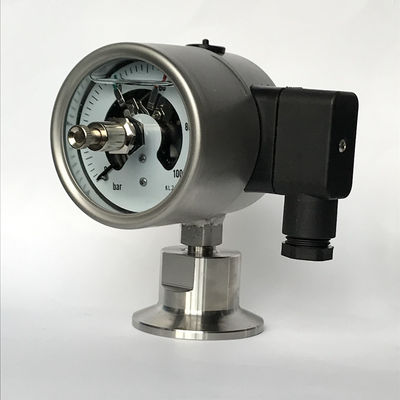

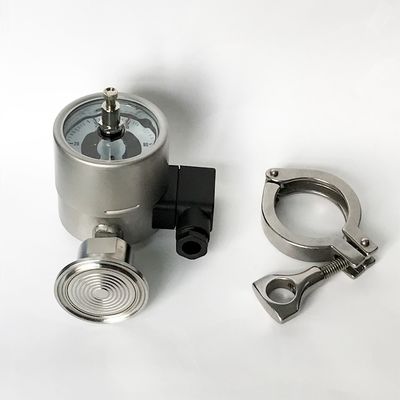

63mm Dial 100 bar Stainless Steel Diaphragm Seal Pressure Gauge Electric Contact Manometer
Description
Bourdon tube pressure gauges can be executed according to a safety design to protect the operator from high-pressure liquid or gas projections through the window of the pressure gauge in case the Bourdon tube should rupture.
Applications
Hygienic pressure measurement in sanitary applications for the pharmaceutical, biotechnology, food and beverage industries
Mechanical pressure display on pipelines, fermenters, bioreactors and vessels
Pressure/vacuum monitoring during cleaning, sterilisation, pressure testing
For gases, compressed air, vapour; liquid, pasty, powdery and crystallising media
Special features
Safety via mechanical pressure transmission
Case and wetted parts in hygienic design
Suitable for SIP and CIP, autoclavable version available
Easy zero point setting
High overload safety
|
Design |
EN 837-1 |
|
Nominal size |
63mm |
|
Accuracy |
2.5 |
| Pressure range (bar) |
0...1.6, 0...2.5, 0...4, 0...6, 0...10, 0...16, -1...+0.6, -1...+1.5, -1...+3, -1...+5, -1...+9, -1...+15 |
|
Pressure limitation |
Steady: Full scale value Fluctuating: Scale range <4 bar: Full scale value Scale range ≥4 bar: 2/3 x full scale value |
| Overload safety |
2x full scale value, max. 40 bar or max. pressure rating (PN) of the process connection 5x full scale value, max. 40 bar or max. pressure rating (PN) of the process connection |
| Vacuum resistance |
Without Vacuum resistance to -1 bar Depending on the scale range, vacuum resistance is provided or available on request |
| Permissible temperature |
Ambient: -20 ... +60 °C Mediium: -20 ... +150 °C CIP and SIP: 150 °C continuously for wetted parts Autoclavable version, max. 134 °C, ≤ 20 minutes |
|
Ingress protection |
IP54 |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.5 %/10 K of full scale value |
|
Process connection |
Stainless steel, SUS 304, SUS 316 |
|
Pressure element |
Diaphragm element, welded to the process connection |
| Movement | SUS 304 |
| Dial | Aluminium, white, with pointer stop pin |
| Pointer | Aluminium |
| Case | Stainless steel |
| Ring | Stainless steel |
| Window | Plastic, glass, safety glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Options | Other process connection thread Surface mounting flange Mounting bracket |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
