SUS 304 Diaphragm Seal Pressure Gauge DN40 100mm Dial 25 Bar Pressure Gauge

SUS 304 Diaphragm Seal Pressure Gauge DN40 100mm Dial 25 Bar Pressure Gauge
SUS 304 Diaphragm Seal Pressure Gauge DN40 100mm Dial 25 Bar Pressure Gauge SUS 304 Diaphragm Seal Pressure Gauge DN40 100mm Dial 25 Bar Pressure Gauge SUS 304 Diaphragm Seal Pressure Gauge DN40 100mm Dial 25 Bar Pressure Gauge SUS 304 Diaphragm Seal Pressure Gauge DN40 100mm Dial 25 Bar Pressure Gauge SUS 304 Diaphragm Seal Pressure Gauge DN40 100mm Dial 25 Bar Pressure Gauge

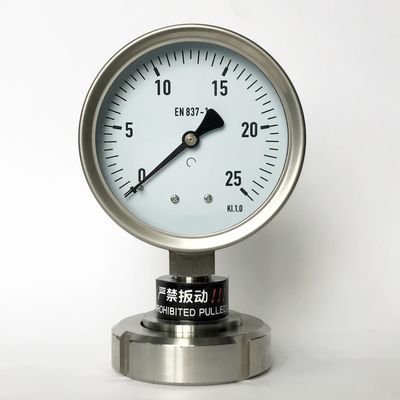

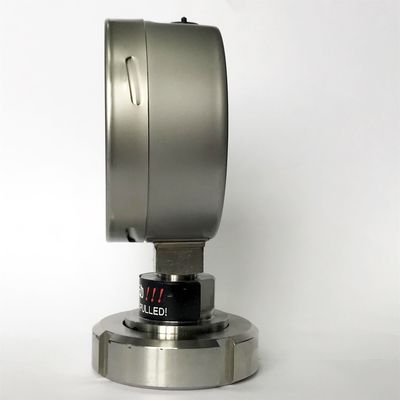

Large Image :  SUS 304 Diaphragm Seal Pressure Gauge DN40 100mm Dial 25 Bar Pressure Gauge

Product Details:
Place of Origin: China
Brand Name: WESEN or Customized
Certification: CE, ISO
Model Number: M11.01.100.N
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~4 Weeks
Payment Terms: T/T
Supply Ability: 20000 Pieces per Month

SUS 304 Diaphragm Seal Pressure Gauge DN40 100mm Dial 25 Bar Pressure Gauge

Description
Dial Size: 100mm Mount: Radial Direction
Pressure Range: 25 Bar Customized Case Material: SUS 304
Lens Material: Tempered Glass Pressure Element: SUS 316
Movement: SUS 304 Dial: Aluminum, White
Color: Metallic Deaign: EN837-1
High Light:

SUS 304 Diaphragm Seal Pressure Gauge

,

DN40 Diaphragm Seal Pressure Gauge

,

100mm Dial 25 bar pressure gauge

100mm Dial 25 bar Stainless Steel Diaphragm Seal Pressure Gauge DN40



Description

Gas or liquid being released is evacuated to a safe area away from the operator.

The window of the pressure gauge may additionally be made of safety glass. The blow-out device is activated at a pressure which is lower than half of the window-burst pressure.



Applications

Hygienic pressure measurement in sanitary applications for the pharmaceutical, biotechnology, food and beverage industries

Mechanical pressure display on pipelines, fermenters, bioreactors and vessels

Pressure/vacuum monitoring during cleaning, sterilisation, pressure testing

For gases, compressed air, vapour; liquid, pasty, powdery and crystallising media

​​

Special features

Safety via mechanical pressure transmission

Case and wetted parts in hygienic design

Suitable for SIP and CIP, autoclavable version available

Easy zero point setting

High overload safety



Specifications

Design

EN 837-1

Nominal size

100mm

Accuracy

1.0
Pressure range (bar)

0...1.6, 0...2.5, 0...4, 0...6, 0...10, 0...16,

-1...+0.6, -1...+1.5, -1...+3, -1...+5, -1...+9, -1...+15

Pressure limitation

Steady:

Full scale value

Fluctuating:

Scale range <4 bar: Full scale value

Scale range ≥4 bar: 2/3 x full scale value

Overload safety

2x full scale value, max. 40 bar or max. pressure rating (PN) of the process connection

5x full scale value, max. 40 bar or max. pressure rating (PN) of the process connection

Vacuum resistance

Without

Vacuum resistance to -1 bar

Depending on the scale range, vacuum resistance is provided or available on request

Permissible temperature

Ambient: -20 ... +60 °C

Mediium: -20 ... +150 °C

CIP and SIP: 150 °C continuously for wetted parts

Autoclavable version, max. 134 °C, ≤ 20 minutes

Ingress protection

IP54

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.5 %/10 K of full scale value

Process connection

Stainless steel, SUS 304, SUS 316

Pressure element

Diaphragm element, welded to the process connection

Movement SUS 304
Dial Aluminium, white, with pointer stop pin
Pointer Aluminium
Case Stainless steel
Ring Stainless steel
Window Plastic, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa

Options Other process connection thread
Surface mounting flange
Mounting bracket



Ordering information

Model / Dial size / Pressure Range / Process connection / Options
