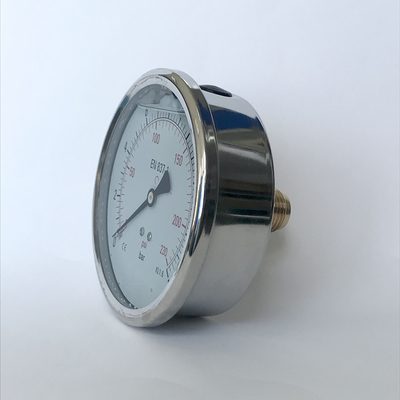

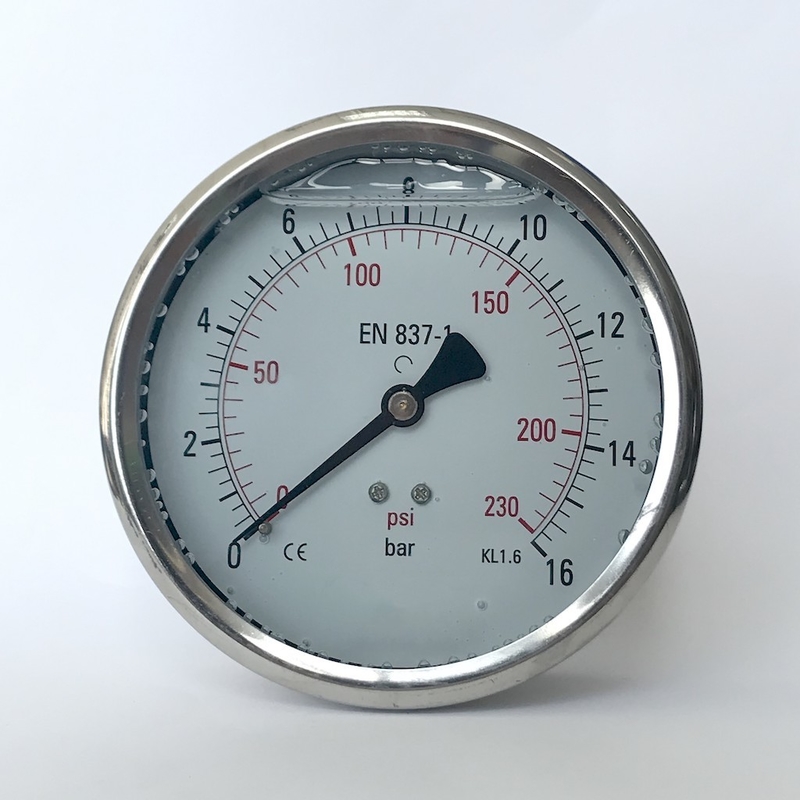

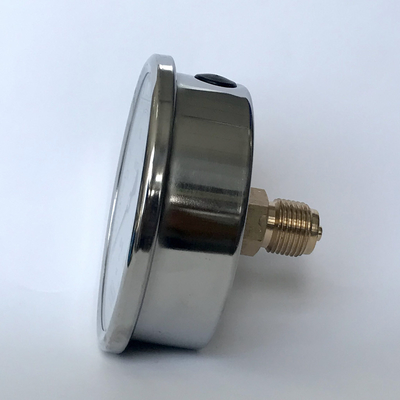

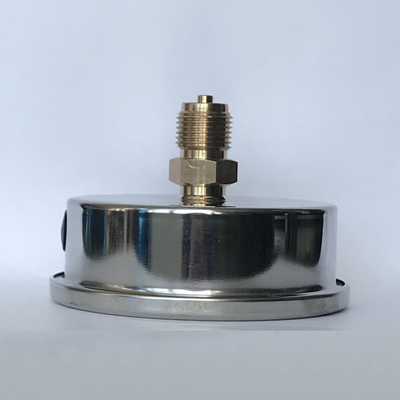

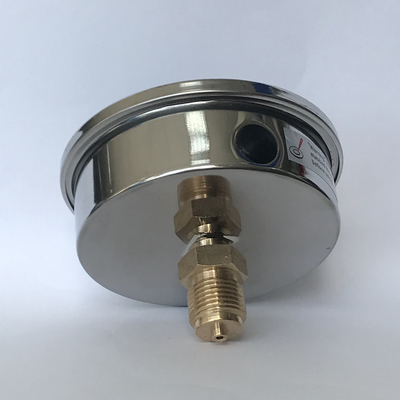

100mm 230 psi Anti-seismic Manometer Stainless Steel Case Liquid-filled Pressure Gauge

100mm 230 psi Anti-seismic Manometer Stainless Steel Case Liquid-filled Pressure Gauge
100mm 230 psi Anti-seismic Manometer Stainless Steel Case Liquid-filled Pressure Gauge 100mm 230 psi Anti-seismic Manometer Stainless Steel Case Liquid-filled Pressure Gauge 100mm 230 psi Anti-seismic Manometer Stainless Steel Case Liquid-filled Pressure Gauge 100mm 230 psi Anti-seismic Manometer Stainless Steel Case Liquid-filled Pressure Gauge 100mm 230 psi Anti-seismic Manometer Stainless Steel Case Liquid-filled Pressure Gauge

Large Image :  100mm 230 psi Anti-seismic Manometer Stainless Steel Case Liquid-filled Pressure Gauge

Product Details:
Place of Origin: China
Brand Name: WESEN or Customized
Certification: CE, ISO
Model Number: M03.02.100.N
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~4 Weeks
Payment Terms: T/T
Supply Ability: 20000 Pieces per Month

100mm 230 psi Anti-seismic Manometer Stainless Steel Case Liquid-filled Pressure Gauge

Description
Size: 100mm Mount: Center Back
Pressure Range: 230 Psi Or Customized Case Material: Stainless Steel 304
Lens Material: Instrument Glass Bourton Tube: Phosphor Bronze
Movement: Brass Dial: Aluminum, Dual Scale
Accuracy: 1.6 Liquid: Silicone Oil

100mm 230 psi Anti-seismic Manometer Stainless Steel Case Liquid-filled Pressure Gauge

Description
Liquid-filled gauges enhance the reliability and integrity of the measuring system for long periods under extreme operating conditions.
Allowable Operating Range - Temperature range in which the operation of the gauge is not adversely affected by the filling liquid. At temperatures above the maximum rating, the fluid may break down. At temperatures below the minimum rating, the fluid may solidify (freeze).

Applications
For measuring locations with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts
Hydraulics
Compressors, shipbuilding
​​
Special features
Vibration and shock-resistant
Especially robust design
Completely from stainless steel
Scale ranges up to 0 ... 1000 bar


Specifications

Design

EN 837-1

Nominal size

100mm

Accuracy

1.6, 1.0
Pressure range350 psi (customized)

Pressure limitation

40mm, 50mm, 63mm:
Steady: 3/4 x full scale value  Fluctuating: 2/3 x full scale value  Short time: full scale value
100mm:
Steady: full scale value  Fluctuating: 0.9 x full scale value  Short time: 1.3 x full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Mediium: +60 °C maximum

Ingress protection

IP65

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

Brass

Pressure element

Brass, C-type or helical type
MovementBrass
DialAluminium, colorful, without pointer stop pin
Black lettering
PointerAluminium
CaseStainless steel
RingStainless steel
WindowPlastic, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa

ThreadG, BSP, PT, BSPT, NPT
OptionsOther process connection thread
Surface mounting flange
Mounting bracket


Dimensions
100mm 230 psi Anti-seismic Manometer Stainless Steel Case Liquid-filled Pressure Gauge 0

SizeDimensions in mmWeight in kg
abb2D1D2efGhSW
5012305555505.5-1/4"48140.15
6313325668626.5-1/4"54140.21
10015.54881.51071008301/2"87220.80


Ordering information
Model / Dial size / Pressure Range / Process connection / Options
