Product Details:
|
| Size: | 100mm | Mount: | Panel Mounting |
|---|---|---|---|
| Pressure Range: | 3500 Psi Or Customized | Case Material: | Stainless Steel 304 |
| Lens Material: | Instrument Glass | Bourton Tube: | Phosphor Bronze |
| Movement: | Brass | Dial: | Aluminum, Dual Scale |
| Accuracy: | 1.6 | Liquid: | Silicone Oil, Glycerin |

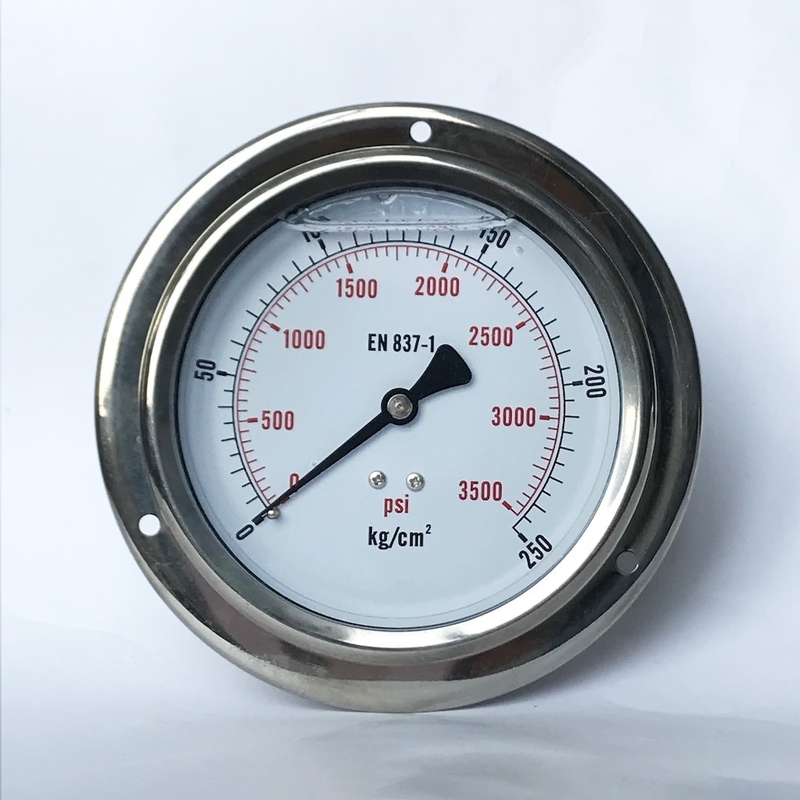

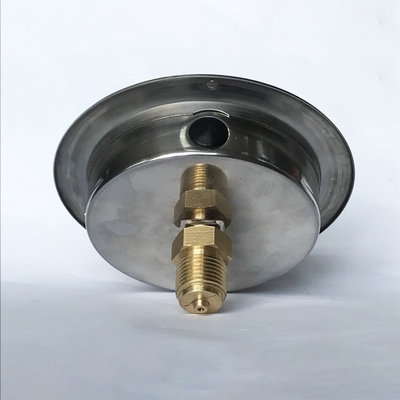

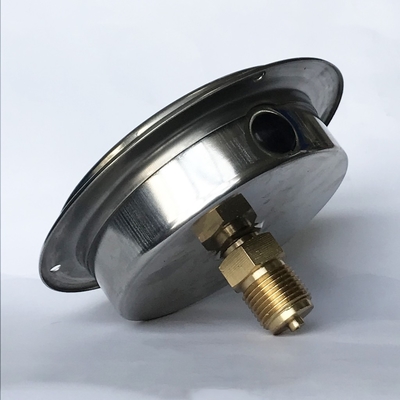

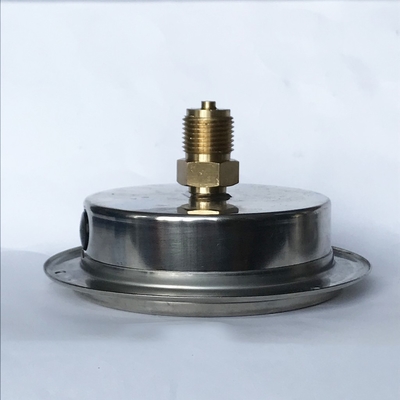

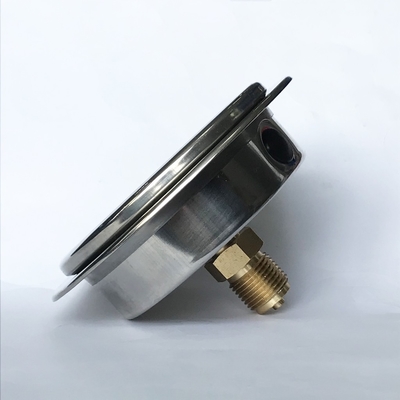

100mm 3500 psi Oil Manometer with Flange Panel Mount Liquid-filled Pressure Gauge
Description
The higher the liquid viscosity, the greater its dampening capacity. The reason for this is that dampening changes in proportion to the temperature-dependent viscosity of the filling liquid. The suitable degree of dampening depends on the operating requirements the gauge must meet, such as pointer response time, pressure extremes, vibration and changes in pressure. WESEN can recommend specific liquids to suit problem applications.
Applications
For measuring locations with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts
Hydraulics
Compressors, shipbuilding
Special features
Vibration and shock-resistant
Especially robust design
Completely from stainless steel
Scale ranges up to 0 ... 1000 bar
Design | EN 837-1 |
Nominal size | 100mm |
Accuracy | 1.6, 1.0 |
| Pressure range | 3500 psi (customized) |
Pressure limitation | 40mm, 50mm, 63mm: |
| Permissible temperature | Ambient: -20 ... +60 °C |
Ingress protection | IP65 |
Temperature effect | When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
Process connection | Brass |
Pressure element | Brass, C-type or helical type |
| Movement | Brass |
| Dial | Aluminium, colorful, without pointer stop pin Black lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Ring | Stainless steel |
| Window | Plastic, glass, safety glass |
| Unit | bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection thread Surface mounting flange Mounting bracket |
Dimensions
| Size | Dimensions in mm | Weight in kg | |||||||||
| a | b | b2 | D1 | D2 | e | f | G | h | SW | ||
| 50 | 12 | 30 | 55 | 55 | 50 | 5.5 | - | 1/4" | 48 | 14 | 0.15 |
| 63 | 13 | 32 | 56 | 68 | 62 | 6.5 | - | 1/4" | 54 | 14 | 0.21 |
| 100 | 15.5 | 48 | 81.5 | 107 | 100 | 8 | 30 | 1/2" | 87 | 22 | 0.80 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
