Product Details:
|
| Size: | 60mm | Mount: | Back Mounting |
|---|---|---|---|
| Pressure Range: | 400 Bar Or Customized | Case Material: | Stainless Steel 304 |
| Lens Material: | Instrument Glass | Bourton Tube: | Phosphor Bronze |
| Movement: | Brass | Dial: | Aluminum, Dual Scale |
| Accuracy: | 1.5 | Liquid: | Silicone Oil, Glycerin |

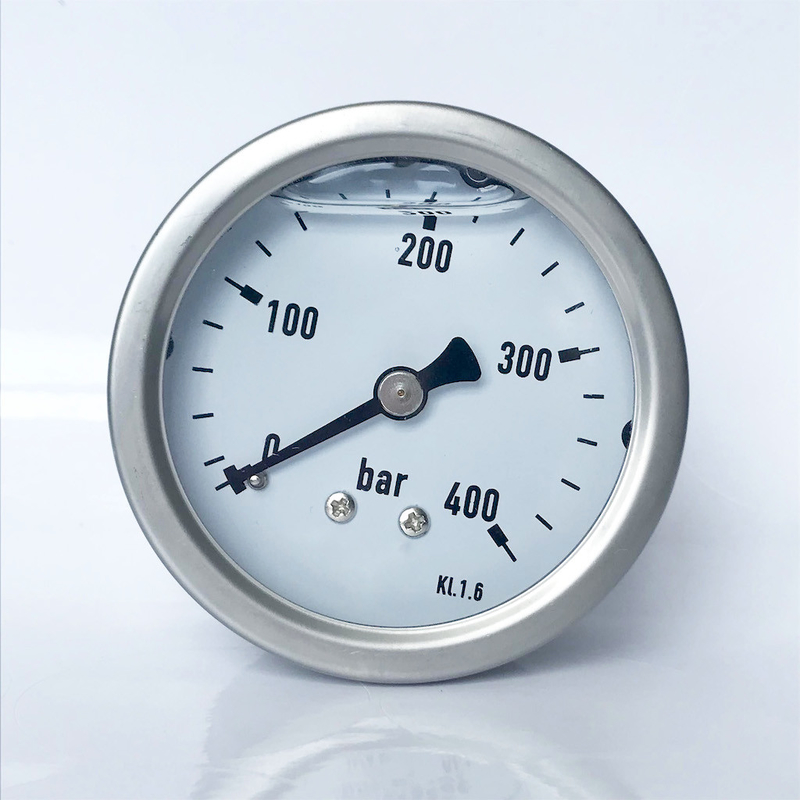

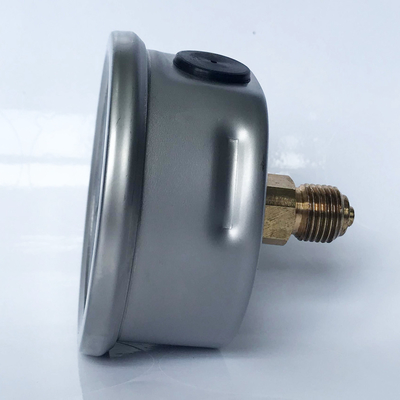

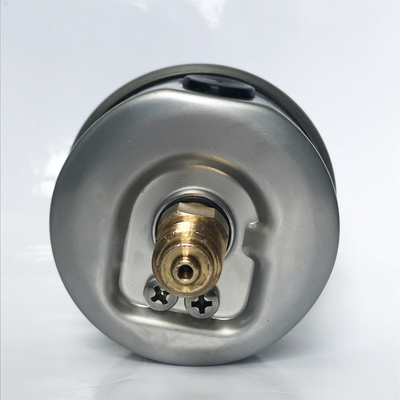

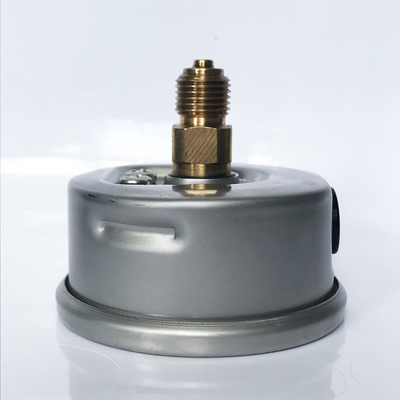

60mm 400 bar Silicone Oil Filled Manometer Brass Connection Liquid-filled Pressure Gauge
Description
Liquid filled pressure gauges are designed to function in adverse conditions where pulsating pressure or vibration exists. A shock resistant Stainless Steel case protect the gauges which features phosphor bronze bourdon tube movement and a white aluminum dial with large numbers for easy reading. Range 0-300 psi. Glycerin filled.
Applications
For measuring locations with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts
Hydraulics
Compressors, shipbuilding
Special features
Vibration and shock-resistant
Especially robust design
Completely from stainless steel
Scale ranges up to 0 ... 1000 bar
|
Design |
EN 837-1 |
|
Nominal size |
60mm |
|
Accuracy |
1.6, 1.0 |
| Pressure range | 1.6MPa (customized) |
|
Pressure limitation |
40mm, 50mm, 63mm: Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value 100mm: Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value |
| Permissible temperature |
Ambient: -20 ... +60 °C Mediium: +60 °C maximum |
|
Ingress protection |
IP65 |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Brass |
|
Pressure element |
Brass, C-type or helical type |
| Movement | Brass |
| Dial | Aluminium, colorful, without pointer stop pin Black lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Ring | Stainless steel |
| Window | Plastic, glass, safety glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection thread Surface mounting flange Mounting bracket |
Dimensions
| Size | Dimensions in mm | Weight in kg | |||||||||
| a | b | b2 | D1 | D2 | e | f | G | h | SW | ||
| 50 | 12 | 30 | 55 | 55 | 50 | 5.5 | - | 1/4" | 48 | 14 | 0.15 |
| 63 | 13 | 32 | 56 | 68 | 62 | 6.5 | - | 1/4" | 54 | 14 | 0.21 |
| 100 | 15.5 | 48 | 81.5 | 107 | 100 | 8 | 30 | 1/2" | 87 | 22 | 0.80 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
