Product Details:
|
| Size: | 40mm | Mount: | Bottom, Radial |
|---|---|---|---|
| Pressure Range: | 1 Bar Or Customized | Color: | Metallic |
| Case Material: | Stainless Steel | Window: | PC Or Glass |
| Movement: | Brass | Dial: | Aluminum |
| Accuracy: | 2.5 | Deaign: | EN837-1 |
| High Light: | 40mm Stainless Steel Pressure Gauge,1 bar Stainless Steel Pressure Gauge,Axial Mounting pressure gauge glycerine |
||

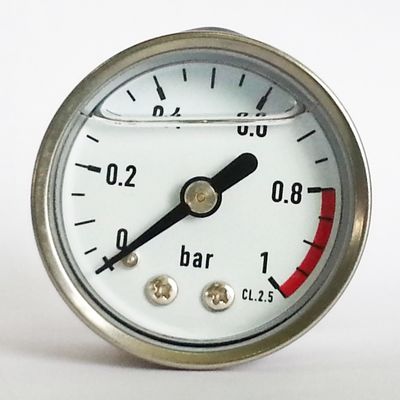

40mm 1 bar Axial Mounting Stainless Steel Pressure Gauge Glycerin Filling
Description
To put it simply, liquid filling a pressure gauge is strictly used as an inexpensive way to steady the needle and lubricate the internals of a gauge during applications with vibration. The most common fill fluids used are Glycerin and Silicone. Glycerin is used in around 95% of all liquid filling applications and is typically the “standard.” The reason these fluids are used is because they’re more viscous and their thickness helps keep the needle steady. Some gauges come dry but can be filled simply by filling the hermetically sealed gauge case through the fill port (usually at the top) and then reinserting the fill plug when finished.
Applications
Suitable for gaseous or liquid media that will not obstruct the pressure system
Machine building and plant construction
Heating and air-conditioning technology
Fire sprinkler systems
Special features
Design per EN 837-1
Nominal size 40, 50, 63, 80, 100 and 160
Scale ranges up to 0 ... 1000 bar
|
Design |
EN 837-1 |
|
Nominal size |
40mm |
|
Accuracy |
2.5 |
| Pressure range | 1 bar (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
|
Permissible temperature |
Ambient: -40 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of full scale |
|
Process connection |
Brass |
|
Pressure element |
Brass, C-type |
| Movement | Brass |
| Dial | Aluminium, white, without pointer stop pin Black/red lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Window | Plastic, glass |
| Options |
Other process connection thread |
Dimensions
Model M02.01, lower mount (radial)
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
