Product Details:
|
| Size: | 40mm | Mount: | Panel Mounting |
|---|---|---|---|
| Pressure Range: | 100 Psi Or Customized | Color: | Metallic |
| Case Material: | Stainless Steel | Window: | PC Or Glass |
| Movement: | Brass | Dial: | Aluminum |
| Accuracy: | 2.5 | Deaign: | EN837-1 |
| High Light: | 100 psi glycerin pressure gauge,40mm glycerin pressure gauge,Arch Bracket glycerine filled pressure gauge |
||

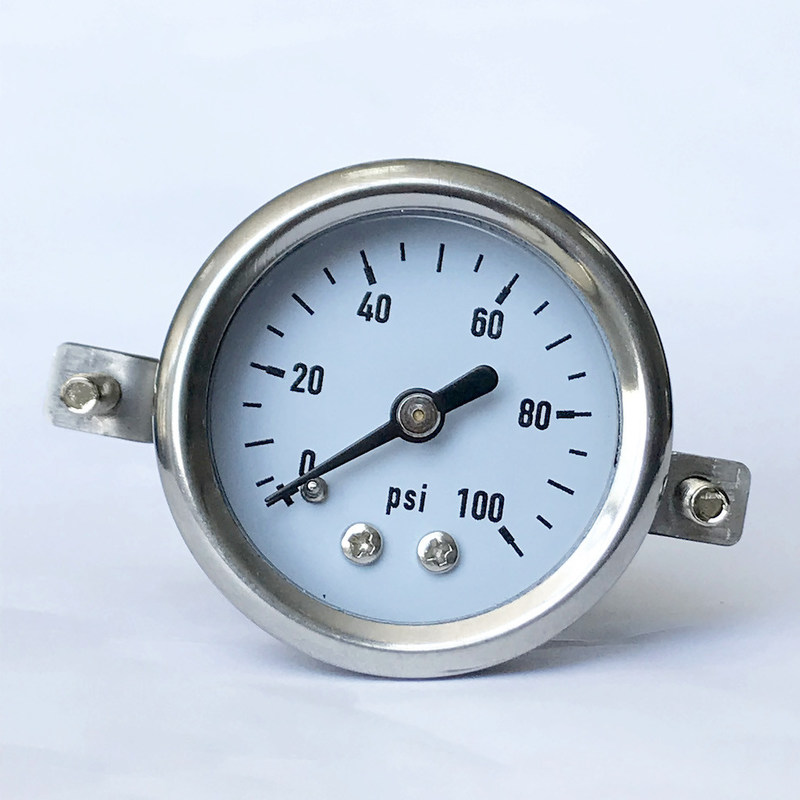

40mm 100 psi Arch Bracket Panel Mounting Stainless Steel Pressure Gauge Glycerin Filling
Description
It steadies the needle. Without liquid filling the gauge, the needle would bounce erratically making it difficult to pinpoint where the needle is exactly pointing on the gauge.
It’s an inexpensive solution and in many cases comes standard on a gauge.
It helps increase the life of the gauges by dampening as well as lubricating the mechanical parts of a pressure gauge.
Applications
Suitable for gaseous or liquid media that will not obstruct the pressure system
Machine building and plant construction
Heating and air-conditioning technology
Fire sprinkler systems
Special features
Design per EN 837-1
Nominal size 40, 50, 63, 80, 100 and 160
Scale ranges up to 0 ... 1000 bar
|
Design |
EN 837-1 |
|
Nominal size |
40mm |
|
Accuracy |
2.5 |
| Pressure range | 100 psi (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
|
Permissible temperature |
Ambient: -40 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of full scale |
|
Process connection |
Brass |
|
Pressure element |
Brass, C-type |
| Movement | Brass |
| Dial | Aluminium, white, without pointer stop pin Black/red lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Window | Plastic, glass |
| Options |
Other process connection thread |
Dimensions
Model M02.01, lower mount (radial)
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
