Product Details:
|
| Size: | 63mm, 2.5" | Mount: | Center Back |
|---|---|---|---|
| Pressure Range: | 10 Bar Or Customized | Case Material: | Black Steel |
| Lens Material: | PC | Bourton Tube: | Phosphor Bronze |
| Movement: | Copper Alloy | Dial: | White Background, Black Lettering |
| Accuracy: | 2.5 | Deaign: | EN837-1 |
| High Light: | 17 bar 10 bar pressure gauge,63mm 10 bar pressure gauge,EN837-1 center back mount pressure gauge |
||

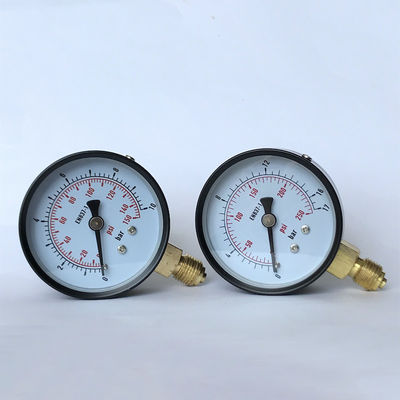

2.5" 63mm 10 bar 17 bar Water Jet Cutting Utility Pressure Gauge
Description
Two major groups of pressure gauges exist: analog pressure gauges and digital pressure gauges. This division is important to take note of since these two types of gauges operate and display information somewhat differently. Analog gauges are “traditional” pressure gauges which display information with a needle that changes position on a meter’s clock-like face (in proportion to changes in pressure).
Applications
For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.
Pneumatics
Heating and air-conditioning technology
Medical engineering
Special features
Reliable and cost-effective
Design per EN 837-1
Nominal size 40, 50, 63, 80, 100 and 160
Scale ranges up to 0 ... 400 bar
|
Design |
EN 837-1 |
|
Nominal size |
50mm, 2" |
|
Accuracy |
2.5 |
| Pressure range | 15 kg/cm2 (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
|
Permissible temperature |
Ambient: -20 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Brass |
|
Pressure element |
Brass, C-type or helical type
Bourdon tube |
| Movement | Brass |
| Dial | Aluminium, white, with pointer stop pin Black/red lettering |
| Pointer | Aluminium |
| Case | Black steel |
| Window | PC |
| Options |
Other process connection |
Dimensions
lower mount (radial)
| Dial Size | Dimensions in mm | Weight in kg | |||||
| a | b | D | G | h | SW | ||
| 40 | 9.5 | 26 | 39 | G1/4 | 36 | 14 | 0.08 |
| 50 | 10 | 27.5 | 49 | G1/4 | 45 | 14 | 0.10 |
| 63 | 9.5 | 27.5 | 62 | G1/4 | 53.5 | 14 | 0.13 |
| 80 | 11.5 | 30 | 79 | G1/2 | 72 | 22 | 0.18 |
| 100 | 11.5 | 30.5 | 99 | G1/2 | 83.5 | 22 | 0.21 |
| 160 | 15.5 | 42 | 160 | G1/2 | 115.5 | 22 | 0.85 |
back mount (axial)
| Dial Size | Dimensions in mm | Weight in kg | ||||
| b1 | b2 | D | G | SW | ||
| 40 | 26 | 42 | 39 | G1/8 | 14 | 0.06 |
| 50 | 29.5 | 47.5 | 49 | G1/4 | 14 | 0.07 |
| 63 | 29 | 47 | 62 | G1/4 | 14 | 0.08 |
| 80 | 32 | 49 | 79 | G1/4 | 14 | 0.11 |
| 100 | 31 | 49 | 99 | G1/4 | 14 | 0.26 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
