Product Details:
|
| Deaign: | EN837-1 | Size: | 40mm |
|---|---|---|---|
| Mount: | Center Back | Pressure Range: | -100 KPa, Vacuum |
| Case Material: | ABS | Lens Material: | PC |
| Bourton Tube: | Phosphor Bronze | Movement: | Copper Alloy |
| Dial: | Aluminum | Color: | Black |
| High Light: | 40mm plastic pressure gauge,1 bar plastic pressure gauge,ABS center back mount pressure gauge |
||

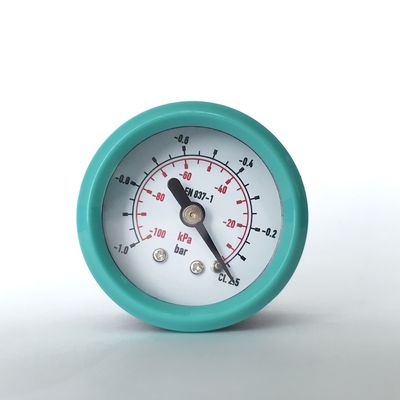

40mm -1 bar Plastic Case Brass Connection Vacuum Pressure Gauge
Description
Water pressure gauges (naturally) monitor the pressure of any water-based system. Quite commonly, they are found attached to tanks, where they monitor the pressure of the water within.
Gas pressure gauges measure and display gas pressure. They are especially prevalent in factories and manufacturing facilities, where they keep track of the flow rate of both high and low pressure natural gas and propane-based systems. Fuel pressure gauges also check gas pressure levels, but they do so in the context of automobiles. They measure and display the fuel supply, or amount of gas, left in a vehicle tank.
Applications
Practically all industries make use of vacuum, from pick and place in the automotive industry, food & beverage, manufacturing, pharmaceutical, chemical, nautical, etc. The vacuum gauges are important devices to ensure optimal performance and safety of the system. They may be used for pick-and-place applications, keeping the workplace clean from pollutants, transport materials, etc.
Special features
Reliable and cost-effective
Design per EN 837-1
Nominal size 40, 50, 63, 80, 100 and 160
|
Design |
EN 837-1 |
|
Nominal size |
40mm |
|
Accuracy |
2.5, 1.6 |
| Pressure range | -100 kPa vacuum (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
|
Permissible temperature |
Ambient: -20 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Brass |
|
Pressure element |
Brass, C-type or helical type |
| Movement | Brass |
| Dial | Aluminium, white, with pointer stop pin Black/red lettering |
| Pointer | Aluminium |
| Case | ABS |
| Window | Plastic, glass |
| Options |
Other process connection |
Dimensions
lower mount (radial)
| Dial Size | Dimensions in mm | Weight in kg | |||||
| a | b | D | G | h | SW | ||
| 40 | 9.5 | 26 | 39 | G1/4 | 36 | 14 | 0.08 |
| 50 | 10 | 27.5 | 49 | G1/4 | 45 | 14 | 0.10 |
| 63 | 9.5 | 27.5 | 62 | G1/4 | 53.5 | 14 | 0.13 |
| 80 | 11.5 | 30 | 79 | G1/2 | 72 | 22 | 0.18 |
| 100 | 11.5 | 30.5 | 99 | G1/2 | 83.5 | 22 | 0.21 |
| 160 | 15.5 | 42 | 160 | G1/2 | 115.5 | 22 | 0.85 |
back mount (axial)
| Dial Size | Dimensions in mm | Weight in kg | ||||
| b1 | b2 | D | G | SW | ||
| 40 | 26 | 42 | 39 | G1/8 | 14 | 0.06 |
| 50 | 29.5 | 47.5 | 49 | G1/4 | 14 | 0.07 |
| 63 | 29 | 47 | 62 | G1/4 | 14 | 0.08 |
| 80 | 32 | 49 | 79 | G1/4 | 14 | 0.11 |
| 100 | 31 | 49 | 99 | G1/4 | 14 | 0.26 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
