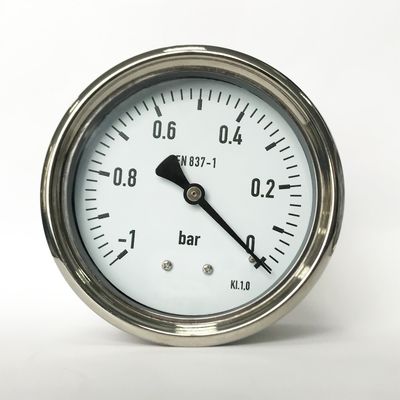

PC Lens Pressure Gauge Vacuum 100mm 1 Bar Low Pressure Vacuum Gauge

Description
Deaign: EN837-1 Size: 100mm
Mount: Lower Back Mount Pressure Range: -1 Bar, Vacuum
Case Material: Stainless Steel Lens Material: PC
Bourton Tube: Stainless Steel Movement: Stainless Steel
Dial: Aluminum Color: Metallic
High Light:

PC Lens pressure gauge vacuum

,

100mm pressure gauge vacuum

,

1 bar low pressure vacuum gauge

100mm 4" -1 bar Lower Back Connection Manometer Stanless Steel Vacuum Pressure Gauge



Description

It is important to note that the different types of chambers utilized by pressure gauges correspond to different ideals concerning pressure conditions. Bourdon type gauges are especially useful for medium to high pressure environments. However, they do not work well for low pressure scenarios. Gauges which utilize bellows and diaphragm chambers, on the other hand, are well suited to sensing low amounts of pressure and incremental changes within them.



Applications

Practically all industries make use of vacuum, from pick and place in the automotive industry, food & beverage, manufacturing, pharmaceutical, chemical, nautical, etc. The vacuum gauges are important devices to ensure optimal performance and safety of the system. They may be used for pick-and-place applications, keeping the workplace clean from pollutants, transport materials, etc.



Special features

Reliable and cost-effective

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160



Specifications

Design

EN 837-1

Nominal size

100mm

Accuracy

2.5, 1.6
Pressure range -1 bar vacuum (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +60 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

SS

Pressure element

SS, C-type or helical type
Movement SS
Dial Aluminium, white, with pointer stop pin
Black/red lettering
Pointer Aluminium
Case SS
Window Plastic, glass
Options

Other process connection
Surface mounting flange
Mounting bracket



Dimensions

lower mount (radial)

PC Lens Pressure Gauge Vacuum 100mm 1 Bar Low Pressure Vacuum Gauge 0



Dial Size Dimensions in mm Weight in kg
a b D G h SW
40 9.5 26 39 G1/4 36 14 0.08
50 10 27.5 49 G1/4 45 14 0.10
63 9.5 27.5 62 G1/4 53.5 14 0.13
80 11.5 30 79 G1/2 72 22 0.18
100 11.5 30.5 99 G1/2 83.5 22 0.21
160 15.5 42 160 G1/2 115.5 22 0.85



back mount (axial)

PC Lens Pressure Gauge Vacuum 100mm 1 Bar Low Pressure Vacuum Gauge 1



Dial Size Dimensions in mm Weight in kg
b1 b2 D G SW
40 26 42 39 G1/8 14 0.06
50 29.5 47.5 49 G1/4 14 0.07
63 29 47 62 G1/4 14 0.08
80 32 49 79 G1/4 14 0.11
100 31 49 99 G1/4 14 0.26



Ordering information

Model / Dial size / Pressure Range / Process connection / Options



PC Lens Pressure Gauge Vacuum 100mm 1 Bar Low Pressure Vacuum Gauge 2
