Product Details:
|
| Deaign: | EN837-1 | Size: | 50mm |
|---|---|---|---|
| Mount: | Bottom, Radial | Pressure Range: | 100 Psi Or Customized |
| Case Material: | Painted Steel | Lens Material: | Instruments Glass, PC |
| Bourton Tube: | Brass | Movement: | Brass |
| Dial: | Aluminum | Accuracy: | 2.5, 1.6 |
| High Light: | SUV mechanical tyre pressure gauge,50mm Car Tyre Pressure Gauge,100 psi Black hose pressure gauge |
||

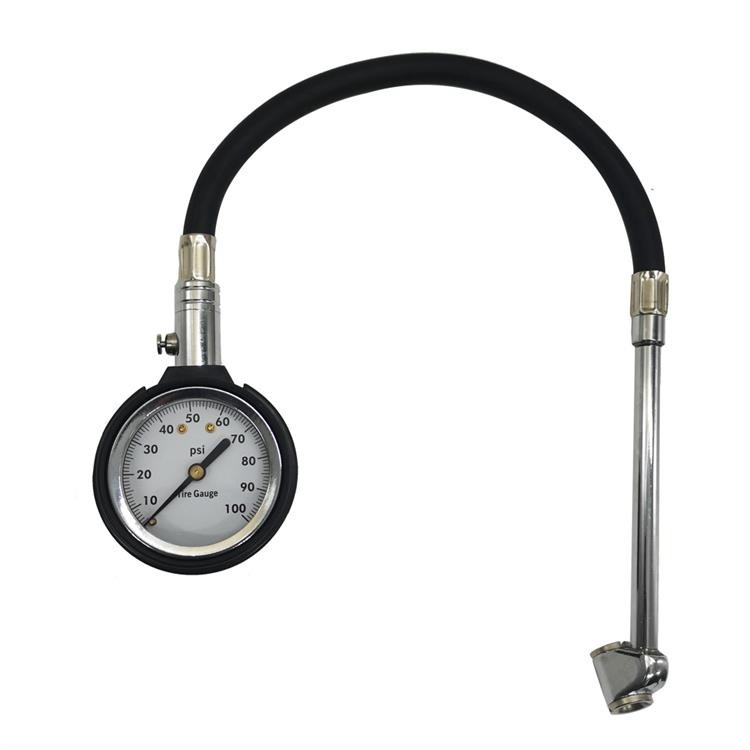

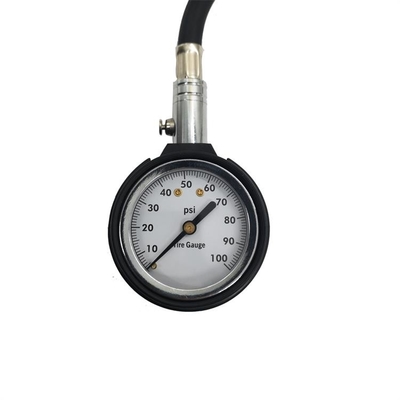

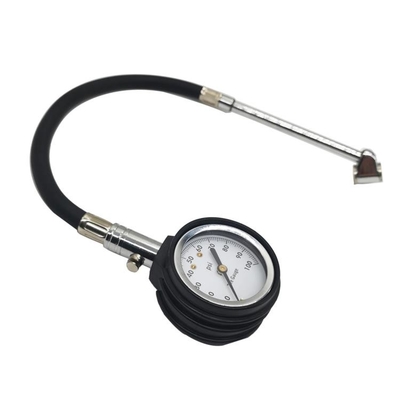

2" 100 psi Black Hose Heavy Duty Mechanical Car Tyre Pressure Gauge for for Car, SUV, Truck & Motorcycle
Description
Easy to read large scale dial with a 45 degree angled and fully swivelling chuck. Tire pressure too high? Our built in relief valve allows you to press the bleed button whilst the gauge is still on the tire valve, releasing air until you reach the exact target required.
Special features
Mechanical design, no batteries needed
Reliable performance, robust body with rubber cover
360 degree swive, easy to operate
Durable air valve button
|
Design |
EN 837-1 |
|
Nominal size |
50mm |
|
Accuracy |
2.5 |
| Pressure range | 100 psi (customized) |
|
Working pressure |
Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value |
| Usage circumstances |
Indoor, outdoors |
|
Ingress protection |
IP66 |
|
Temperature effect |
When the temperature at the measuring system deviates from the reference temperature +20 °C [+68 °F]: ≤ ±0.4 %/10 °C [≤ ±0.4 %/18 °F] of full scale value |
|
Process connection |
Painted steel |
|
Pressure element |
Bourdon tube |
| Movement | Brass |
| Dial | Aluminium |
| Pointer | Aluminium |
| Case | Painted steel |
| Window | PC |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | Customized |
| Options | Other process connections |
Operating Instructions
Use the vehicle's recommended pressure, do not exceed the "max pressure" figure found on the tire sidewall.
Check pressure when tires are cold and have sat for at least one hour.
Removing cap from inflation valve, place the gauge chuck firmly onto tire valve stem and press down evenly. If air escapes, apply more pressure until air stops escaping.
Remove gauge from valve stem to read tire pressure.
If tire pressure is too high, refit the tire pressure gauge to valve stem then gently press pressure release button until recommended pressure is reached.
If tire pressure is low, inflate to the recommended pressure then recheck.
Store tire pressure gauge in a safe, dust free area.
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
