Product Details:
|
| Deaign: | EN837-1 | Size: | 50mm |
|---|---|---|---|
| Mount: | Bottom, Radial | Pressure Range: | 100 Psi Or Customized |
| Case Material: | Painted Steel | Lens Material: | Instruments Glass, PC |
| Bourton Tube: | Brass | Movement: | Brass |
| Dial: | Aluminum | Accuracy: | 2.5, 1.6 |
| High Light: | EN837-1 truck tire pressure gauge,100 psi truck tire pressure gauge,Radial car pressure gauge |
||

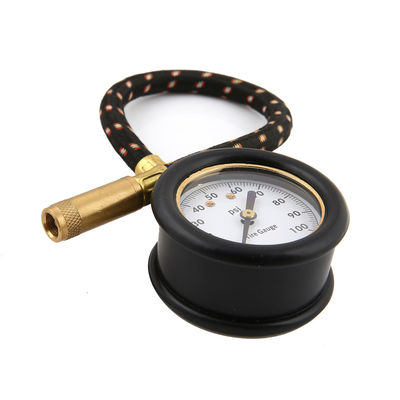

2'' Dial Mechanical Tire Pressure Gauge 100psi Car Tire Gauges with Rubber Hose
Description
WESEN Tire Pressure Gauge helps you maintain correct tire pressure, reduce tire wear and extend tire life. Suitable for Cars, SUVs, RVs, ATVs, Trucks, Motorcycles, and Bikes; Reduce wear and tear and extend the lifetime of tires.
Special features
Mechanical design, no batteries needed
Reliable performance, robust body with rubber cover
360 degree swive, easy to operate
Durable air valve button
|
Design |
EN 837-1 |
|
Nominal size |
50mm |
|
Accuracy |
2.5 |
| Pressure range | 100 psi (customized) |
|
Working pressure |
Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value |
| Usage circumstances |
Indoor, outdoors |
|
Ingress protection |
IP66 |
|
Temperature effect |
When the temperature at the measuring system deviates from the reference temperature +20 °C [+68 °F]: ≤ ±0.4 %/10 °C [≤ ±0.4 %/18 °F] of full scale value |
|
Process connection |
Painted steel |
|
Pressure element |
Bourdon tube |
| Movement | Brass |
| Dial | Aluminium |
| Pointer | Aluminium |
| Case | Painted steel |
| Window | PC |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | Customized |
| Options | Other process connections |
Operating Instructions
Use the vehicle's recommended pressure, do not exceed the "max pressure" figure found on the tire sidewall.
Check pressure when tires are cold and have sat for at least one hour.
Removing cap from inflation valve, place the gauge chuck firmly onto tire valve stem and press down evenly. If air escapes, apply more pressure until air stops escaping.
Remove gauge from valve stem to read tire pressure.
If tire pressure is too high, refit the tire pressure gauge to valve stem then gently press pressure release button until recommended pressure is reached.
If tire pressure is low, inflate to the recommended pressure then recheck.
Store tire pressure gauge in a safe, dust free area.
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
