Product Details:
|
| Size: | 63mm | Mount: | Center Back |
|---|---|---|---|
| Temperature Range: | 0-100 °C Or Customized | Case Material: | SUS 304 |
| Connection: | PT, NPT, G, BSP | Stem Dia.: | 6mm, 8mm, 10mm |
| Stem Length: | 30cm (customized) | Lens: | PC Glass |
| Color: | Silver | Accuracy: | 1.0 |
| High Light: | 63mm bimetallic temperature gauge,100C bimetallic temperature gauge,Solar collectors bimetallic actuated thermometers |
||

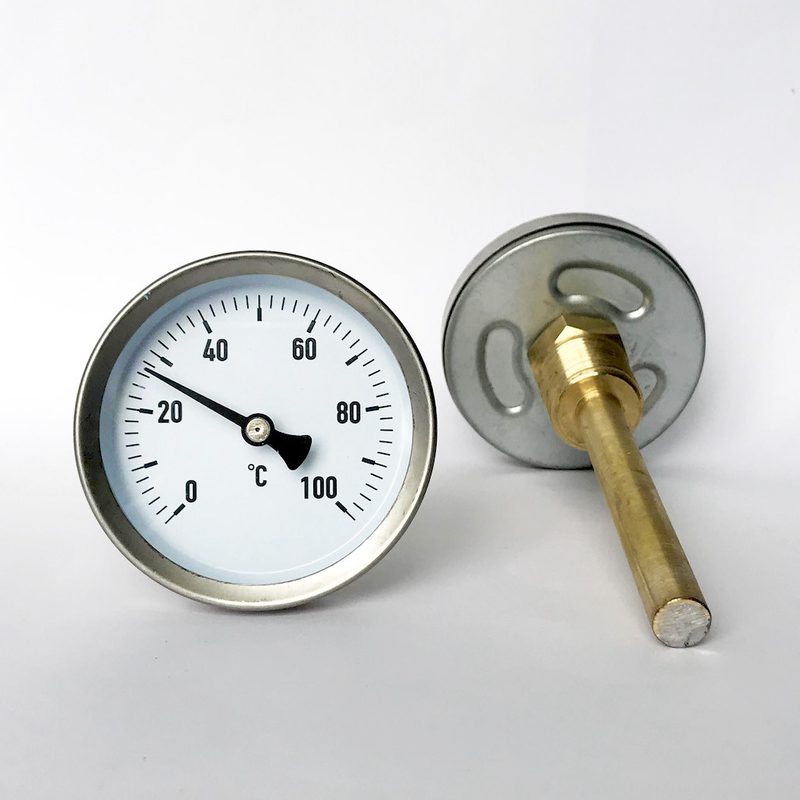

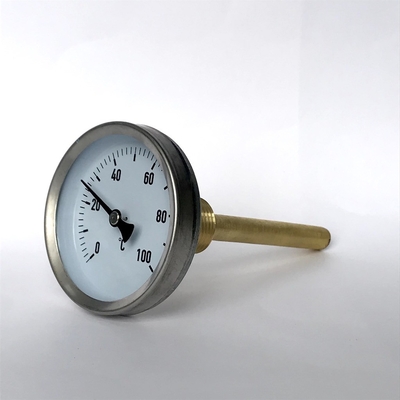

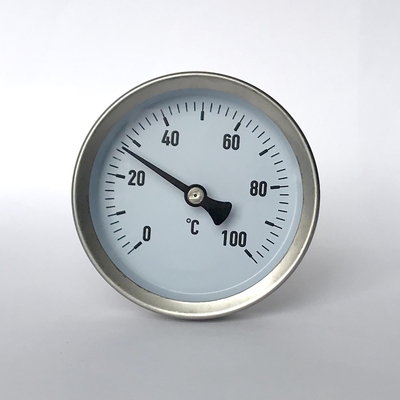

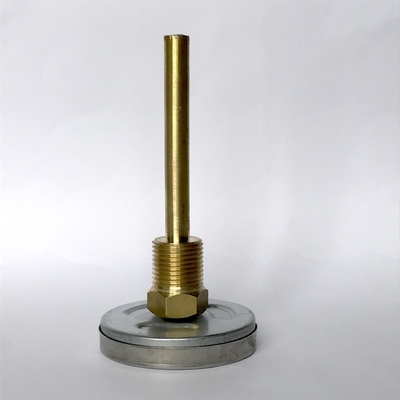

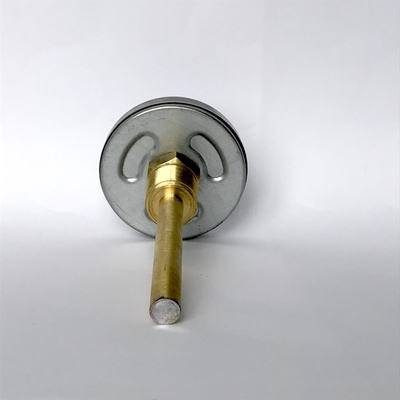

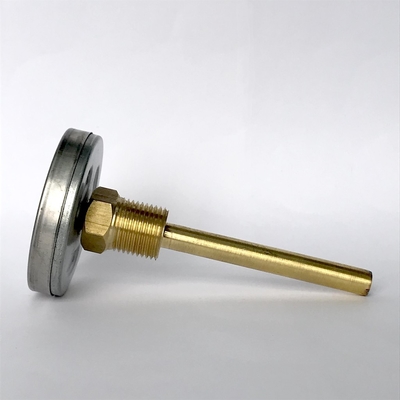

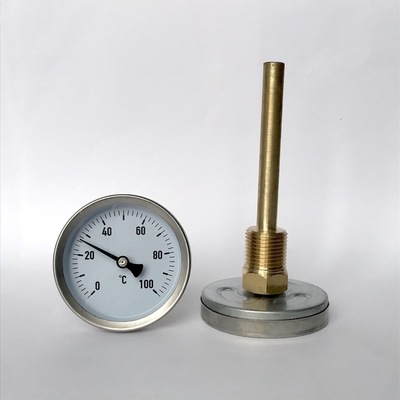

63mm 0-100 °C Stainless Steel Bimetal Thermometer For Solar collectors
Description
A bimetallic thermometer is a temperature measurement device. It converts the media’s temperature into mechanical displacement using a bimetallic strip. The bimetallic strip consists of two different metals having different coefficients of thermal expansion. Bimetallic thermometers are used in residential devices like air conditioners, ovens, and industrial devices like heaters, hot wires, refineries, etc. They are a simple, durable, and cost-efficient way of temperature measurement.
Applications
Heating systems
Hot water tanks
Solar collectors
Heat transfer stations
Special features
Reliable and cost-effective
Indication accuracy class 2 in accordance with EN 13190
Scale ranges from -30 ... +120 °C
|
Nominal size |
63mm, 80mm, 100mm |
|
Accuracy |
1.0 |
| Temperature range | 0-100 °C (customized) |
|
Working range |
Full scale value |
|
Case |
Steel |
|
Measuring element |
Bimetal coil |
| Connection location | Back mount |
| Stem | Aluminium |
| Thermowell | Copper alloy, removable, friction fit |
| Dial | Aluminium |
| Window | Plastic, glass |
| Options |
Other scale ranges |
Ordering information
Model / Dial size / Scale Range / Process connection / Stem dia. & length / Options
