Product Details:
|
| Size: | 100mm | Mount: | Radial |
|---|---|---|---|
| Temperature Range: | 50 °C Or Customized | Case Material: | SUS 304 |
| Connection: | PT, NPT, G, BSP | Stem Dia.: | 6mm, 8mm, 10mm |
| Stem Length: | 30cm (customized) | Lens: | PC Glass |
| Color: | Silver | Accuracy: | 1.0 |
| High Light: | Bayonet Ring stainless steel thermometer,Oil Gas stainless steel thermometer,100mm bimetal dial thermometer |
||

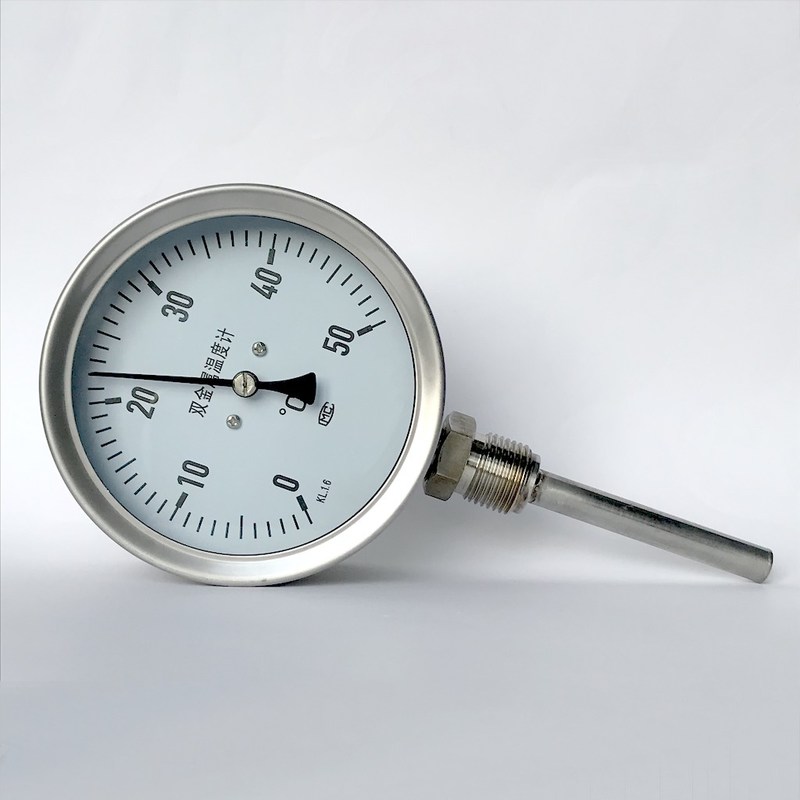

100mm 0-50 °C Bayonet Ring All Stainless Steel Bimetal Thermometer For Oil And Gas Industries
Description
The model M14 gas-actuated thermometer has been developed and is manufactured in accordance with the EN 13190 standard. This high-quality thermometer has been designed especially for the requirements of the process industry. The thermometer, completely manufactured from stainless steel, is used particularly successfully in the chemical and petrochemical, oil and gas, and power engineering industries.
To allow optimum fitting to the process, individual insertion lengths and process connections are available. The thermometers have a high ingress protection of IP65 and can be used in outdoor applications even at negative temperatures. With liquid dampening operation under high vibration conditions is possible. Due to the wide variety of possible designs, the model 73 gas-actuated thermometers can be perfectly adapted to any process connection or location.
Applications
General process instrumentation in the chemical and petrochemical industries, oil and gas industries, energy and water/wastewater industries
Universally suitable for machine building, plant, tank, equipment manufacturing and food industry
Temperature measurement without medium contact
Mounting in instrument boards, control cabinets, control panels
Special features
Scale ranges from -200 ... +700 °C [-328 ... 1.292 °F]
Fast response behaviour
Case and stem from stainless steel
Various connection and case mounting designs
|
Nominal size |
100mm |
|
Accuracy |
1.0 |
| Temperature range | 0-50 °C (customized) |
|
Working range |
Full scale value |
|
Case |
Steel |
|
Measuring element |
Bimetal coil |
| Connection location | Bottom mount |
| Stem | Stainless Steel |
| Thermowell | Copper alloy, removable, friction fit |
| Dial | Aluminium |
| Window | Plastic, glass |
| Options |
Other scale ranges |
Ordering information
Model / Dial size / Scale Range / Process connection / Stem dia. & length / Options
