Product Details:
|
| Size: | 63mm | Mount: | Center Back |
|---|---|---|---|
| Temperature Range: | 0-120 °C Or Customized | Case Material: | SUS 304 |
| Connection: | PT, NPT, G, BSP | Stem Dia.: | 6mm, 8mm, 10mm |
| Stem Length: | 30cm (customized) | Lens: | PC Glass |
| Color: | Silver | Accuracy: | 1.0 |
| High Light: | Stainless Steel bi metal temperature gauge,120C bi metal temperature gauge,Heating metal stem thermometer |
||

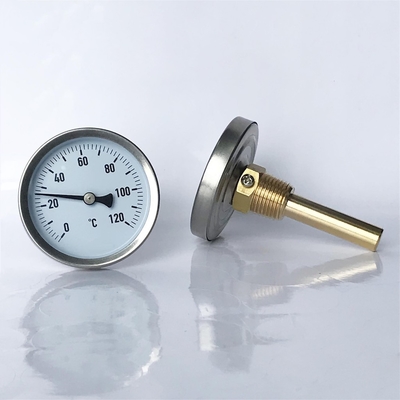

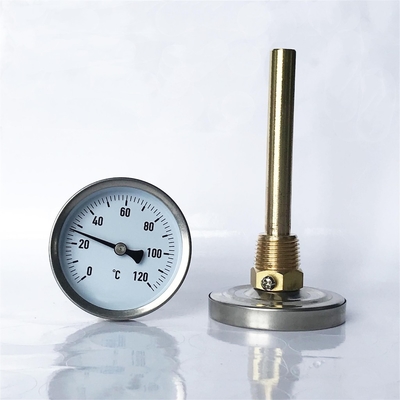

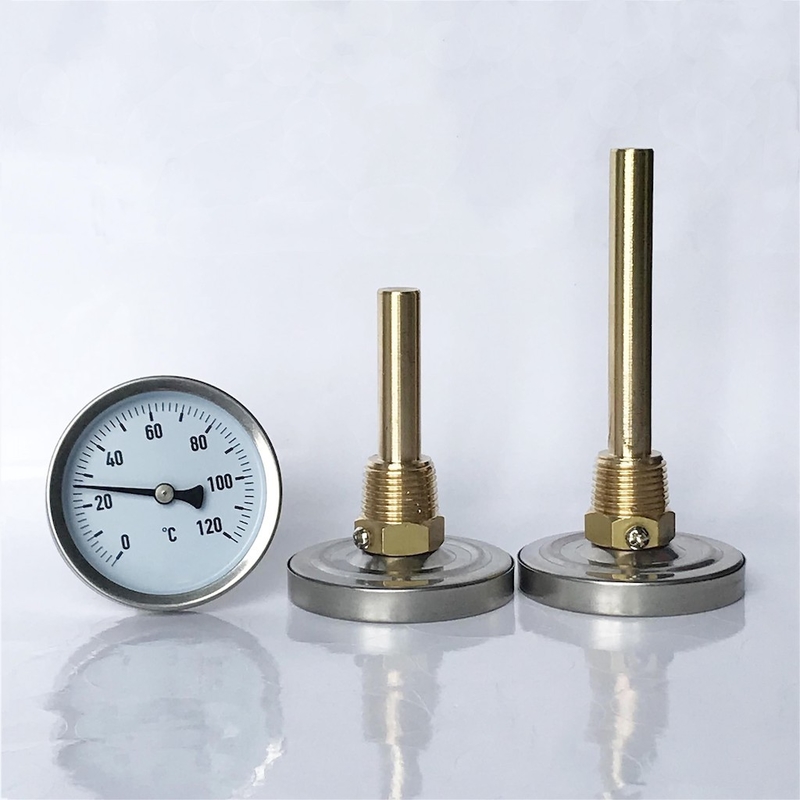

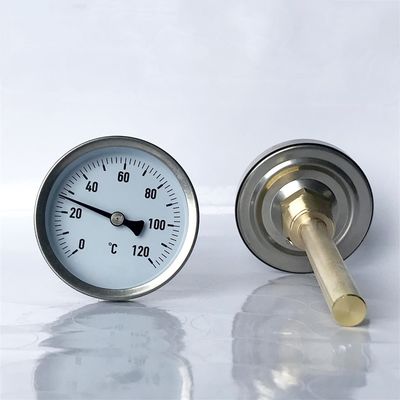

63mm 0-120 °C Stainless Steel Bimetal Thermometer For Heating Technology
Description
Bimetal thermometers work on the principle that different metals expand at different rates as they are heated. By using two strips of different metals in a thermometer, the movement of the strips correlates to temperature and can be indicated along a scale. This is a simple, durable and inexpensive way to measure temperature.
Applications
Heating systems
Hot water tanks
Solar collectors
Heat transfer stations
Special features
Reliable and cost-effective
Indication accuracy class 2 in accordance with EN 13190
Scale ranges from -30 ... +120 °C
|
Nominal size |
63mm, 80mm, 100mm |
|
Accuracy |
1.0 |
| Temperature range | 0-120 °C (customized) |
|
Working range |
Full scale value |
|
Case |
Steel |
|
Measuring element |
Bimetal coil |
| Connection location | Back mount |
| Stem | Brass |
| Thermowell | Copper alloy, removable, friction fit |
| Dial | Aluminium |
| Window | Plastic, glass |
| Options |
Other scale ranges |
Ordering information
Model / Dial size / Scale Range / Process connection / Stem dia. & length / Options
