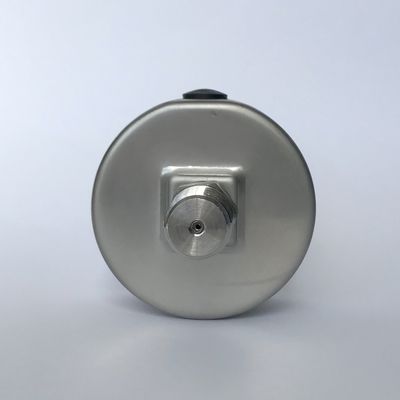

2" 160 psi Axial Mount Manometer 1/4" NPT Oil Filling All Stainless Steel Pressure Gauge

2" 160 psi Axial Mount Manometer 1/4" NPT Oil Filling All Stainless Steel Pressure Gauge
2" 160 psi Axial Mount Manometer 1/4" NPT Oil Filling All Stainless Steel Pressure Gauge 2" 160 psi Axial Mount Manometer 1/4" NPT Oil Filling All Stainless Steel Pressure Gauge 2" 160 psi Axial Mount Manometer 1/4" NPT Oil Filling All Stainless Steel Pressure Gauge 2" 160 psi Axial Mount Manometer 1/4" NPT Oil Filling All Stainless Steel Pressure Gauge

Large Image :  2" 160 psi Axial Mount Manometer 1/4" NPT Oil Filling All Stainless Steel Pressure Gauge

Product Details:
Place of Origin: China
Brand Name: WESEN or Customized
Certification: CE, ISO
Model Number: M02.02.50.N
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~4 Weeks
Payment Terms: T/T
Supply Ability: 20000 Pieces per Month

2" 160 psi Axial Mount Manometer 1/4" NPT Oil Filling All Stainless Steel Pressure Gauge

Description
Deaign: EN837-1 Size: 50mm
Mount: Axial Direction Pressure Range: 160 Psi Or Customized
Case Material: SS 316L Lens Material: Glass, Safety Glass
Bourton Tube: SS 316L Movement: SS 304
Dial: Aluminum Accuracy: KL 1.0

2" 160 psi Axial Mount Manometer 1/4" NPT Oil Filling All Stainless Steel Pressure Gauge



Description
This robust, liquid filled Pressure Gauge is used for heavy duty service where vibration or pulsation of the pressure might cause excessive wear of a dry gauge, or where corrosive ambient conditions or fluid prevail.



Applications

Intended for adverse service conditions where pulsating or vibration exists

Chemical and petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction

Suitable for gaseous or liquid media that will not obstruct the pressure system



Special features

Excellent load cycle stability and shock resistance

Design per EN 837-1

Completely from stainless steel

Pressure ranges up to 15,000 psi



Specifications

Design

EN 837-1

Nominal size

50mm

Accuracy

1.0
Pressure range 160 psi (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value

Medium temperature

Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F]

Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F]

Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F]

Ambiet temperature

Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F]

Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F]

Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F]

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

Stainless steel, SUS 304, SUS 316

Pressure element

Stainless steel, C-type or helical type
Movement Stainless steel
Dial Aluminium, white, with pointer stop pin
Black lettering
Pointer Aluminium
Case Stainless steel
Ring Rolling ring, stainless steel
Window Plastic, glass
Unit

bar, psi, kg/cm2, kPa, MPa

Thread G, BSP, PT, BSPT, NPT
Options Other process connection
Surface mounting flange
Mounting bracket



Dimensions



2" 160 psi Axial Mount Manometer 1/4" NPT Oil Filling All Stainless Steel Pressure Gauge 0





Ordering information

Model / Dial size / Pressure Range / Process connection / Options



2" 160 psi Axial Mount Manometer 1/4" NPT Oil Filling All Stainless Steel Pressure Gauge 1
