Product Details:
|
| Deaign: | EN837-1 | Size: | 100mm |
|---|---|---|---|
| Mount: | Bottom | Pressure Range: | 300 Psi Or Customized |
| Case Material: | SS 316L | Lens Material: | Glass, Safety Glass |
| Bourton Tube: | SS 316L | Movement: | SS 304 |
| Dial: | Aluminum | Accuracy: | KL 1.0 |

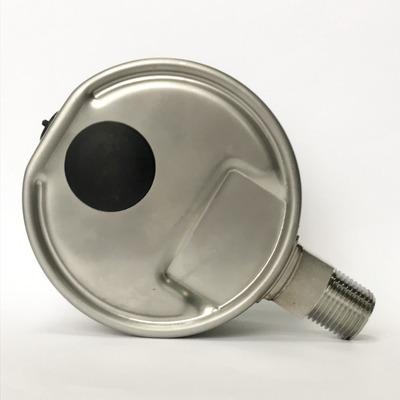

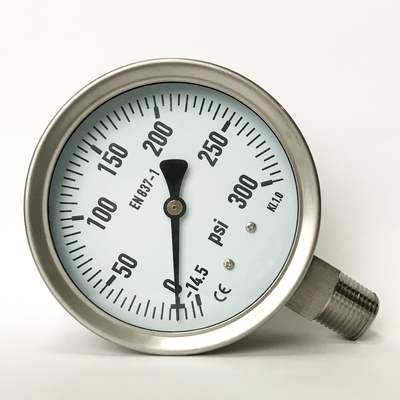

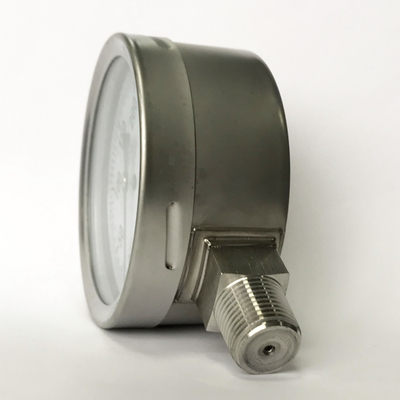

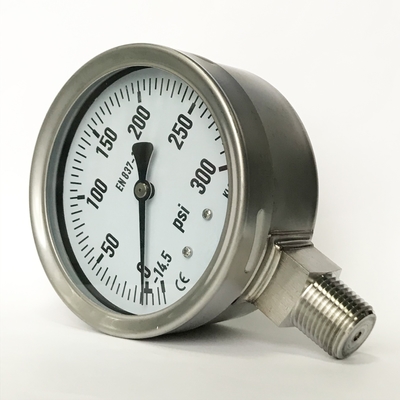

4" 300 psi Radial Direction Connection Manometer 1/2" NPT Vacuum All Stainless Steel Pressure Gauge
Description
The 4" gauge is suitable where ambient corrosion is a major concern. Its stainless steel case and ring offer good appearance and excellent resistance to chemical, weather and corrosion attack. This type has many optional features that allow a user to develop a basic or special product specification. The 1009 is part of the extensive line of Wesen stainless steel pressure gauges.
The gauge is available dry, liquid-filled weatherproof or hermetically sealed.
Applications
Intended for adverse service conditions where pulsating or vibration exists
Chemical and petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction
Suitable for gaseous or liquid media that will not obstruct the pressure system
Special features
Excellent load cycle stability and shock resistance
Design per EN 837-1
Completely from stainless steel
Pressure ranges up to 15,000 psi
|
Design |
EN 837-1 |
|
Nominal size |
100mm |
|
Accuracy |
1.0 |
| Pressure range | 300 psi (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
| Medium temperature |
Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F] Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F] Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F] |
|
Ambiet temperature |
Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F] Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F] Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F] |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Stainless steel, SUS 304, SUS 316 |
|
Pressure element |
Stainless steel, C-type or helical type |
| Movement | Stainless steel |
| Dial | Aluminium, white, with pointer stop pin Black lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Ring | Rolling ring, stainless steel |
| Window | Plastic, glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection Surface mounting flange Mounting bracket |
Dimensions
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
