Product Details:
|
| Deaign: | EN837-1 | Size: | 160mm |
|---|---|---|---|
| Mount: | Bottom Mount | Pressure Range: | 16 Bar Or Customized |
| Case Material: | 316 SS | Lens Material: | Glass, Safety Glass |
| Bourton Tube: | 316 SS | Movement: | 304 SS |
| Socket: | 316 SS | Accuracy: | KL 1.0 |

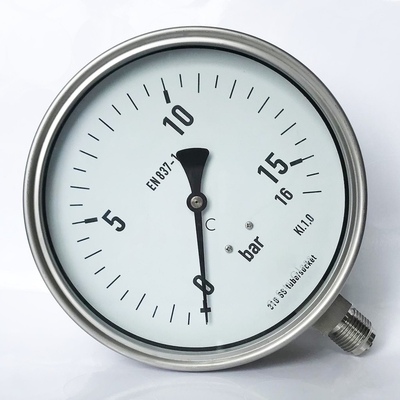

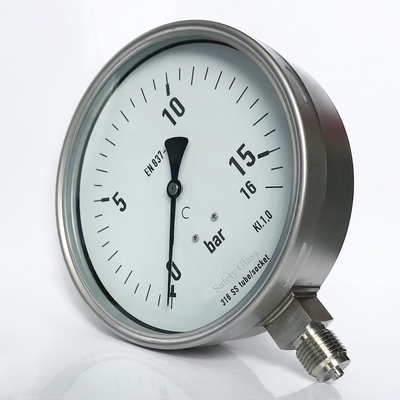

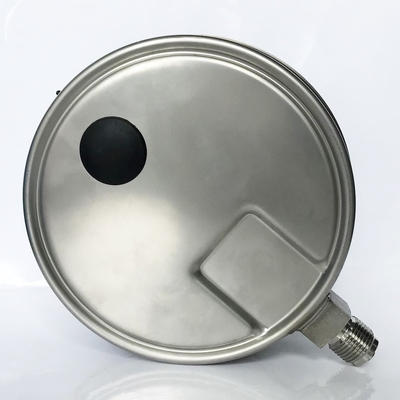

6 Inches Dial 16 bar Manometer 316 SS Tube/Socket All Stainless Steel Pressure Gauge Glycerin Filled
Description
Where vibration, corrosion and pulsating conditions exist, the Wesen line of stainless steel cased liquid filled industrial pressure gauges are designed to meet the most severe applications.
Some recommended uses are for agricultural equipment, hydraulic systems, oil field equipment, pumps, compressors and car wash systems. All liquid filled gauges are offered for direct mounting to the equipment, wall or panel mounting. With ranges from Vacuum to 15,000 psi, the Weiss line will provide the instrument for both the specific requirement of the OEM and the industrial user.
Applications
Intended for adverse service conditions where pulsating or vibration exists
Chemical and petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction
Suitable for gaseous or liquid media that will not obstruct the pressure system
Special features
Excellent load cycle stability and shock resistance
Design per EN 837-1
Completely from stainless steel
Pressure ranges up to 15,000 psi
|
Design |
EN 837-1 |
|
Nominal size |
160mm |
|
Accuracy |
1.0 |
| Pressure range | 16 bar (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
| Medium temperature |
Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F] Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F] Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F] |
|
Ambiet temperature |
Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F] Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F] Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F] |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Stainless steel, SUS 304, SUS 316 |
|
Pressure element |
Stainless steel, C-type or helical type |
| Movement | Stainless steel |
| Dial | Aluminium, white, with pointer stop pin Black and red lettering |
| Pointer | Aluminium, adjustable type |
| Case | Stainless steel |
| Ring | Bayonet ring, stainless steel |
| Window | Plastic, glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | 1/2 3/8 G, BSP, PT, BSPT, NPT |
| Options | Other process connection Surface mounting flange Mounting bracket |
Dimensions
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
