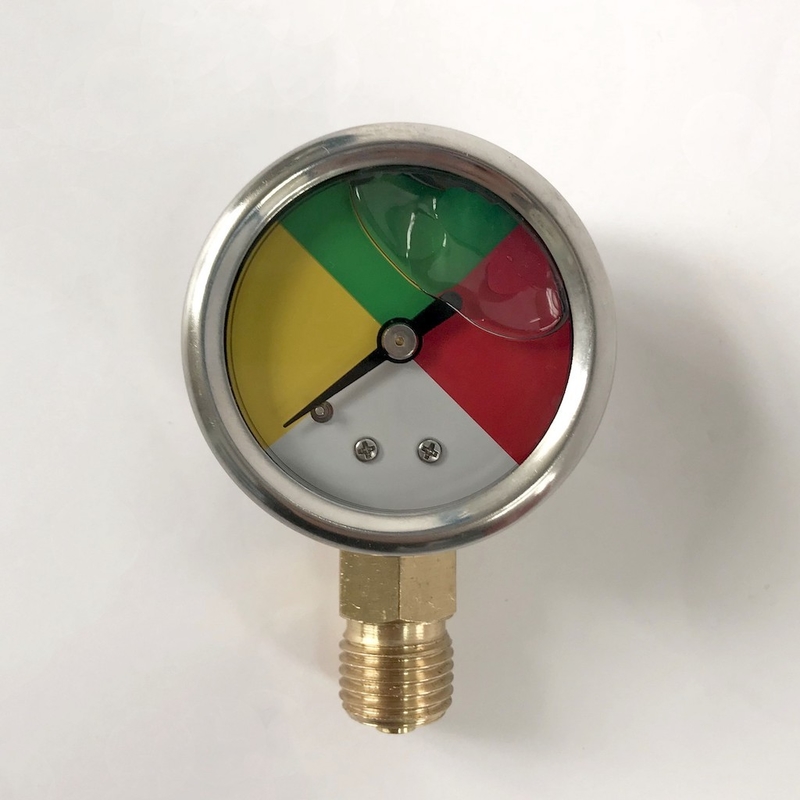

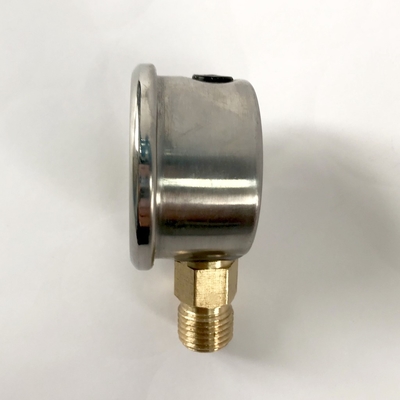

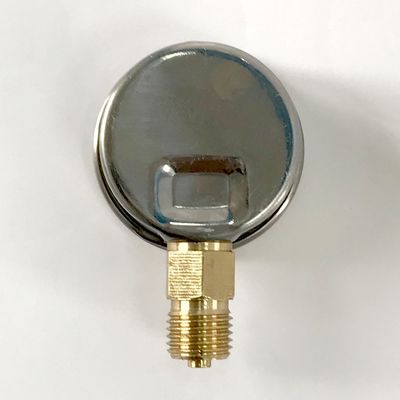

Glycerin 2 Inch Bottom Mount Pressure Gauge Block Dial Manometer 40mm

Certification
China Wesen Technologies (Shanghai) Co., Ltd. certification
China Wesen Technologies (Shanghai) Co., Ltd. certification
I'm Online Chat Now

Glycerin 2 Inch Bottom Mount Pressure Gauge Block Dial Manometer 40mm

Glycerin 2 Inch Bottom Mount Pressure Gauge Block Dial Manometer 40mm
Glycerin 2 Inch Bottom Mount Pressure Gauge Block Dial Manometer 40mm Glycerin 2 Inch Bottom Mount Pressure Gauge Block Dial Manometer 40mm Glycerin 2 Inch Bottom Mount Pressure Gauge Block Dial Manometer 40mm

Large Image :  Glycerin 2 Inch Bottom Mount Pressure Gauge Block Dial Manometer 40mm

Product Details:
Place of Origin: China
Brand Name: WESEN or Customized
Certification: CE, ISO
Model Number: M03.01.50.N
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~4 Weeks
Payment Terms: T/T
Supply Ability: 20000 Pieces per Month

Glycerin 2 Inch Bottom Mount Pressure Gauge Block Dial Manometer 40mm

Description
Size: 40mm Mount: Bottom
Pressure Range: Customized Case Material: 316 SS, 304 SS
Lens Material: Instrument Glass Bourton Tube: Phosphor Bronze
Movement: Brass Dial: Aluminum, Dual Scale
Accuracy: 1.6 Liquid: Silicone Oil, Glycerin
High Light:

glycerin bottom mount pressure gauge

,

Dial Manometer bottom mount pressure gauge

,

40mm 2 inch pressure gauge

2 Inches Color Block Dial Manometer 1/4 PT Bottom Mount Liquid Filled Pressure Gauge



Description

Liquid filled gauges that have 2 parts glycerine with 1 part water can be used in temperatures as low as -46 degrees C. These types of gauges are ideal for locations that have extremely cold circumstances. For example, regions that have harsher winter temperatures may consider this type of gauge. Most liquid filled gauges are completely airtight which allows them to perform in corrosive environments and are resistant to moisture intrusion and icing.



Applications



For measuring locations with high dynamic pressure loads and vibrations

For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts

Hydraulics

Compressors, shipbuilding

​​

Special features

Vibration and shock-resistant

Especially robust design

Completely from stainless steel

Scale ranges up to 0 ... 1000 bar



Specifications

Design

EN 837-1

Nominal size

50mm

Accuracy

Acc.1.6
Pressure range Customized

Pressure limitation

40mm, 50mm, 63mm:

Steady: 3/4 x full scale value  Fluctuating: 2/3 x full scale value  Short time: full scale value

100mm:

Steady: full scale value  Fluctuating: 0.9 x full scale value  Short time: 1.3 x full scale value

Permissible temperature

Ambient: -20 ... +60 °C

Mediium: +60 °C maximum

Ingress protection

IP65

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

Brass

Pressure element

Brass, C-type or helical type
Movement Brass
Dial Aluminium, colorful, without pointer stop pin
Black lettering
Pointer Aluminium
Case Stainless steel
Ring Stainless steel
Window Plastic, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa

Thread 1/4 G, BSP, PT, BSPT, NPT
Options Other process connection thread
Surface mounting flange
Mounting bracket



Dimensions

Glycerin 2 Inch Bottom Mount Pressure Gauge Block Dial Manometer 40mm 0

Size Dimensions in mm Weight in kg
a b b2 D1 D2 e f G h SW
50 12 30 55 55 50 5.5 - 1/4" 48 14 0.15
63 13 32 56 68 62 6.5 - 1/4" 54 14 0.21
100 15.5 48 81.5 107 100 8 30 1/2" 87 22 0.80



Ordering information

Model / Dial size / Pressure Range / Process connection / Options



Glycerin 2 Inch Bottom Mount Pressure Gauge Block Dial Manometer 40mm 1
