| Size: | 63mm | Mount: | Radial |
|---|---|---|---|
| Pressure Range: | 50 Kg/cm2 Or Customized | Case Material: | 316 SS, 304 SS |
| Lens Material: | Instrument Glass | Bourton Tube: | Phosphor Bronze |
| Movement: | Brass | Dial: | Aluminum |
| Accuracy: | 1.6 | Liquid: | Silicone Oil, Glycerin |
| High Light: | Radial Mount Liquid Filled Pressure Gauge,1/4 NPT Liquid Filled Pressure Gauge,50 kg/cm2 npt pressure gauge |
||

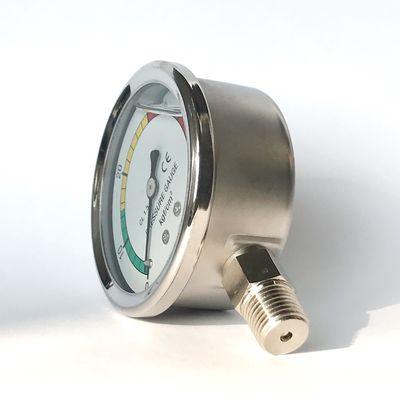

2.5 Inches 50 kg/cm2 Oil Manometer 1/4" NPT Nickled Brass Radial Mount Liquid Filled Pressure Gauge
Description
Liquid filled pressure gauges from Compressed Air Systems can provide you with consistently accurate readings – a necessity when both safety and efficiency are on the line. Also, because they are built to be durable, you can count on them to last long into the future.
Applications
For measuring locations with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts
Hydraulics
Compressors, shipbuilding
Special features
Vibration and shock-resistant
Especially robust design
Completely from stainless steel
Scale ranges up to 0 ... 1000 bar
|
Design |
EN 837-1 |
|
Nominal size |
63mm |
|
Accuracy |
Acc.1.6 |
| Pressure range | 50 kg/cm2 (customized) |
|
Pressure limitation |
40mm, 50mm, 63mm: Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value 100mm: Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value |
| Permissible temperature |
Ambient: -20 ... +60 °C Mediium: +60 °C maximum |
|
Ingress protection |
IP65 |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Brass |
|
Pressure element |
Brass, C-type or helical type |
| Movement | Brass |
| Dial | Aluminium, colorful, with pointer stop pin Black lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Ring | Stainless steel |
| Window | Plastic, glass, safety glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | 1/4 G, BSP, PT, BSPT, NPT |
| Options | Other process connection thread Surface mounting flange Mounting bracket |
Dimensions
| Size | Dimensions in mm | Weight in kg | |||||||||
| a | b | b2 | D1 | D2 | e | f | G | h | SW | ||
| 50 | 12 | 30 | 55 | 55 | 50 | 5.5 | - | 1/4" | 48 | 14 | 0.15 |
| 63 | 13 | 32 | 56 | 68 | 62 | 6.5 | - | 1/4" | 54 | 14 | 0.21 |
| 100 | 15.5 | 48 | 81.5 | 107 | 100 | 8 | 30 | 1/2" | 87 | 22 | 0.80 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
