Product Details:
|
| Size: | 63mm | Mount: | Radial |
|---|---|---|---|
| Pressure Range: | 6 Bar Or Customized | Case Material: | 316 SS, 304 SS |
| Lens Material: | Instrument Glass | Bourton Tube: | Phosphor Bronze |
| Movement: | Brass | Dial: | Aluminum |
| Accuracy: | 1.0 | Liquid: | Silicone Oil, Glycerin |
| High Light: | 316 SS Liquid Filled Pressure Gauge,Bottom Mount Liquid Filled Pressure Gauge,2.5 Inches 6 bar oil manometer |
||

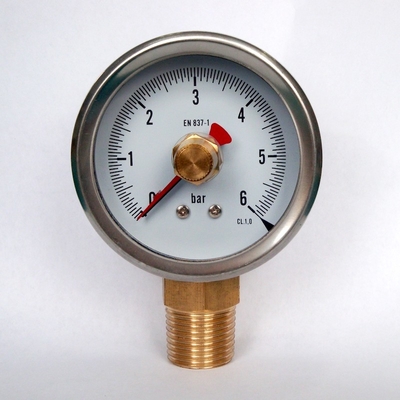

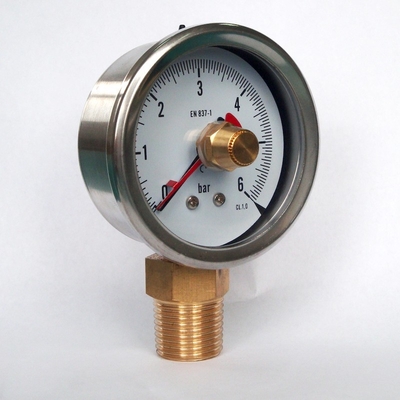

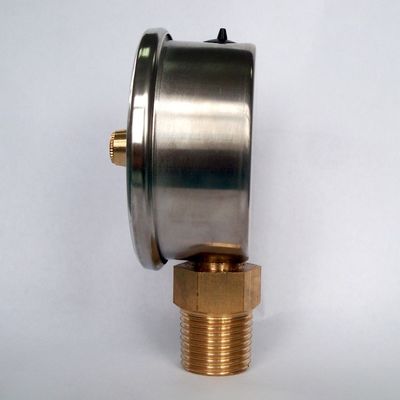

2.5 Inches 6 bar Oil Manometer 1/4" NPT Bottom Mount Liquid Filled Pressure Gauge
Description
All of our pressure gauges come with an assortment of available features, so you select the right one for your system. For instance, we have gauges with dial sizes ranging from 1½ to 4 inches, connections from 1/8 to ½ inch, and maximum pressure ratings from 15 to 6000psi. We also offer dry utility pressure gauges and stainless steel pressure gauges, as well as other air compressor accessories, such as regulators, air hoses, piping, fittings, and hose reels.
Applications
For measuring locations with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts
Hydraulics
Compressors, shipbuilding
Special features
Vibration and shock-resistant
Especially robust design
Completely from stainless steel
Scale ranges up to 0 ... 1000 bar
Design | EN 837-1 |
Nominal size | 63mm |
Accuracy | Acc.1.0 |
| Pressure range | 6 bar (customized) |
Pressure limitation | 40mm, 50mm, 63mm: |
| Permissible temperature | Ambient: -20 ... +60 °C |
Ingress protection | IP65 |
Temperature effect | When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
Process connection | Brass |
Pressure element | Brass, C-type or helical type |
| Movement | Brass |
| Dial | Aluminium, colorful, with pointer stop pin Black lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Ring | Stainless steel |
| Window | Plastic, glass, safety glass |
| Unit | bar, psi, kg/cm2, kPa, MPa |
| Thread | 1/4 G, BSP, PT, BSPT, NPT |
| Options | Other process connection thread Surface mounting flange Mounting bracket |
Dimensions
| Size | Dimensions in mm | Weight in kg | |||||||||
| a | b | b2 | D1 | D2 | e | f | G | h | SW | ||
| 50 | 12 | 30 | 55 | 55 | 50 | 5.5 | - | 1/4" | 48 | 14 | 0.15 |
| 63 | 13 | 32 | 56 | 68 | 62 | 6.5 | - | 1/4" | 54 | 14 | 0.21 |
| 100 | 15.5 | 48 | 81.5 | 107 | 100 | 8 | 30 | 1/2" | 87 | 22 | 0.80 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
