Product Details:
|
| Deaign: | EN837-1 | Size: | 100mm |
|---|---|---|---|
| Mount: | Bottom | Pressure Range: | 2500 Bar Or Customized |
| Case Material: | SUS 316 | Lens Material: | Glass, Safety Glass |
| Bourton Tube: | SUS 316 | Movement: | SUS 304 |
| Socket: | SUS 316 | Accuracy: | KL 1.0 |

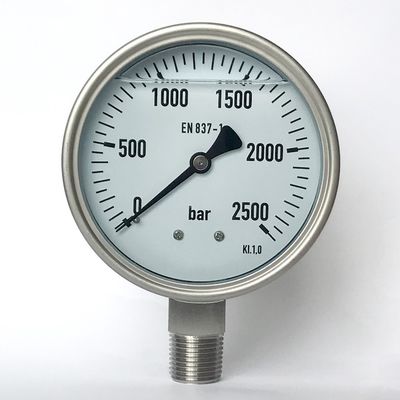

4" 2500 bar Bayonet Ring Manometer SUS 316 Tube/Socket 1/2 BSP All Stainless Steel Pressure Gauge
Description
The stainless steel pressure gauge is a product of high quality. The stainless steel pressure systems are all provided with seamless drawn tube which reduces the chance of tube rupture. All gauges have the connection welded into the case and is produced according to the international standard EN837. They can be supplied with 3.1, Nace and calibration certificates. The most safe stainless steel pressure gauge is the solid front type with baffle wall and blow out protection.
Applications
Intended for adverse service conditions where pulsating or vibration exists
Chemical and petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction
Suitable for gaseous or liquid media that will not obstruct the pressure system
Special features
Excellent load cycle stability and shock resistance
Design per EN 837-1
Completely from stainless steel
Pressure ranges up to 15,000 psi
|
Design |
EN 837-1 |
|
Nominal size |
100mm |
|
Accuracy |
Class 1.0 |
| Pressure range | 2500 bar (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
| Medium temperature |
Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F] Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F] Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F] |
|
Ambiet temperature |
Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F] Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F] Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F] |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Stainless steel, SUS 304, SUS 316 |
|
Pressure element |
Stainless steel, C-type or helical type |
| Movement | Stainless steel |
| Dial | Aluminium, white, with pointer stop pin Black and red lettering |
| Pointer | Aluminium, adjustable type |
| Case | Stainless steel |
| Ring | Bayonet ring, stainless steel |
| Window | Plastic, glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | 1/2 G, BSP, PT, BSPT, NPT |
| Options | Other process connection Surface mounting flange Mounting bracket |
Dimensions
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
