1000 Mbar Center Back Connection Pressure Gauge 63mm Vacuum Acrylic Lens

1000 Mbar Center Back Connection Pressure Gauge 63mm Vacuum Acrylic Lens
1000 Mbar Center Back Connection Pressure Gauge 63mm Vacuum Acrylic Lens 1000 Mbar Center Back Connection Pressure Gauge 63mm Vacuum Acrylic Lens 1000 Mbar Center Back Connection Pressure Gauge 63mm Vacuum Acrylic Lens 1000 Mbar Center Back Connection Pressure Gauge 63mm Vacuum Acrylic Lens

Large Image :  1000 Mbar Center Back Connection Pressure Gauge 63mm Vacuum Acrylic Lens

Product Details:
Place of Origin: China
Brand Name: WESEN or Customized
Certification: CE, ISO
Model Number: M04.02.063.N
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~4 Weeks
Payment Terms: T/T
Supply Ability: 20000 Pieces per Month

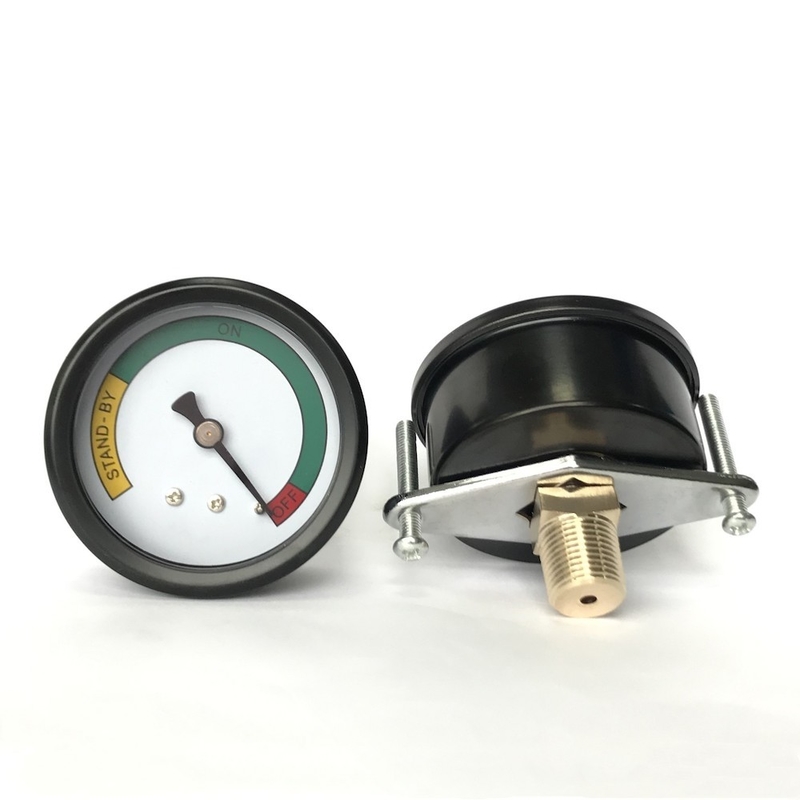

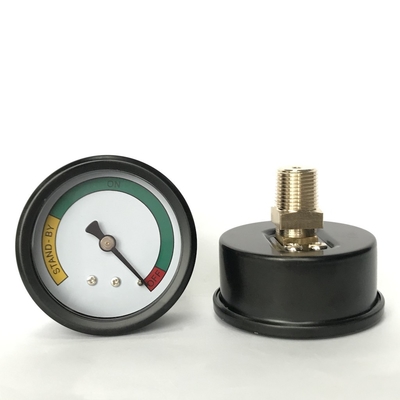

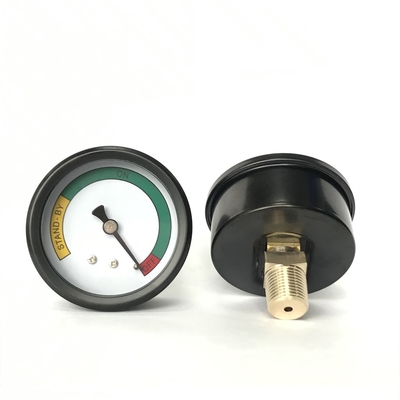

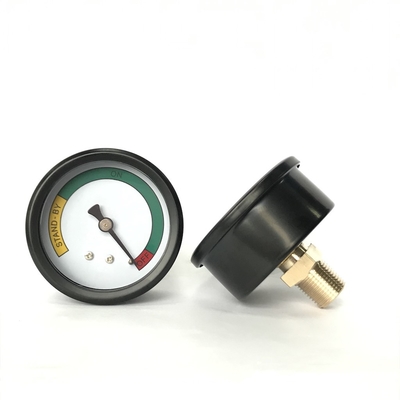

1000 Mbar Center Back Connection Pressure Gauge 63mm Vacuum Acrylic Lens

Description
Deaign: EN837-1 Size: 63mm
Mount: Center Back Pressure Range: -1000 Mbar Or Customized
Case Material: Painted Steel Lens Material: Acrylic
Bourton Tube: Phosphor Bronze Movement: Brass
Dial: Aluminum Accuracy: 2.5
High Light:

1000 mbar back connection pressure gauge

,

63mm back connection pressure gauge

,

Acrylic vacuum pressure gauge

63mm Black Steel Case -1000 mbar No Scale Manometer G 1/4 Back Connection Vacuum Utility Pressure Gauge



Description

Pressure gauge dial sizes range from 11⁄2˝ to 16˝ diameters. Generally, readability requirements, space limitations and required gauge accuracy determine dial size. Accuracies of 0.25% or 0.5% generally have dial sizes of 41⁄2˝ or larger since more dial graduations are required.



Applications

For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.

Pneumatics

Heating and air-conditioning technology

Medical engineering



Special features

Reliable and cost-effective

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Scale ranges up to 0 ... 400 bar



Specifications

Design

EN 837-1

Nominal size

63mm

Accuracy

2.5
Pressure range -1000 mbar (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +60 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

Brass

Pressure element

Brass, C-type or helical type

Bourdon tube

Movement Brass
Dial Aluminium, white, with pointer stop pin
Black/red lettering
Pointer Aluminium
Case Painted Steel
Window Acrylic
Options

Other process connection
Surface mounting flange
Mounting bracket



Dimensions

Model M01.01, lower mount (radial)

1000 Mbar Center Back Connection Pressure Gauge 63mm Vacuum Acrylic Lens 0



Dial Size Dimensions in mm Weight in kg
a b D G h SW
40 9.5 26 39 G1/4 36 14 0.08
50 10 27.5 49 G1/4 45 14 0.10
63 9.5 27.5 62 G1/4 53.5 14 0.13
80 11.5 30 79 G1/2 72 22 0.18
100 11.5 30.5 99 G1/2 83.5 22 0.21
160 15.5 42 160 G1/2 115.5 22 0.85



Model M01.02, back mount (axial)

1000 Mbar Center Back Connection Pressure Gauge 63mm Vacuum Acrylic Lens 1



Dial Size Dimensions in mm Weight in kg
b1 b2 D G SW
40 26 42 39 G1/8 14 0.06
50 29.5 47.5 49 G1/4 14 0.07
63 29 47 62 G1/4 14 0.08
80 32 49 79 G1/4 14 0.11
100 31 49 99 G1/4 14 0.26



Ordering information

Model / Dial size / Pressure Range / Process connection / Options



1000 Mbar Center Back Connection Pressure Gauge 63mm Vacuum Acrylic Lens 2
