Product Details:
|
| Deaign: | EN837-1 | Size: | 63mm |
|---|---|---|---|
| Mount: | Flange | Pressure Range: | 1 MPa Or Customized |
| Case Material: | Painted Steel | Lens Material: | Acrylic |
| Bourton Tube: | Phosphor Bronze | Movement: | Brass |
| Dial: | Aluminum | Accuracy: | 1.5 |
| High Light: | Dual Scale front flange pressure gauge,63mm front flange pressure gauge,pressure gauge 1 mpa |
||

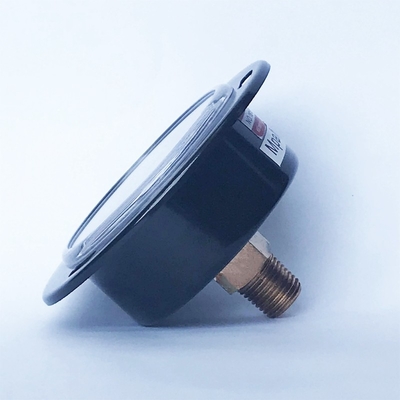

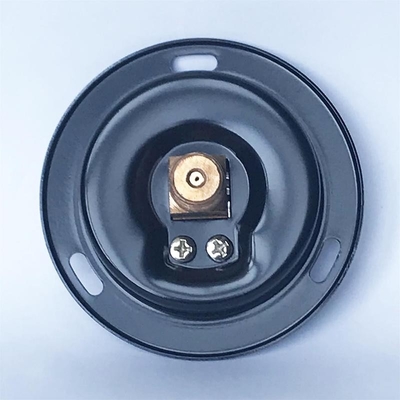

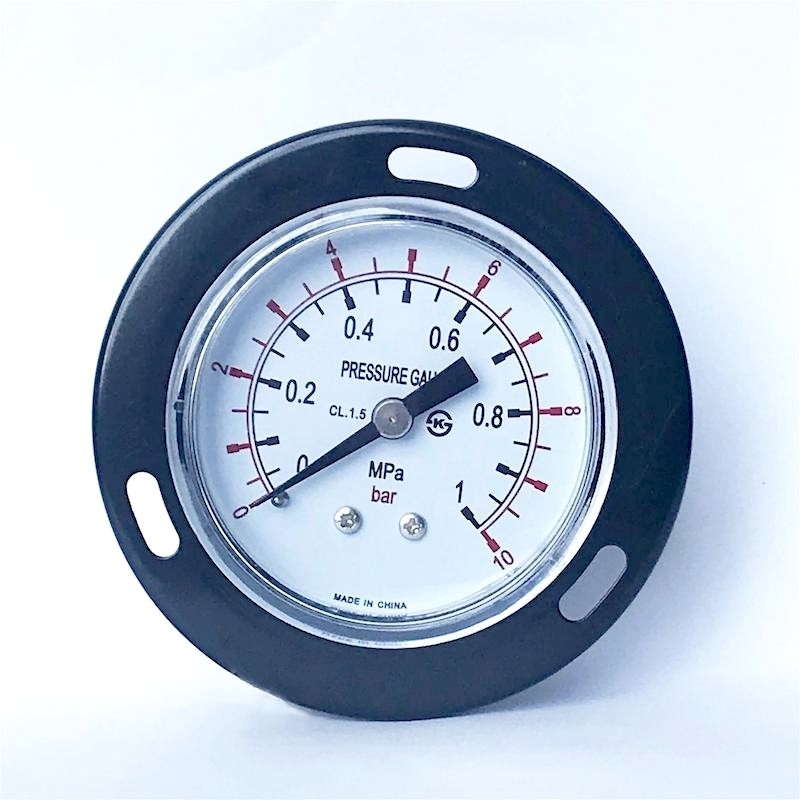

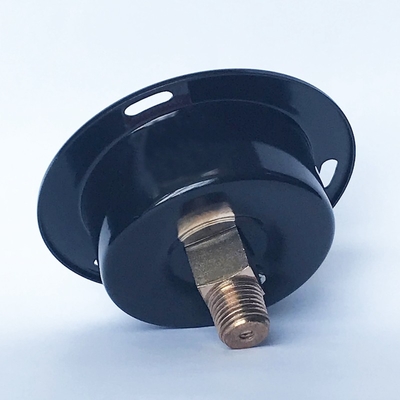

63mm Dual Scale Snap-in Lens Manometer 1 MPa Front Flange Mount Utility Pressure Gauge
Description
The wetted parts of the pressure gauge, the Bourdon tube and socket must be compatible with the process media. If not compatible with the wetted parts of the gauge, corrosion will occur. Corrosion of gauge wetted parts will eventually cause gauge failure and possibly safety issues. When the gauge wetted parts are not compatible with the process media, a diaphragm should be considered.
Applications
For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.
Pneumatics
Heating and air-conditioning technology
Medical engineering
Special features
Reliable and cost-effective
Design per EN 837-1
Nominal size 40, 50, 63, 80, 100 and 160
Scale ranges up to 0 ... 400 bar
|
Design |
EN 837-1 |
|
Nominal size |
63mm |
|
Accuracy |
1.5 |
| Pressure range | 1 MPa (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
|
Permissible temperature |
Ambient: -20 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Brass |
|
Pressure element |
Brass, C-type or helical type
Bourdon tube |
| Movement | Brass |
| Dial | Aluminium, white, with pointer stop pin Black/red lettering |
| Pointer | Aluminium |
| Case | Painted Steel |
| Window | Acrylic |
| Options |
Other process connection |
Dimensions
Model M01.01, lower mount (radial)
| Dial Size | Dimensions in mm | Weight in kg | |||||
| a | b | D | G | h | SW | ||
| 40 | 9.5 | 26 | 39 | G1/4 | 36 | 14 | 0.08 |
| 50 | 10 | 27.5 | 49 | G1/4 | 45 | 14 | 0.10 |
| 63 | 9.5 | 27.5 | 62 | G1/4 | 53.5 | 14 | 0.13 |
| 80 | 11.5 | 30 | 79 | G1/2 | 72 | 22 | 0.18 |
| 100 | 11.5 | 30.5 | 99 | G1/2 | 83.5 | 22 | 0.21 |
| 160 | 15.5 | 42 | 160 | G1/2 | 115.5 | 22 | 0.85 |
Model M01.02, back mount (axial)
| Dial Size | Dimensions in mm | Weight in kg | ||||
| b1 | b2 | D | G | SW | ||
| 40 | 26 | 42 | 39 | G1/8 | 14 | 0.06 |
| 50 | 29.5 | 47.5 | 49 | G1/4 | 14 | 0.07 |
| 63 | 29 | 47 | 62 | G1/4 | 14 | 0.08 |
| 80 | 32 | 49 | 79 | G1/4 | 14 | 0.11 |
| 100 | 31 | 49 | 99 | G1/4 | 14 | 0.26 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
