80mm Back Mount Pressure Gauge 3.5 MPa Phosphor Bronze Dual Scale Pressure Gauge

Certification
China Wesen Technologies (Shanghai) Co., Ltd. certification
China Wesen Technologies (Shanghai) Co., Ltd. certification
I'm Online Chat Now

80mm Back Mount Pressure Gauge 3.5 MPa Phosphor Bronze Dual Scale Pressure Gauge

80mm Back Mount Pressure Gauge 3.5 MPa Phosphor Bronze Dual Scale Pressure Gauge
80mm Back Mount Pressure Gauge 3.5 MPa Phosphor Bronze Dual Scale Pressure Gauge 80mm Back Mount Pressure Gauge 3.5 MPa Phosphor Bronze Dual Scale Pressure Gauge 80mm Back Mount Pressure Gauge 3.5 MPa Phosphor Bronze Dual Scale Pressure Gauge

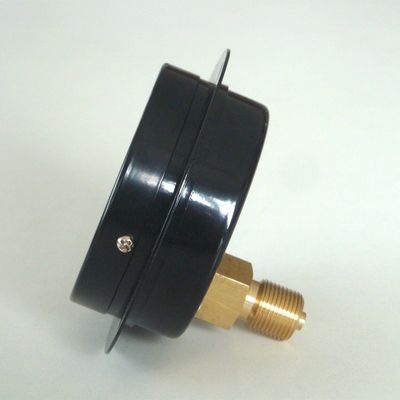

Large Image :  80mm Back Mount Pressure Gauge 3.5 MPa Phosphor Bronze Dual Scale Pressure Gauge

Product Details:
Place of Origin: China
Brand Name: WESEN or Customized
Certification: CE, ISO
Model Number: M04.02.80.N
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~4 Weeks
Payment Terms: T/T
Supply Ability: 20000 Pieces per Month

80mm Back Mount Pressure Gauge 3.5 MPa Phosphor Bronze Dual Scale Pressure Gauge

Description
Deaign: EN837-1 Size: 80mm
Mount: Lower Back Pressure Range: 3.5 MPa Or Customized
Case Material: Painted Steel Lens Material: Glass
Bourton Tube: Phosphor Bronze Movement: Brass
Dial: Aluminum Accuracy: 1.5
High Light:

80mm back mount pressure gauge

,

3.5 MPa back mount pressure gauge

,

Phosphor Bronze dual scale pressure gauge

80mm 3.5 MPa Dual Scale Manometer Brass Lower Back Mount Utility Pressure Gauge



Description

The case and bezel selection of a pressure gauge should be in accordance with the gauge environment which will help determine the material and also the safety requirement. Cases are typically available in ABS Plastic, painted steel, chrome-plated steel, brass, stainless steel, aluminium and phenolic turret.



Applications

For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.

Pneumatics

Heating and air-conditioning technology

Medical engineering



Special features

Reliable and cost-effective

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Scale ranges up to 0 ... 400 bar



Specifications

Design

EN 837-1

Nominal size

80mm

Accuracy

1.5
Pressure range 3.5 MPa (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +60 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

Brass

Pressure element

Brass, C-type or helical type

Bourdon tube

Movement Brass
Dial Aluminium, white, with pointer stop pin
Black/red lettering
Pointer Aluminium
Case Painted Steel
Window Glass
Options

Other process connection
Surface mounting flange
Mounting bracket



Dimensions

Model M01.01, lower mount (radial)

80mm Back Mount Pressure Gauge 3.5 MPa Phosphor Bronze Dual Scale Pressure Gauge 0



Dial Size Dimensions in mm Weight in kg
a b D G h SW
40 9.5 26 39 G1/4 36 14 0.08
50 10 27.5 49 G1/4 45 14 0.10
63 9.5 27.5 62 G1/4 53.5 14 0.13
80 11.5 30 79 G1/2 72 22 0.18
100 11.5 30.5 99 G1/2 83.5 22 0.21
160 15.5 42 160 G1/2 115.5 22 0.85



Model M01.02, back mount (axial)

80mm Back Mount Pressure Gauge 3.5 MPa Phosphor Bronze Dual Scale Pressure Gauge 1



Dial Size Dimensions in mm Weight in kg
b1 b2 D G SW
40 26 42 39 G1/8 14 0.06
50 29.5 47.5 49 G1/4 14 0.07
63 29 47 62 G1/4 14 0.08
80 32 49 79 G1/4 14 0.11
100 31 49 99 G1/4 14 0.26



Ordering information

Model / Dial size / Pressure Range / Process connection / Options



80mm Back Mount Pressure Gauge 3.5 MPa Phosphor Bronze Dual Scale Pressure Gauge 2
