Product Details:
|
| Deaign: | EN837-3 | Size: | 63mm |
|---|---|---|---|
| Mount: | Back, Axial | Pressure Range: | -40...+80 CmH2O Or Customized |
| Case Material: | SUS 304 | Lens Material: | Acrylic |
| Bellows: | SUS 316 | Movement: | SUS 304 |
| Dial: | Aluminum | Accuracy: | 2.5, 1.6 |
| High Light: | Brass Internals back mount pressure gauge,80 cmH2O back mount pressure gauge,Bellows Manometer ss316 pressure gauge |
||

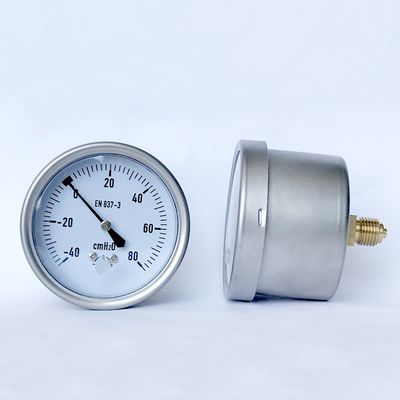

50mm Low Pressure Capsule Pressure Gauge 80 mmH2O Brass Internals Bellows Manometer
Description
Bourdon tube pressure gauges have range limitations with the lowest range being 10 psi. Any time you need to measure below that range you will need a different sensing element. When you need to measure very low pressure or vacuum, low pressure gauges with a capsule design can measure as low as 1” H2O.
A capsule sensing element consists of two corrugated metal discs of brass or stainless steel fused together. A change in pressure will cause the discs to expand or contract, and this motion is transferred to the indicator through a pinion movement mechanism.
You can use this cost-effective gauge to measure low pressure very precisely with accuracies up to ±1.0%. The case size has a direct impact on accuracy. The capsule element is placed vertically inside the case of a low pressure gauge. The lower the measured pressure is, the larger the area of the diaphragm and the larger the case diameter.
Applications
Low pressure gauge for applications in a controlled environment
Ideal for measuring pressure, vacuum in medical, environmental, and laboratory applications for content and filter monitoring
For gaseous, dry and non-aggresive media
Special features
Front zero adjustment
Special connections on request
Scale ranges from 0/10 InWC (25 mbar)
|
Design |
EN 837-3 |
|
Nominal size |
63mm |
|
Accuracy |
± 1.6 of full scale value |
| Pressure range | 80 cmH2O 80 cmWC (customized) |
| Standard ranges |
2”: 0...25 InWC (60 mbar) to 0...250 InWC (600 mbar) 2½”: 0...10 InWC (25 mbar) to 0...250 InWC (600 mbar) or all other equivalent vacuum or combined pressure and vacuum ranges |
| Standard scales |
InH2O/mmH2O oz/sq.in/mmH2O oz/sq.in/InH2O PSI |
|
Pressure limitation |
Steady: full scale value |
|
Permissible temperature |
Ambient: -20 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ± 0.5 %/10 K of the span |
|
Process connection |
SUS 316 |
|
Pressure element |
SUS 316 |
| Movement | SUS 304 |
| Dial | Aluminium, white, black lettering |
| Pointer | Aluminium |
| Case | Black steel, painted steel |
| Window | Acrylic, glass |
| Zero adjustment | At the front |
| Options |
Other process connection |
Dimensions
| Size | Dimension in inches | Weight in LBS | |||||||
| a | b | b1 | b2 | D | G | h | SW | ||
| 2” | - | - | 1.10 | 1.89 | 50 | 1/4”NPT | - | 0.55 | 0.20 |
| 2½” | 0.37 | 1.57 | 1.44 | 2.19 | 63 | 1/4”NPT | 2.00 | 0.55 | 0.44 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
FAQ
Q1. Can I have a sample order for pressure gauge?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 15 days for Sample preparing, 25 working days for mass production.
Q3. Do you have any MOQ limit for pressure gauge order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for pressure gauge?
A: Firstly let us know your requirements or application. Provide Model, Dial size, Pressure range, Process connection, Options.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on pressure gauge product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 12 months to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.04%.
Secondly, during the guarantee period, we will send new manometers with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
