Product Details:
|
| Deaign: | EN837-3 | Size: | 63mm |
|---|---|---|---|
| Mount: | Axial | Pressure Range: | 80 CmH2O Or Customized |
| Case Material: | Chromed Steel | Lens Material: | Acrylic |
| Bellows: | Phosphor Bronze | Movement: | Copper Alloy |
| Dial: | Aluminum, White | Accuracy: | 2.5, 1.6 |
| High Light: | 63mm Low Capsule Pressure Gauge,80 cmH2O Capsule Pressure Gauge,Chromed Steel axial pressure gauge |
||

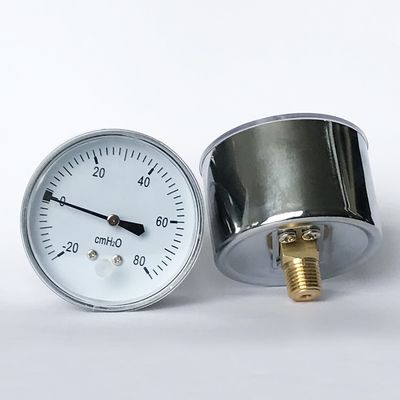

63mm Low Pressure Gauge 80 cmH2O Bellows Manometer Chromed Steel Case Capsule Pressure Gauge
Description
You can use a low pressure gauge for a variety of industries ranging from medical to HVAC to industrial applications (e.g., chemical/petrochemical, power stations, offshore, environmental technology and mechanical engineering). Typical product applications include, but are not limited to: fan and blower monitoring, filter monitoring, low pressure pneumatic systems, vacuum pumps, gas burners, medical suction devices and overpressure monitoring in cleanrooms.
When selecting materials for a low pressure gauge, you can choose brass for most applications but you will want stainless steel for aggressive media applications.
Applications
Low pressure gauge for applications in a controlled environment
Ideal for measuring pressure, vacuum in medical, environmental, and laboratory applications for content and filter monitoring
For gaseous, dry and non-aggresive media
Special features
Front zero adjustment
Special connections on request
Scale ranges from 0/10 InWC (25 mbar)
| Pressure Range | -20~80 cmH2O (customized) |
| Standard ranges |
2”: 0...25 InWC (60 mbar) to 0...250 InWC (600 mbar) 2½”: 0...10 InWC (25 mbar) to 0...250 InWC (600 mbar) or all other equivalent vacuum or combined pressure and vacuum ranges |
| Standard scales |
InH2O/mmH2O oz/sq.in/mmH2O oz/sq.in/InH2O PSI |
|
Pressure limitation |
Steady: full scale value |
|
Permissible temperature |
Ambient: -20 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ± 0.5 %/10 K of the span |
|
Process connection |
Brass |
|
Pressure element |
Brass, copper alloy |
| Movement | Brass |
| Dial | Aluminium, white, black lettering |
| Pointer | Aluminium |
| Case | Chromed steel |
| Window | Acrylic, glass |
| Zero adjustment | At the front |
| Options |
Other process connection |
Dimensions
| Size | Dimension in inches | Weight in LBS | |||||||
| a | b | b1 | b2 | D | G | h | SW | ||
| 2” | - | - | 1.10 | 1.89 | 50 | 1/4”NPT | - | 0.55 | 0.20 |
| 2½” | 0.37 | 1.57 | 1.44 | 2.19 | 63 | 1/4”NPT | 2.00 | 0.55 | 0.44 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
