Product Details:
|
| Deaign: | EN837-1 | Size: | 50mm |
|---|---|---|---|
| Mount: | Axial | Pressure Range: | 6000 Psi Or Customized |
| Case Material: | Stainless Steel | Lens Material: | Glass, Safety Glass |
| Bourton Tube: | Stainless Steel | Movement: | Stainless Steel |
| Dial: | Aluminum | Accuracy: | KL 1.6 |
| High Light: | SS316 Industrial Fuel Pressure Gauge,Axial Fuel Pressure Gauge,Fuel SS316 Pressure Gauge |
||

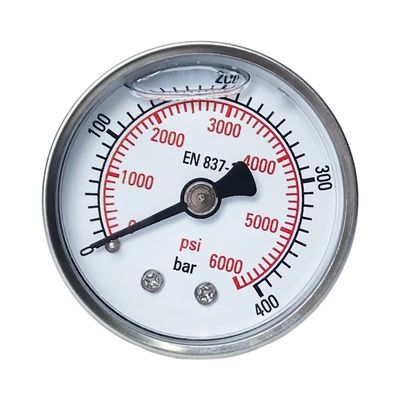

50mm Fuel Pressure Gauge 1/4 NPT SS Pressure Gauge 6000 psi
Description
Bottom line, a common liquid filled pressure gauge is very susceptible to heat, changing its reading with the temperature of the gauge. Imagine that; engine bay temperatures can rise as much as 200-deg. Fahrenheit from cold to hot and we're using a fuel pressure gauge that changes it's reading with temperature... how does this happen? The simple explanation is when the glycerin used to fill the gauge heats up it expands, and being inside a sealed container (the gauge case), the internal case pressure rises. Internal gauge case pressure can increase as much as 1-9 PSI above atmospheric pressure when hot.
Applications
For aggressive gaseous and liquid media that are not highly crystallising, also operates in aggressive environments
Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics
Machine building and general plant construction, Pressure Gauge Hydraulic Press
Special features
Excellent load cycle stability and shock resistance
Design per EN 837-1
Completely from stainless steel
Scale ranges up to 0 ... 1600 bar
|
Design |
EN 837-1 |
|
Nominal size |
50mm |
|
Accuracy |
1.6, 1.0, 2.5 |
|
Pressure range |
6000 psi (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
|
Medium temperature |
Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F] |
|
Ambiet temperature |
Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F] |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Stainless steel, SUS 304, SUS 316 |
|
Pressure element |
Stainless steel, C-type or helical type |
|
Movement |
Stainless steel |
|
Dial |
Aluminium, colorful, without pointer stop pin |
|
Pointer |
Aluminium |
|
Case |
Stainless steel |
|
Ring |
Bayonet ring, stainless steel |
|
Window |
Plastic, glass |
|
Unit |
bar, psi, kg/cm2, kPa, MPa |
|
Thread |
G, BSP, PT, BSPT, NPT |
|
Options |
Other process connection |
Dimensions
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
