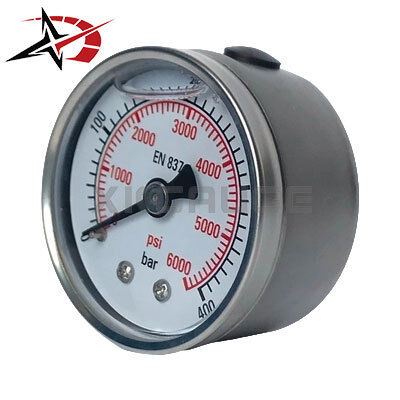

SS316 Axial Fuel Pressure Gauge 6000 PSI 1/4 NPT EN 837-1

Product Overview

This SS316 axial fuel pressure gauge is designed for high-pressure industrial applications up to 6000 PSI (approx. 400 bar). It uses a Bourdon tube mechanical sensing system to deliver reliable pressure readings without electricity.

Built with SS316 stainless steel wetted parts, the gauge offers excellent corrosion resistance for fuel systems, hydraulic systems, and oil pressure monitoring applications.

The axial (rear mount) configuration with 1/4" NPT connection allows easy installation in compact industrial equipment, pump systems, and fuel line assemblies.

Technical Specifications

Applications

• High-pressure fuel line monitoring systems
• Hydraulic power units (HPU)
• Industrial pump stations
• Oil & gas equipment systems
• Engine fuel pressure monitoring
• Industrial test benches
• Heavy-duty mechanical systems

Key Advantages

1. 6000 PSI High Pressure Capability

Suitable for demanding hydraulic and fuel system environments with stable measurement performance.

2. SS316 Corrosion Resistant Structure

Ensures durability in oil, fuel, and industrial chemical environments.

3. Axial Rear Mount Design

Easy integration into compact equipment and control panels.

4. Bourdon Tube Mechanical System

Provides reliable, electricity-free pressure measurement.

5. EN 837-1 Compliance

Manufactured according to international pressure gauge safety and accuracy standards.

Working Principle

The Bourdon tube deforms under internal pressure. This deformation is transmitted through a mechanical linkage to the pointer, displaying real-time pressure values without electronic components.

FAQ

What is a 6000 PSI pressure gauge used for?

It is used in hydraulic systems, fuel lines, and high-pressure industrial applications.

Why use SS316 material?

SS316 provides excellent corrosion resistance for fuel, oil, and hydraulic media.

What is axial mounting?

Axial mounting refers to rear connection installation for compact systems.

Is this gauge suitable for fuel systems?

Yes, it is widely used in industrial fuel and oil pressure monitoring systems.
