Product Details:
|
| Deaign: | EN837-1 | Size: | 100mm |
|---|---|---|---|
| Connection: | Lower | Pressure Range: | 500 Kg/cm2 Or Customized |
| Case Material: | SS 316 | Window: | Safety Glass |
| Bourton Tube: | SS 316 | Movement: | SS 304 |
| Mount: | Thread | Liquid: | Glycerin |
| High Light: | Stainless Steel Glycerin Manometer,100mm Stainless Steel Water Pressure Gauge,Glycerin Liquid Pressure Gauge |
||

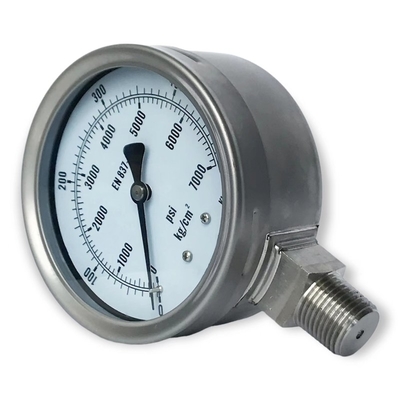

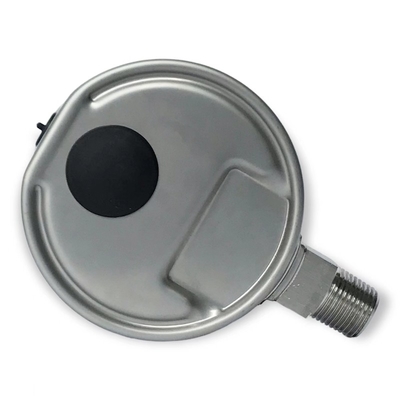

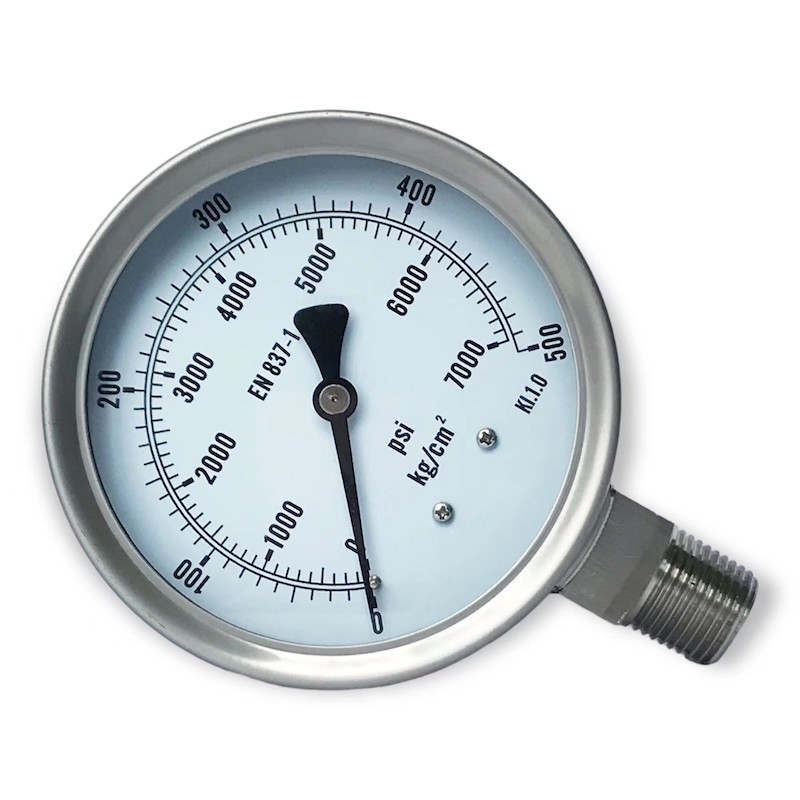

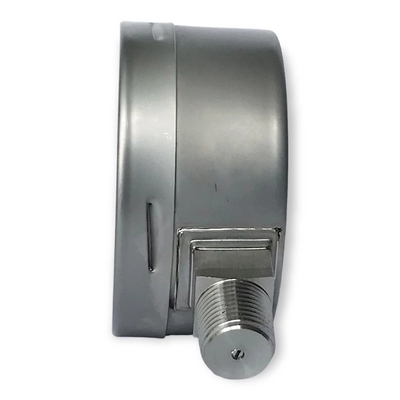

100mm Glycerin Manometer All Stainless Steel Pressure Gauge for Water
Description
A water pressure gauge is a pressure measurement instrument that indicates the water pressure in a system. It is a calibrated pressure indicator connected to a water pipe or tank and translates the force exerted on it into units such as Pascal, bar, Torr, etc. Water pressure gauges are invaluable devices in domestic, commercial, and industrial applications. They are easy to use, are durable, require little maintenance and are long-lasting. They are practical and provide an on-the-spot measurement of pressure, which is crucial information for various water applications.
Applications
For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics
Machine building and general plant construction
Special features
Excellent load cycle stability and shock resistance
Design per EN 837-1
Completely from stainless steel
Scale ranges up to 0 ... 1600 bar
|
Design |
EN 837-1 |
|
Nominal size |
100mm |
|
Accuracy |
1.0 |
| Pressure range | 500 kg/cm2 (customized) pressure gauge for water |
|
Pressure limitation |
Steady: 3/4 x full scale value |
| Medium temperature |
Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F] Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F] Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F] |
|
Ambiet temperature |
Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F] Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F] Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F] |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Stainless steel, SUS 304, SUS 316 |
|
Pressure element |
SS 316L, H-type bourdon tube |
| Movement | SS 304 |
| Dial | Aluminium, white, with pointer stop pin Black and red lettering, dual scale |
| Pointer | Aluminium |
| Case | SS 304 |
| Ring | Bayonet ring, stainless steel |
| Window | PC, glass, safety glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection Surface mounting flange Mounting bracket |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
