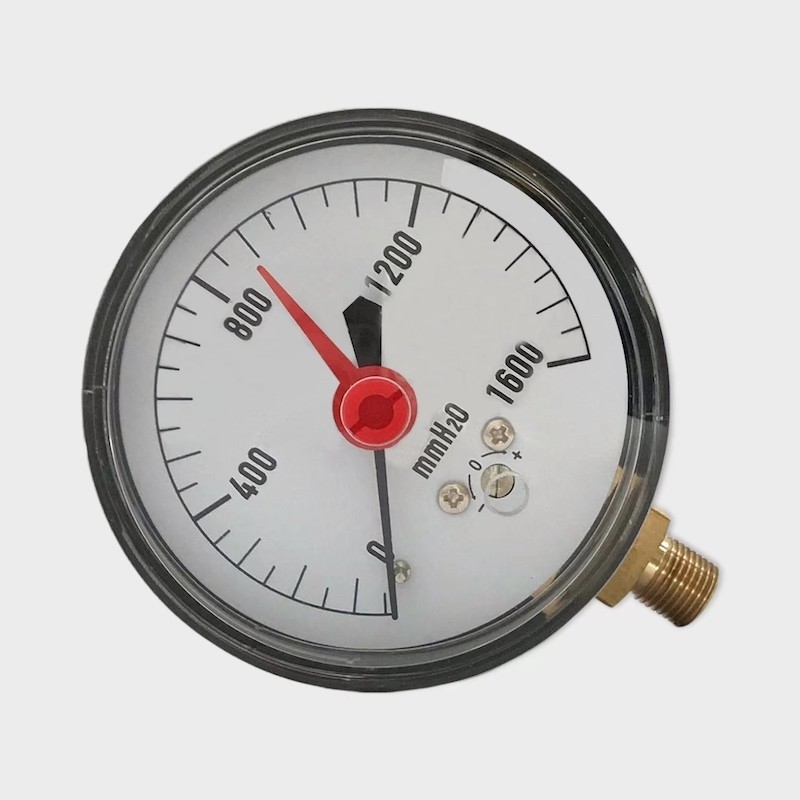

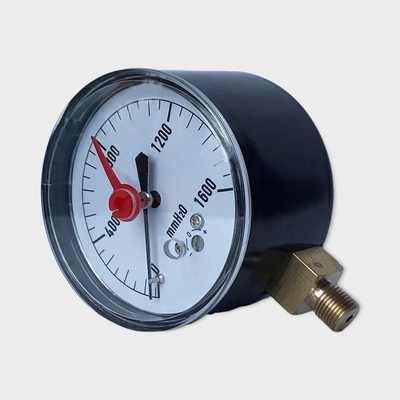

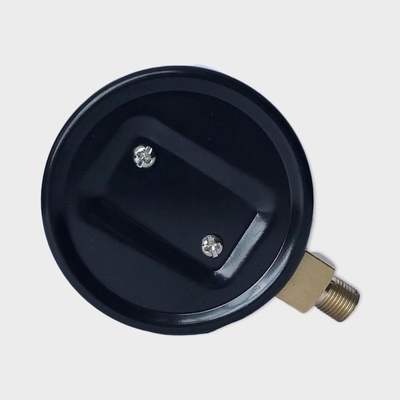

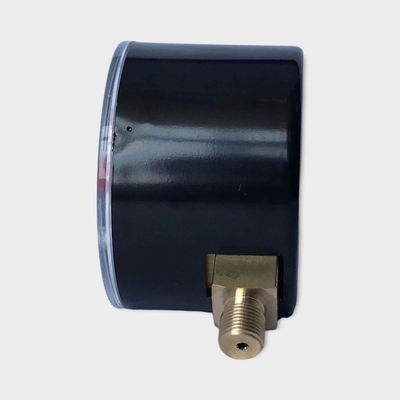

1600mmH2o Steel Case Low Pressure Gauge 63mm Dial

1600mmH2o Steel Case Low Pressure Gauge 63mm Dial
1600mmH2o Steel Case Low Pressure Gauge 63mm Dial 1600mmH2o Steel Case Low Pressure Gauge 63mm Dial 1600mmH2o Steel Case Low Pressure Gauge 63mm Dial 1600mmH2o Steel Case Low Pressure Gauge 63mm Dial

Large Image :  1600mmH2o Steel Case Low Pressure Gauge 63mm Dial

Product Details:
Place of Origin: China
Brand Name: WESEN or Customized
Certification: CE, ISO
Model Number: M08.01.063.N
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~4 Weeks
Payment Terms: T/T
Supply Ability: 20000 Pieces per Month

1600mmH2o Steel Case Low Pressure Gauge 63mm Dial

Description
Deaign: EN837-3 Size: 63mm
Mount: Center Back Pressure Range: 1600 MmH2o Or Customized
Case Material: Black Steel Lens Material: Acrylic
Bellows: Brass Movement: Brass
Dial: Aluminum Accuracy: 2.5, 1.6
High Light:

Steel Case Low Pressure Gauge 63mm

,

1600mmH2o Low Pressure Gauge

,

Low Pressure Capsule Gauge

1600mmHg Low Pressure Gauge 63mm Dial Black Steel Case Wholesale Manufacturer



Description

Our Low Pressure Gauge offers top of the line performance and accuracy for pressure and vacuum applications up to and including 160 in w.c. The gauge constructed from a single beryllium-copper diaphragm affixed to a precision-machined brass plate. This innovative design, together with a high-precision, milled-teeth brass movement and nickel-silver pinion and bearing surface, provide the user with a top of the line low pressure instrument.



Applications

Low pressure gauge for applications in a controlled environment

Ideal for measuring pressure, vacuum in medical, environmental, and laboratory applications for content and filter monitoring

For gaseous, dry and non-aggresive media



Special features

Front zero adjustment

Special connections on request

Scale ranges from 0/10 InWC (25 mbar)



Specifications

Design

EN 837-3

Nominal size

63mm

Accuracy

± 1.6 of full scale value

Pressure range

1600mmH2o (customized)

Standard ranges

2”: 0...25 InWC (60 mbar) to 0...250 InWC (600 mbar)

2½”: 0...10 InWC (25 mbar) to 0...250 InWC (600 mbar) or all other equivalent vacuum or combined pressure and vacuum ranges

Standard scales

InH2O/mmH2O

oz/sq.in/mmH2O

oz/sq.in/InH2O

PSI

Pressure limitation

Steady: full scale value
Fluctuating: full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +100 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ± 0.5 %/10 K of the span

Process connection

Brass

Pressure element

Brass

Movement

Brass

Dial

Aluminium, white, black lettering

Pointer

Aluminium

Case

Black steel, painted steel

Window

Acrylic

Zero adjustment

At the front

Options

Other process connection
Surface mounting flange
Mounting bracket



Dimensions

1600mmH2o Steel Case Low Pressure Gauge 63mm Dial 0

Size

Dimension in inches

Weight in LBS

a

b

b1

b2

D

G

h

SW

2”

-

-

1.10

1.89

50

1/4”NPT

-

0.55

0.20

2½”

0.37

1.57

1.44

2.19

63

1/4”NPT

2.00

0.55

0.44



Ordering information

Model / Dial size / Pressure Range / Process connection / Options



1600mmH2o Steel Case Low Pressure Gauge 63mm Dial 1
