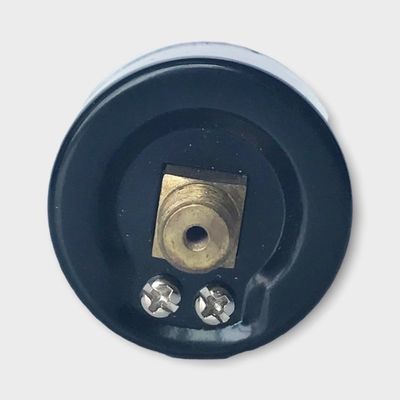

40mm Back Mounted Utility Pressure Gauge 2 Bar Analog Manometer

Certification
China Wesen Technologies (Shanghai) Co., Ltd. certification
China Wesen Technologies (Shanghai) Co., Ltd. certification
I'm Online Chat Now

40mm Back Mounted Utility Pressure Gauge 2 Bar Analog Manometer

40mm Back Mounted Utility Pressure Gauge 2 Bar Analog Manometer
40mm Back Mounted Utility Pressure Gauge 2 Bar Analog Manometer 40mm Back Mounted Utility Pressure Gauge 2 Bar Analog Manometer 40mm Back Mounted Utility Pressure Gauge 2 Bar Analog Manometer

Large Image :  40mm Back Mounted Utility Pressure Gauge 2 Bar Analog Manometer

Product Details:
Place of Origin: China
Brand Name: WESEN or Customized
Certification: CE, ISO
Model Number: M04.02.040.N
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~4 Weeks
Payment Terms: T/T
Supply Ability: 20000 Pieces per Month

40mm Back Mounted Utility Pressure Gauge 2 Bar Analog Manometer

Description
Deaign: EN837-1 Size: 40mm
Mount: Center Back Mount Pressure Range: 2 Bar Or Customized
Case Material: Painted Steel Lens Material: Acrylic
Bourton Tube: Phosphor Bronze Movement: Brass
Dial: Aluminum Accuracy: 2.5
High Light:

2 Bar Analog Manometer

,

40mm Back Mounted Utility Pressure Gauge

,

Utility Pressure Analog Manometer

40mm Back Mounted Pressure Gauge 2 bar Manometer Analog



Description

How do pressure gauges work? The gauge utilises an inner tube that is connected to a gear and shaft assembly that work together to move a pointer. When the pressure within the tube surges the tube uncoils slightly. As the tube uncoils, the motion triggers the gear and shaft system that moves the pointer on the gauge. The amount of uncoiling movement that occurs is relative to the pressure within the tube. This movement then informs the pointer, giving you a pressure reading.



Applications

For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.

Pneumatics

Heating and air-conditioning technology

Medical engineering



Special features

Reliable and cost-effective

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Scale ranges up to 0 ... 400 bar



Specifications

Design

EN 837-1

Nominal size

40mm

Accuracy

2.5
Pressure range 2 bar (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +60 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

Brass

Pressure element

Brass, C-type or helical type

Bourdon tube

Movement Brass
Dial Aluminium, white, with pointer stop pin
Black/red lettering
Pointer Aluminium
Case Painted Steel
Window Acrylic
Options

Other process connection
Surface mounting flange
Mounting bracket



Dimensions

lower mount (radial)

40mm Back Mounted Utility Pressure Gauge 2 Bar Analog Manometer 0



Dial Size Dimensions in mm Weight in kg
a b D G h SW
40 9.5 26 39 G1/4 36 14 0.08
50 10 27.5 49 G1/4 45 14 0.10
63 9.5 27.5 62 G1/4 53.5 14 0.13
80 11.5 30 79 G1/2 72 22 0.18
100 11.5 30.5 99 G1/2 83.5 22 0.21
160 15.5 42 160 G1/2 115.5 22 0.85



back mount (axial)

40mm Back Mounted Utility Pressure Gauge 2 Bar Analog Manometer 1



Dial Size Dimensions in mm Weight in kg
b1 b2 D G SW
40 26 42 39 G1/8 14 0.06
50 29.5 47.5 49 G1/4 14 0.07
63 29 47 62 G1/4 14 0.08
80 32 49 79 G1/4 14 0.11
100 31 49 99 G1/4 14 0.26



Ordering information

Model / Dial size / Pressure Range / Process connection / Options



40mm Back Mounted Utility Pressure Gauge 2 Bar Analog Manometer 2
